Cisco C9200L-24T-4X User Manual

23-inch brackets
(RACK-KIT-T1=)
319-inch brackets
(RACK-KIT-T1=)
1
24-inch brackets
(RACK-KIT-T1=)
4ETSI brackets
(RACK-KIT-T1=)
2
Attaching the Rack-Mount Brackets
Before you begin
You can use the minimum recommended number of two screws for installing the rack-mount bracket to each
side of the switch. If required, while mounting, you can use the additional four screws provided in the accessory
kit.
Procedure
Use two Phillips flat-head screws to attach the long side of the bracket to each side of the switch for the front-
or rear-mounting positions.
The following illustration shows a C9200L switch. C9200 switches follow the same method for installing the
rack mount bracket.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
22
Installing the Switch
Attaching the Rack-Mount Brackets

Cisco C9200L-24T-4X Specifications

General

Model	C9200L-24T-4X
Device Type	Switch
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
DRAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Ports	24 x 10/100/1000
Uplink Interfaces	4 x 10 Gigabit SFP+
MAC Address Table Size	16, 000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, BGP, EIGRP, RIP
Remote Management Protocol	SNMP 1, SNMP 2, SNMP 3, RMON, SSH, Telnet, HTTP, HTTPS
Features	VLAN support, Quality of Service (QoS), ACL support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae
Voltage Required	AC 120/230 V (50 - 60 Hz)

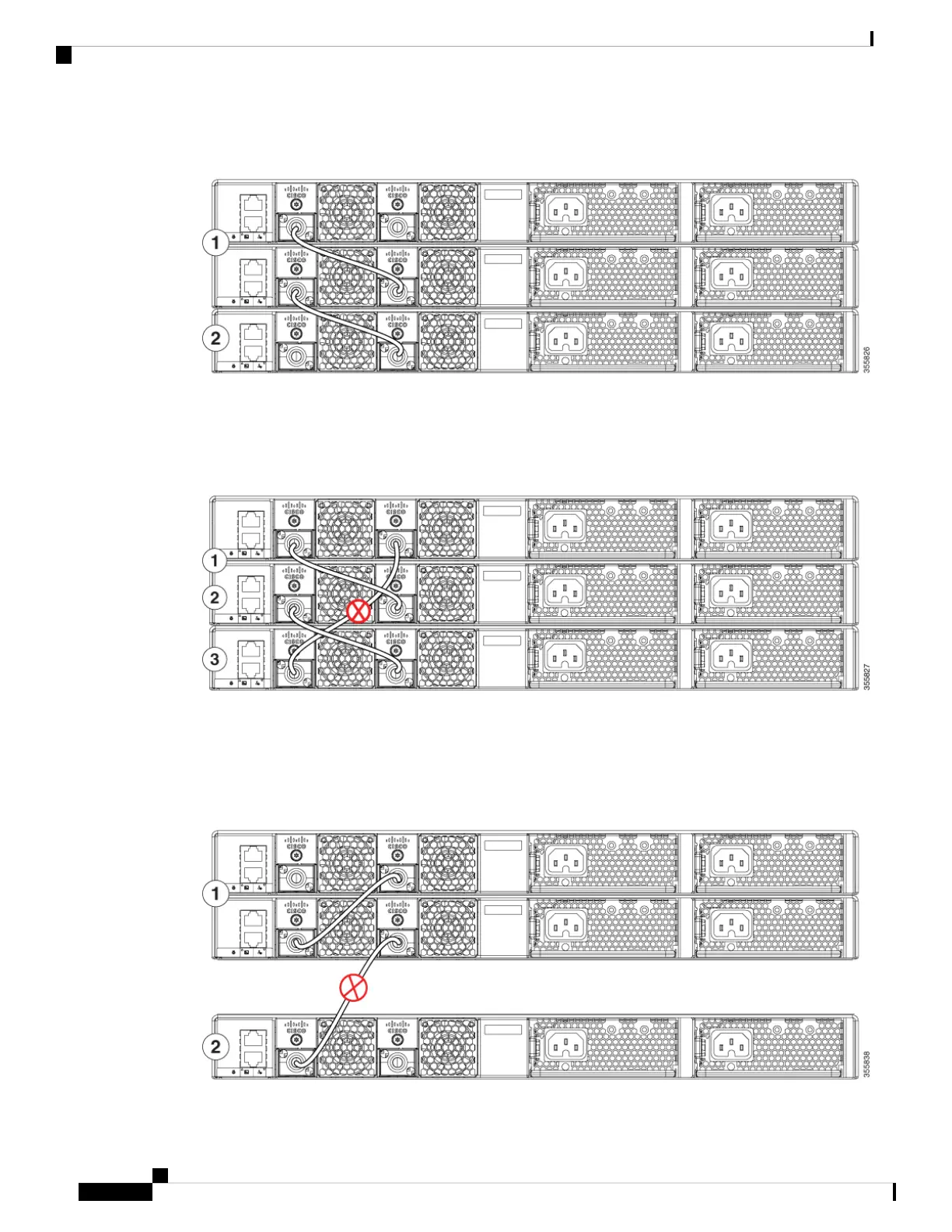

Stacking	Stackable
Operating Temperature	32 to 104°F (0 to 40°C)
