Step 4 Press the release latch at the right side of the power supply module inward and slide the power supply out.
Do not leave the power-supply slot open for more than 90 seconds while the switch is operating.
Caution
This unit might have more than one power supply connection. All connections must be removed to
de-energize the unit. Statement 1028
Warning
Step 5 Insert the new power supply into the power-supply slot, and gently push it into the slot. When correctly
inserted, the power supplies (excluding the power cord retainer) are flush with the switch rear panel.

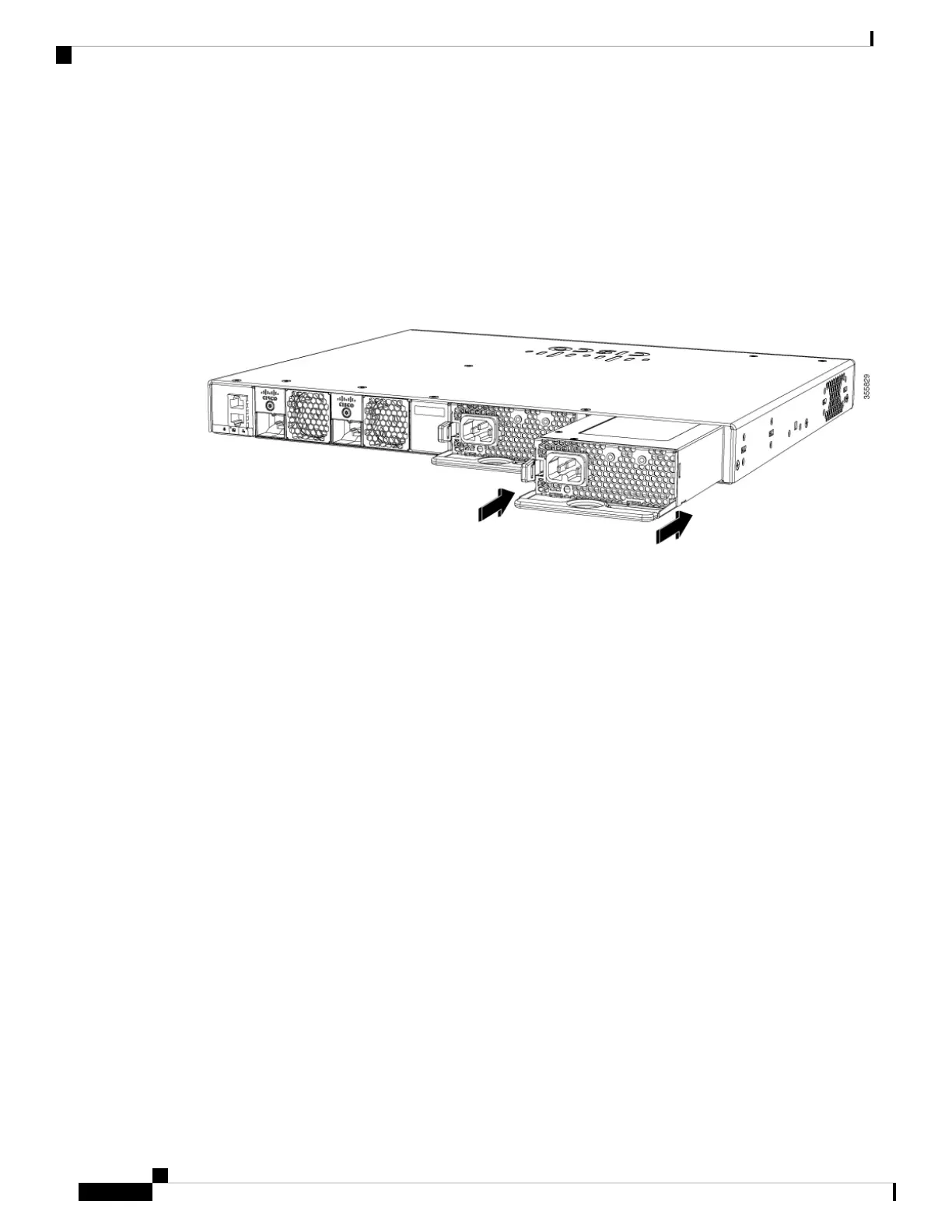

Figure 29: Inserting the AC-Power Supply in the Switch
Step 6 (Optional) Install the power cord retainer as follows:
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
44
Installing a Power Supply Unit
Installing or Replacing an AC Power Supply Module

Cisco C9200L-24T-4X Specifications

General

Model	C9200L-24T-4X
Device Type	Switch
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
DRAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Ports	24 x 10/100/1000
Uplink Interfaces	4 x 10 Gigabit SFP+
MAC Address Table Size	16, 000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, BGP, EIGRP, RIP
Remote Management Protocol	SNMP 1, SNMP 2, SNMP 3, RMON, SSH, Telnet, HTTP, HTTPS
Features	VLAN support, Quality of Service (QoS), ACL support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae
Voltage Required	AC 120/230 V (50 - 60 Hz)
Stacking	Stackable
Operating Temperature	32 to 104°F (0 to 40°C)
