Cisco C9200L-24T-4X User Manual

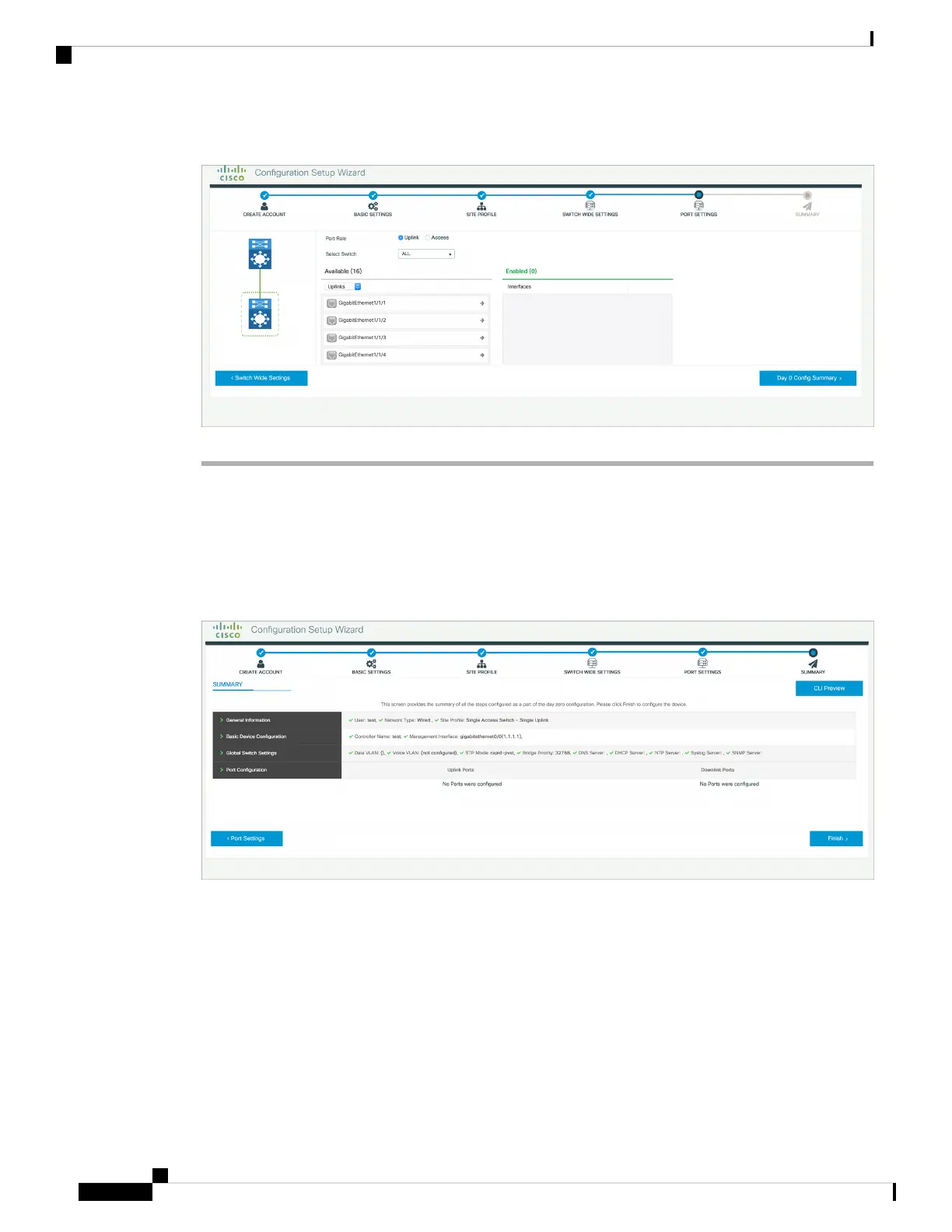

Figure 44: Port Settings
What to do next
• Click Day 0 Config Summary to verify your setup.
• Click Finish.
Figure 45: Day 0 Config Summary
Configuring the Switch Using the CLI
Accessing the CLI Through the Console Port
You can access the CLI on a configured or unconfigured switch by connecting the RJ-45 console port or USB
console port of the switch to your PC or workstation and accessing the switch through a terminal emulation
program.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
62
Configuring the Switch
Configuring the Switch Using the CLI

Cisco C9200L-24T-4X Specifications

General

Model	C9200L-24T-4X
Device Type	Switch
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
DRAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Ports	24 x 10/100/1000
Uplink Interfaces	4 x 10 Gigabit SFP+
MAC Address Table Size	16, 000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, BGP, EIGRP, RIP
Remote Management Protocol	SNMP 1, SNMP 2, SNMP 3, RMON, SSH, Telnet, HTTP, HTTPS
Features	VLAN support, Quality of Service (QoS), ACL support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae
Voltage Required	AC 120/230 V (50 - 60 Hz)
Stacking	Stackable
Operating Temperature	32 to 104°F (0 to 40°C)
