Cisco C9200L-24T-4X User Manual

APPENDIX B
Switch LEDs
• LEDs, on page 75
• Console LED, on page 75
• System LED, on page 76
• MASTER LED, on page 76
• STACK LED, on page 77
• PoE LED, on page 78
• Port LEDs and Modes, on page 78
• Beacon LED, on page 80
• RJ-45 Console Port LED, on page 81
• Fan LED, on page 81
• Uplink Port LEDs, on page 81
LEDs
You can use the switch LEDs to monitor switch activity and its performance.

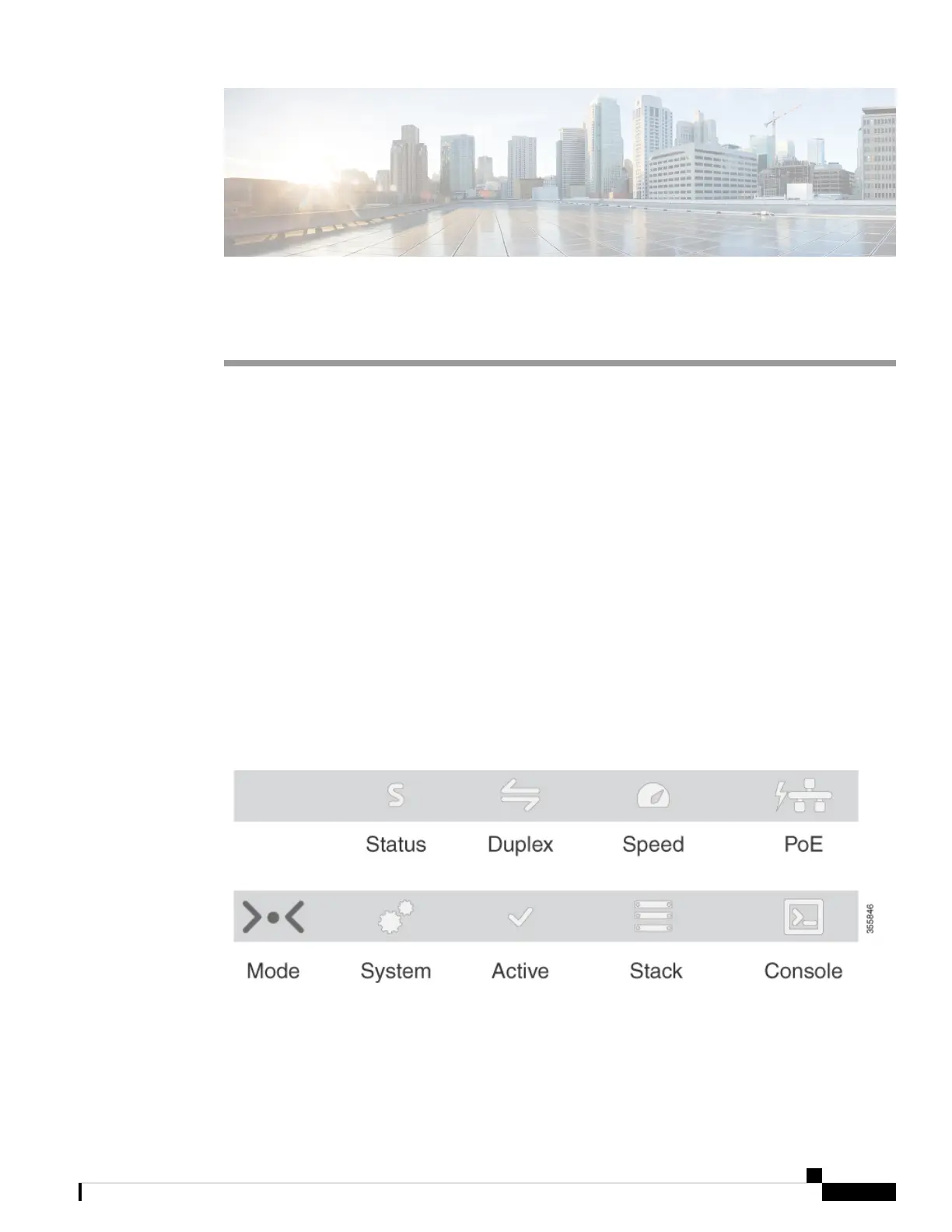

Figure 46: Switch Front Panel LEDs
Console LED
The console LED indicates whether the USB console port or the bluetooth console is enabled.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
75

Cisco C9200L-24T-4X Specifications

General

Model	C9200L-24T-4X
Device Type	Switch
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
DRAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Ports	24 x 10/100/1000
Uplink Interfaces	4 x 10 Gigabit SFP+
MAC Address Table Size	16, 000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, BGP, EIGRP, RIP
Remote Management Protocol	SNMP 1, SNMP 2, SNMP 3, RMON, SSH, Telnet, HTTP, HTTPS
Features	VLAN support, Quality of Service (QoS), ACL support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae
Voltage Required	AC 120/230 V (50 - 60 Hz)
Stacking	Stackable
Operating Temperature	32 to 104°F (0 to 40°C)
