Cisco Catalyst 2950 Getting Started Guide

14
Connect to the Switch Ports
This section describes how to connect to the fixed switch ports and to the SFP and GBIC module ports.
Connect to 10/100 and 10/100/1000 Ports
Follow these steps:
Connect to 100BASE-FX and 1000BASE-SX Ports
Follow these steps:

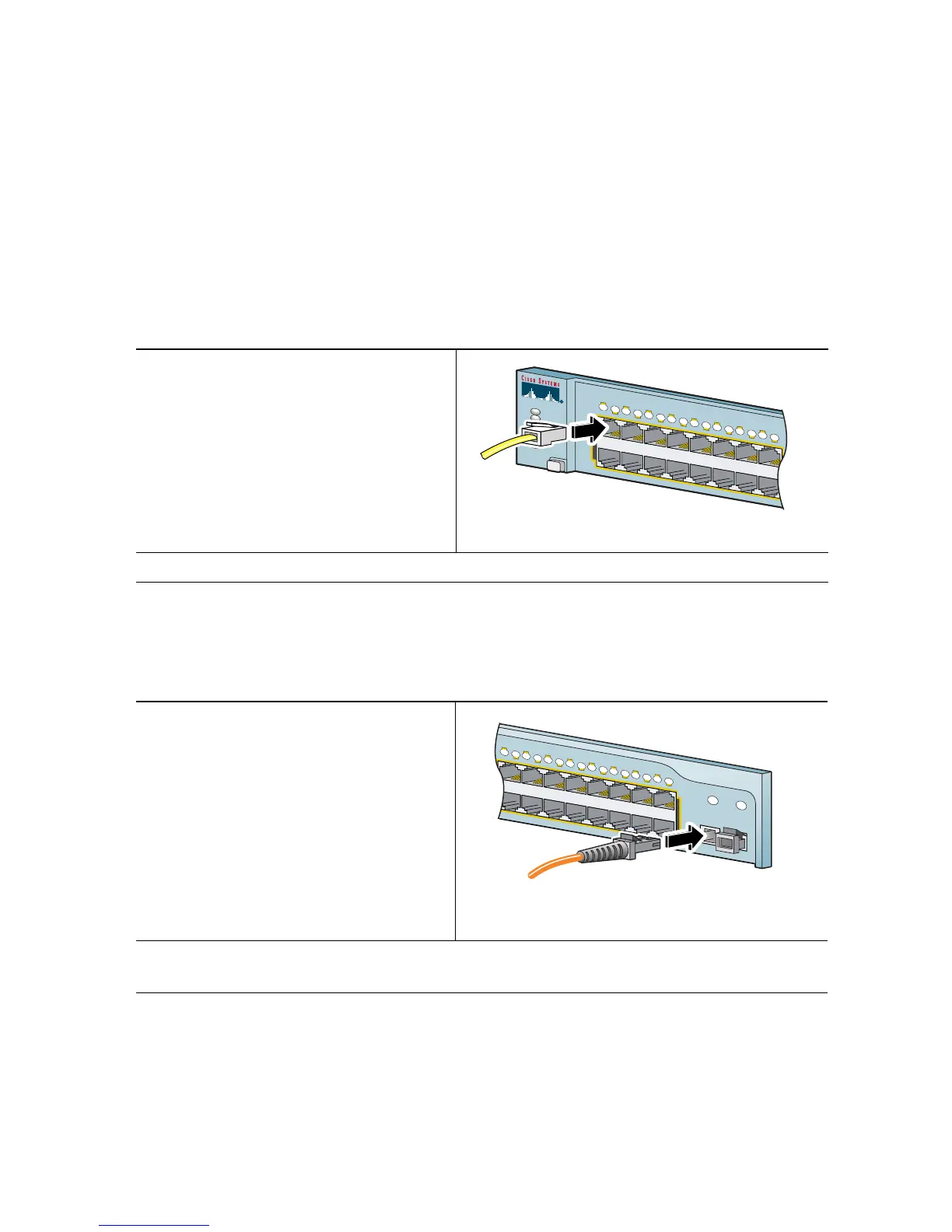

Step 1
When you connect to servers,
workstations, IP phones, wireless
access points, and routers, insert a
straight-through, twisted four-pair,
Category 5 cable in a switch 10/100 or
10/100/1000 port. Use a crossover,
twisted four-pair, Category 5 cable
when you connect to other switches,
hubs, or repeaters.
Step 2
Insert the other cable end into an RJ-45 connector on the other device.
Step 1
Remove the dust plugs from the
100BASE-FX or 1000BASE-SX port
and the rubber caps from the MT-RJ
patch cable. Store them for future use.
Step 2
Insert an appropriate cable into a 100BASE-FX or 1000BASE-SX port. Insert the
other cable end into an SC or ST port on the other device.
S
Y
S
T
R
P
S
S
T
A
T
U
T
IL
D
U
P
L
X
S
P
E
E
D
M
O
D
E
1
X
2
X
1
5
X
1
6
X
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
10/100 or 10/100/1000 ports
100Base-FX
Catalyst 2950
SERIES
26
25
1
X
2
X
1
5
X
1
6
X
1
2
3
4 5
6
7
8
9
10
11
12
13
14
15
16
100BASE-FX or 1000BASE-SX ports

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
