Attaching the Brackets

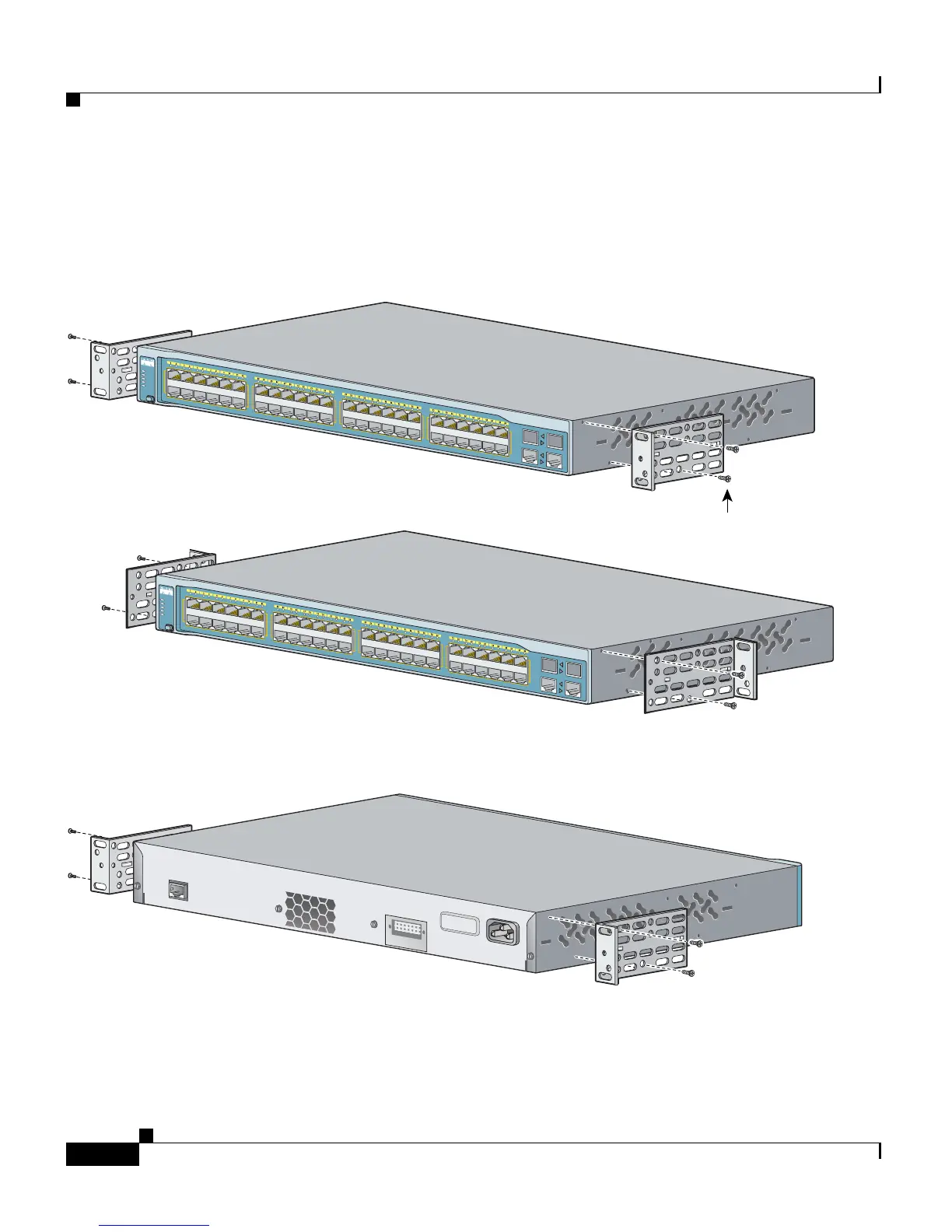

Use four Phillips flat-head screws to attach the long side of the brackets to
Catalyst 2960 switches in one of three mounting positions.
CONSOLE
Front-mounting position
Mid-rack-mounting position (telco rack)
Rear-mounting position
154191
Catalyst 2960
SERIES
SYST
RPS
STAT
DUPLX
SPEED
M
O
D
E
11X
2X
1X
11X
14X
12X
1
3X
23X
24X
25X
26X
37X
39X
36X
38X
47X
48X
1
2
Catalyst 2960
SERIES
SYST
RPS
STAT
DUPLX
SPEED
M
O
D
E
11X
2X
1X
11X
14X
12X
13X
23X
24X
25X
26X
37X
39X
36X
38X
47X
48X
1
2
Number-8 Phillips
flat-head screws
