Chapter 1 Product Overview
Switch Module Features Overview

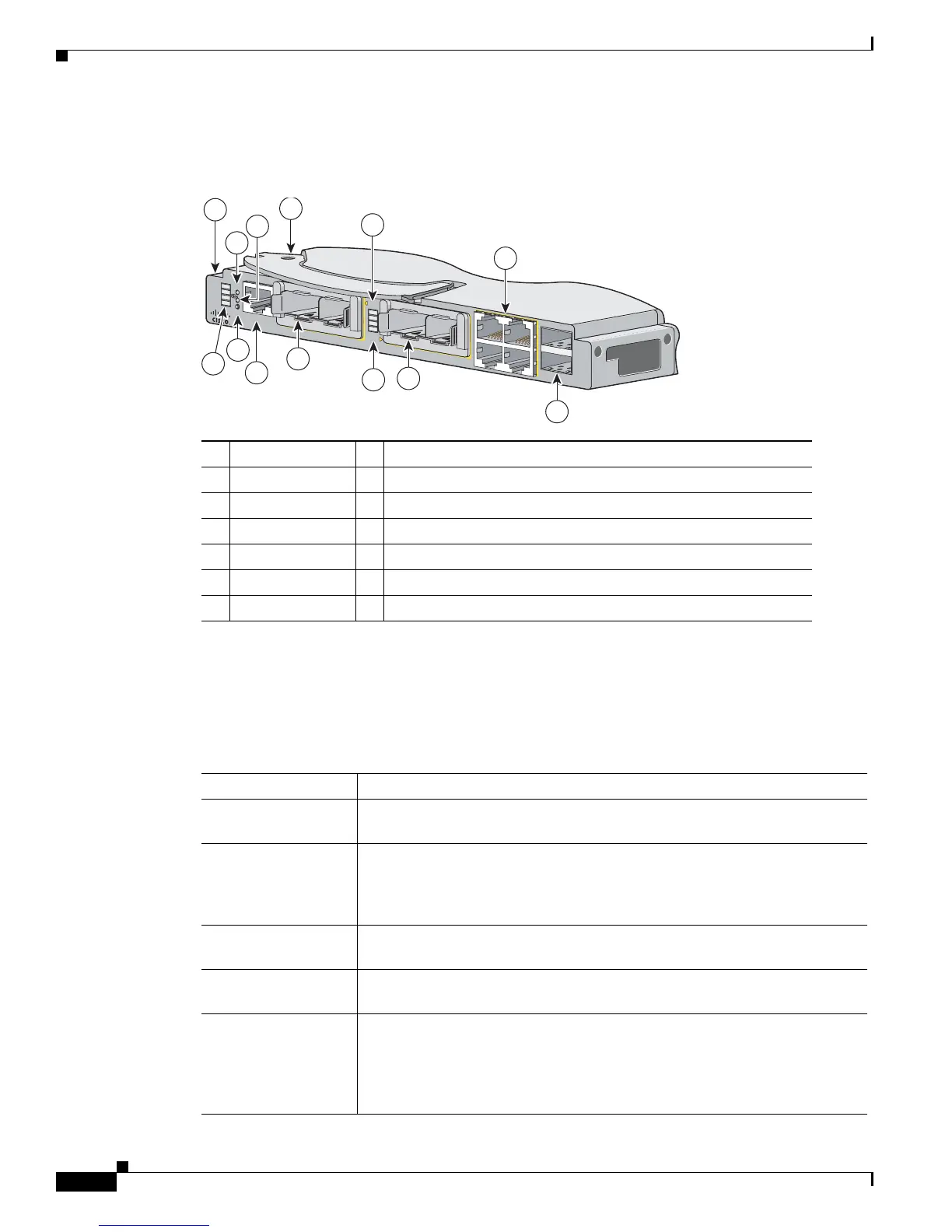

Figure 1-1 shows the Cisco Catalyst Blade Switch 3120 for HP switch module.
Figure 1-1 The Catalyst Blade Switch 3120 for HP
Table 1-1 describes the Cisco Catalyst Blade Switch 3120 for HP ports. Each external port has an
associated LED.
1 Switch module 8 LEDs for ports 19 and 20 or for the Gigabit-Ethernet slot 1
2 UID
1
LED
1. UID= unit identifier.
9 Gigabit Ethernet uplink ports 23 to 26 and port LEDs
3 Health LEDs 10 Gigabit Ethernet ports 19 and 20 or 10-Gigabit Ethernet slot 1
4 System LEDs
2
2. SYST, STCK, MSTR, MMBR.
11 LEDs for ports 21 and 22 and for the 10-Gigabit Ethernet slot 2
5 Mode button 12 Gigabit Ethernet ports 21 and 22 or 10-Gigabit Ethernet slot 2
6 Console port 13 StackWise Plus ports
7 Release latch
203651
24
x
S
F
P
1
9
-
20
19-20
21
-
22
S
Y
S
T
S
T
C
K
M
S
T
R
M
M
B
R
C
ON
S
OLE
WS-
C
B
S31
20G-S
MOD
E
UID
SFP
2
1-
22
23
x
2
6
x
ST
K
1
ST
K 2
7
4
3
1
2
5
6
9
8
10
13
11
12
Ta b l e 1-1 Cisco Catalyst Blade Switch 3120 for HP Port Descriptions
Port Description
Ports 1 to 16 Internal Gigabit Ethernet 1000BASE-X downlink ports that connect to the
blade enclosure.
Ports 17 to 18 Internal cross-connection ports that you can use to connect to a second switch
in the blade enclosure through a backplane connector. You can configure
these ports by using the Cisco IOS CLI
1
. However, if the blade switches are
stacked, these ports are disabled.
Ports 19 to 22 10-Gigabit Ethernet module slots for use with the Cisco TwinGig Converter
Modules and Cisco X2 transceiver modules.
Ports 23 to 26 External 10/100/1000BASE-T copper Gigabit Ethernet uplink ports that
support auto-MDIX and autonegotiation.
Internal 100BASE-T
Ethernet port
The Ethernet management port (Fa0) is used only for switch module
management traffic, not for data traffic. It is connected to the
Onboard
Administrator through the blade enclosure backplane connector.
Traffic
to and from this port is isolated from the switch ports. This port only
supports autonegotiation with 100 Mb/s and full-duplex mode.
