Cisco Catalyst 3120 Hardware Installation Guide

B-7
Cisco Catalyst Blade Switch 3120 for HP Hardware Installation Guide
OL-12246-01
Appendix B Connector and Cable Specifications
Cable and Adapter Specifications
Four Twisted-Pair Cable Pinouts for 1000BASE-T Ports

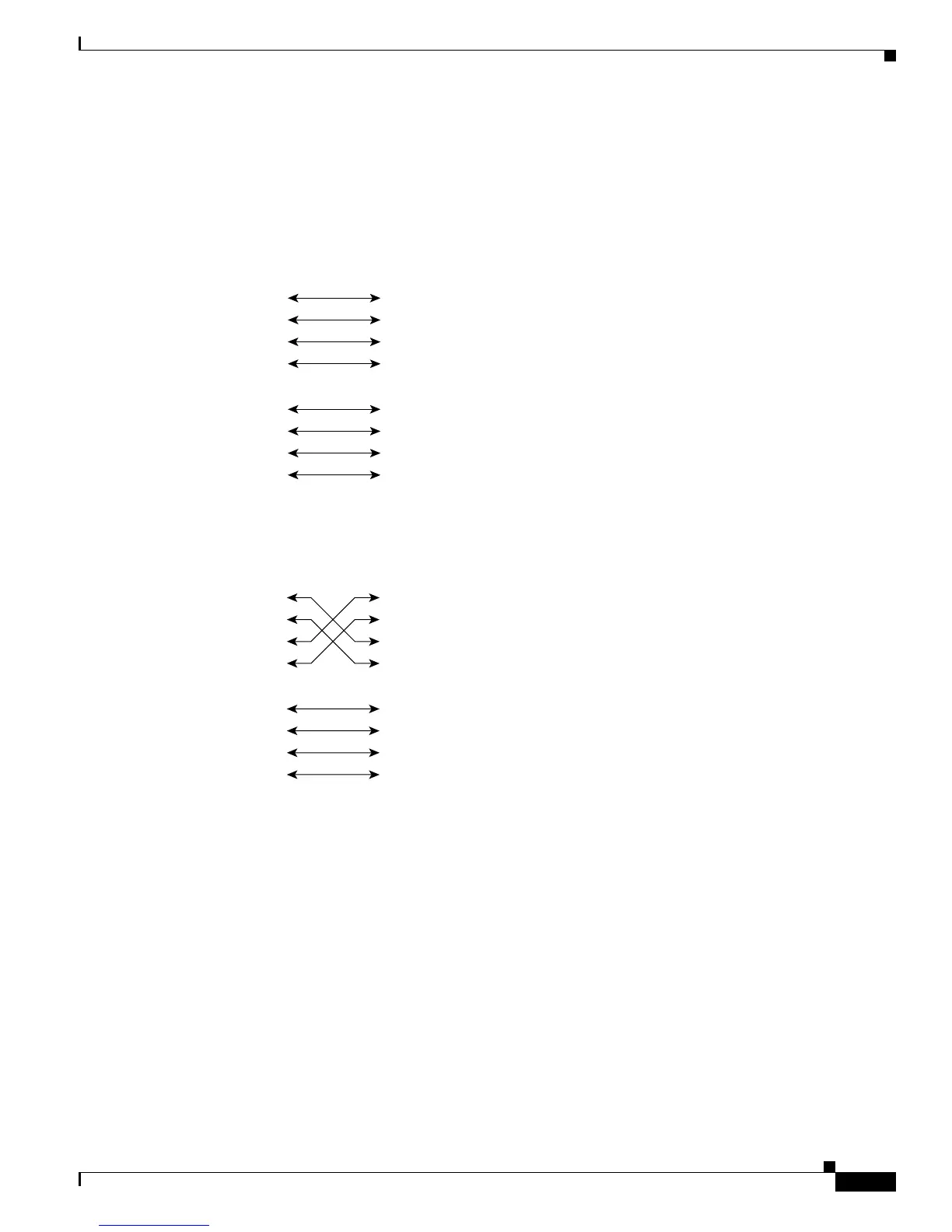

Figure B-8 and Figure B-9 show the schematics of four twisted-pair cables for 10/100/1000 ports on
the switch module.
Figure B-8 Four Twisted-Pair Straight-Through Cable Schematic for 10/100/1000 Ports
Figure B-9 Four Twisted-Pair Crossover Cable Schematics for 10/100/1000 Ports
1 TPO+
2 TPO-
3TP1+
6TP1-
1 TP1+
Switch Router or PC
2 TP1-
3 TPO+
6 TPO-
4TP2+
5TP2-
7TP3+
8TP3-
4 TP3+
5 TP3-
7 TP2+
8 TP2-
65272
1 TPO+
2 TPO-
3TP1+
6TP1-
1TP0+
Switch Switch
2TP0-
3TP1+
6TP1-
4TP2+
5TP2-
7TP3+
8TP3-
4TP2+
5TP2-
7TP3+
8TP3-
65274
