Chapter 1 Product Overview
Rear Panel

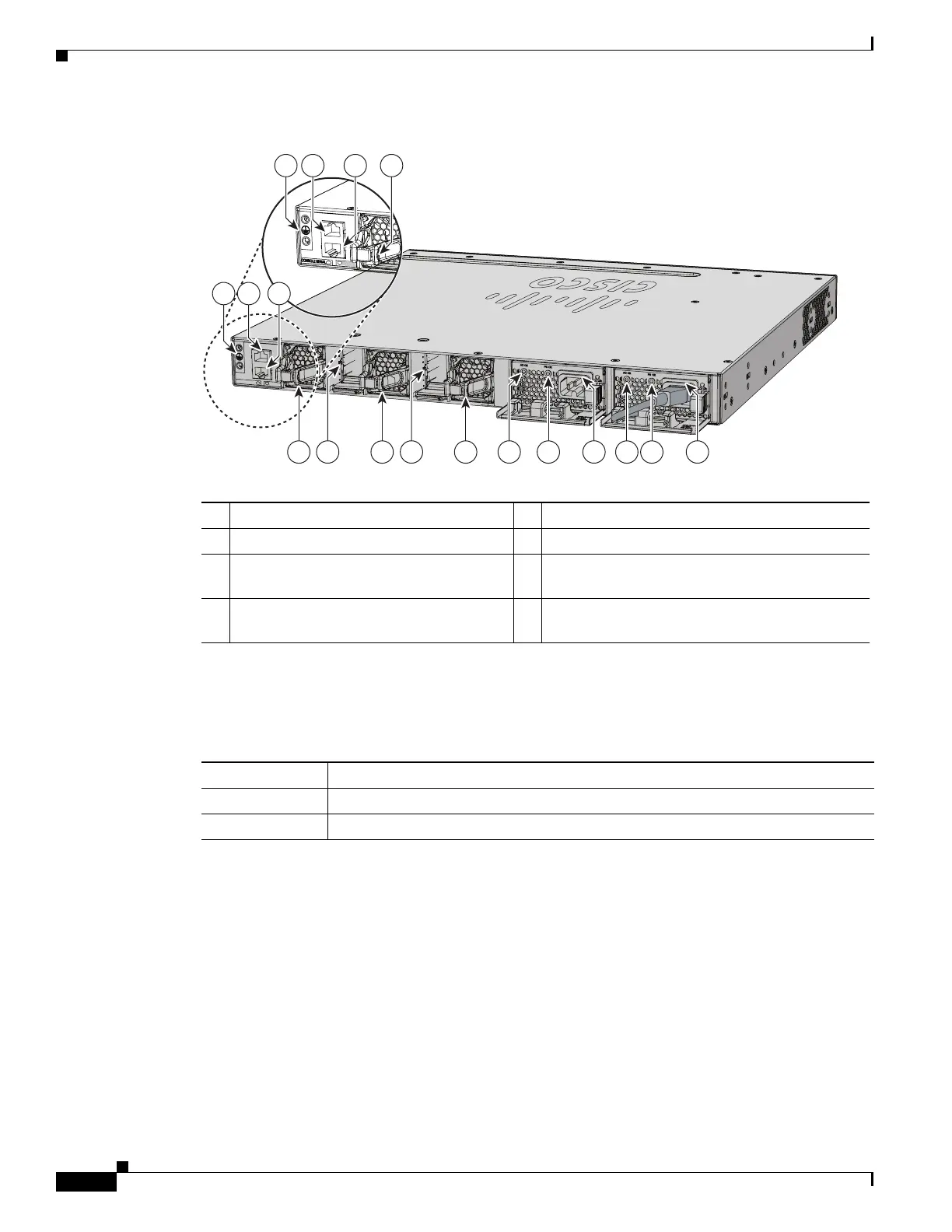

Figure 1-7 Catalyst 3650 Switch Rear Panel
RJ-45 Console Port LED
StackWise Ports
StackWise ports are used to connect switches in StackWise stacking configurations. StackWise cables
are used to connect the StackWise ports for stacking. For more information on StackWise cables, see the
“StackWise Cables” section on page B-5.
A StackWise adapter must be installed in the StackWise port to enable stacking. StackWise adapter
blanks installed in the StackWise ports is the default setup. For more information on StackWise adapters
and StackWise adapter blanks, see the “StackWise Adapters” section on page B-6 and the “StackWise
Adapter Blanks” section on page B-7.
1 Ground connector 5 StackWise port connector
2 CONSOLE (RJ-45 console port) 6 AC OK (input) status LED
3 MGMT (RJ-45 10/100/1000 management
port)
7 PS OK (output) status LED
4 Fan module 8 Power supply modules (AC power supply
modules shown)
Table 1-9 RJ-45 Console Port LED
Color RJ-45 Console Port Status
1
1. The USB console has priority over the RJ-45 console.
Off RJ-45 console is disabled. USB console is active.
Green RJ-45 console is enabled. USB console is disabled.
CON
SOLE
MGMT
M
GMT
347678
1 2
744
85 5 6
76
8
P
W
R
-
C2-250
W
A
C
P
W
R
-
C2-640
W
A
C
3 4
31 2
4

Cisco Catalyst 3650 Series Specifications

General

RAM	4 GB
Flash Memory	4 GB
Ports	24 or 48 10/100/1000 Ethernet ports
Uplinks	4 x 1G SFP or 4 x 10G SFP+ (depending on model)
Stacking	Up to 9 switches with StackWise-160
Layer Support	Layer 2, Layer 3
Software	Cisco IOS Software
Power Supply	Internal power supply; optional redundant power supply available
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
