Cisco Catalyst 3650 Series Guide

B-1
Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
APPENDIX
B
Connector and Cable Specifications
This chapter describes the connector and cable specifications.
• Connector Specifications, page B-1l
• Cable and Adapter Specifications, page B-5
Connector Specifications
• 10/100/1000 Ports, page B-1
• 10-Gigabit Ethernet CX1 (SFP+ Copper) Connectors, page B-2
• SFP and SFP+ Modules, page B-2
• 10/100/1000 Ethernet Management Port, page B-3
• Console Port, page B-4
10/100/1000 Ports
The 10/100/1000 Ethernet ports on switches use RJ-45 connectors and Ethernet pinouts.

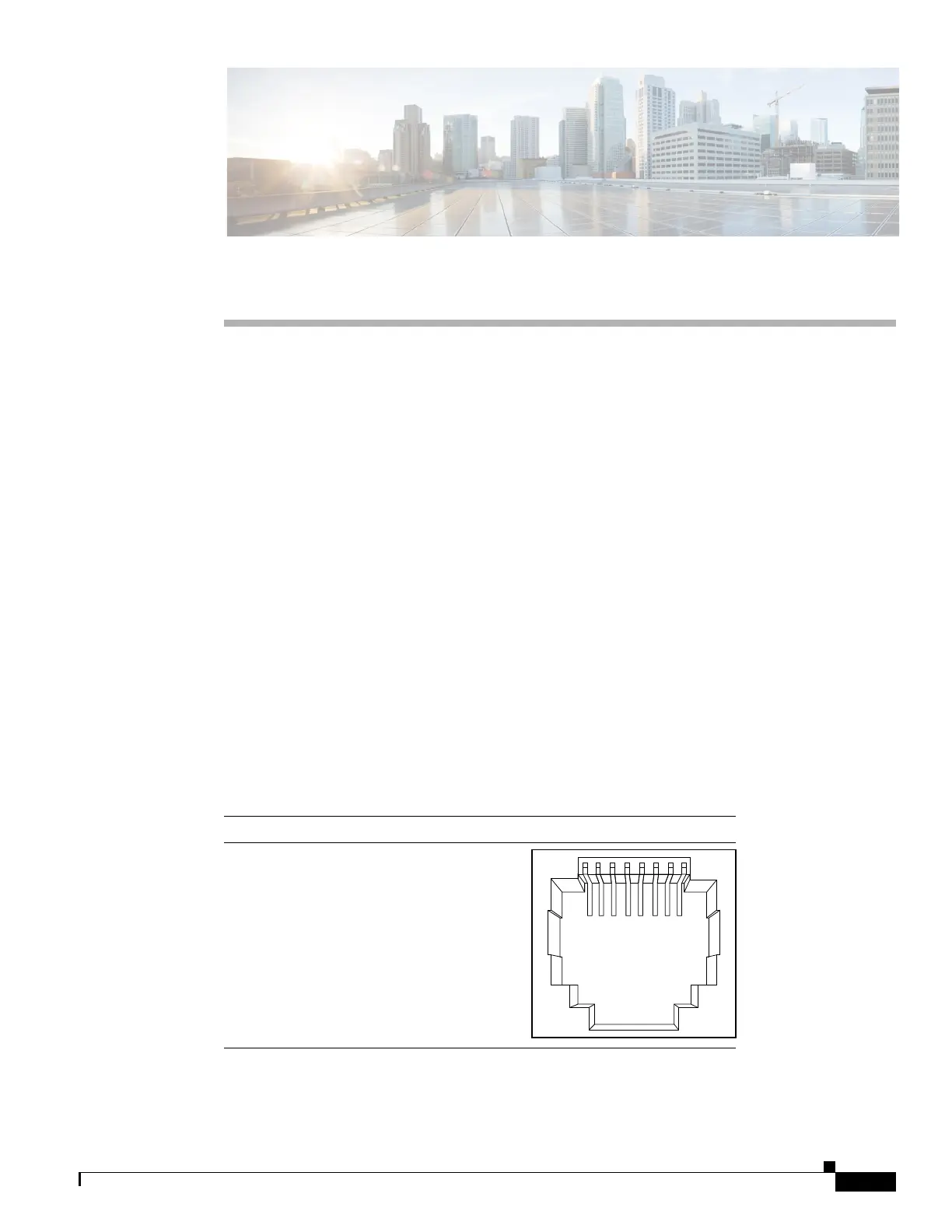

Figure B-1 10/100/1000 Port Pinouts
60915
2 3145678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-

Cisco Catalyst 3650 Series Specifications

General

RAM	4 GB
Flash Memory	4 GB
Ports	24 or 48 10/100/1000 Ethernet ports
Uplinks	4 x 1G SFP or 4 x 10G SFP+ (depending on model)
Stacking	Up to 9 switches with StackWise-160
Layer Support	Layer 2, Layer 3
Software	Cisco IOS Software
Power Supply	Internal power supply; optional redundant power supply available
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
