Cisco Catalyst 3650 Series Guide

B-8
Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
Appendix B Connector and Cable Specifications
Cable and Adapter Specifications
Four Twisted-Pair Cable Pinouts

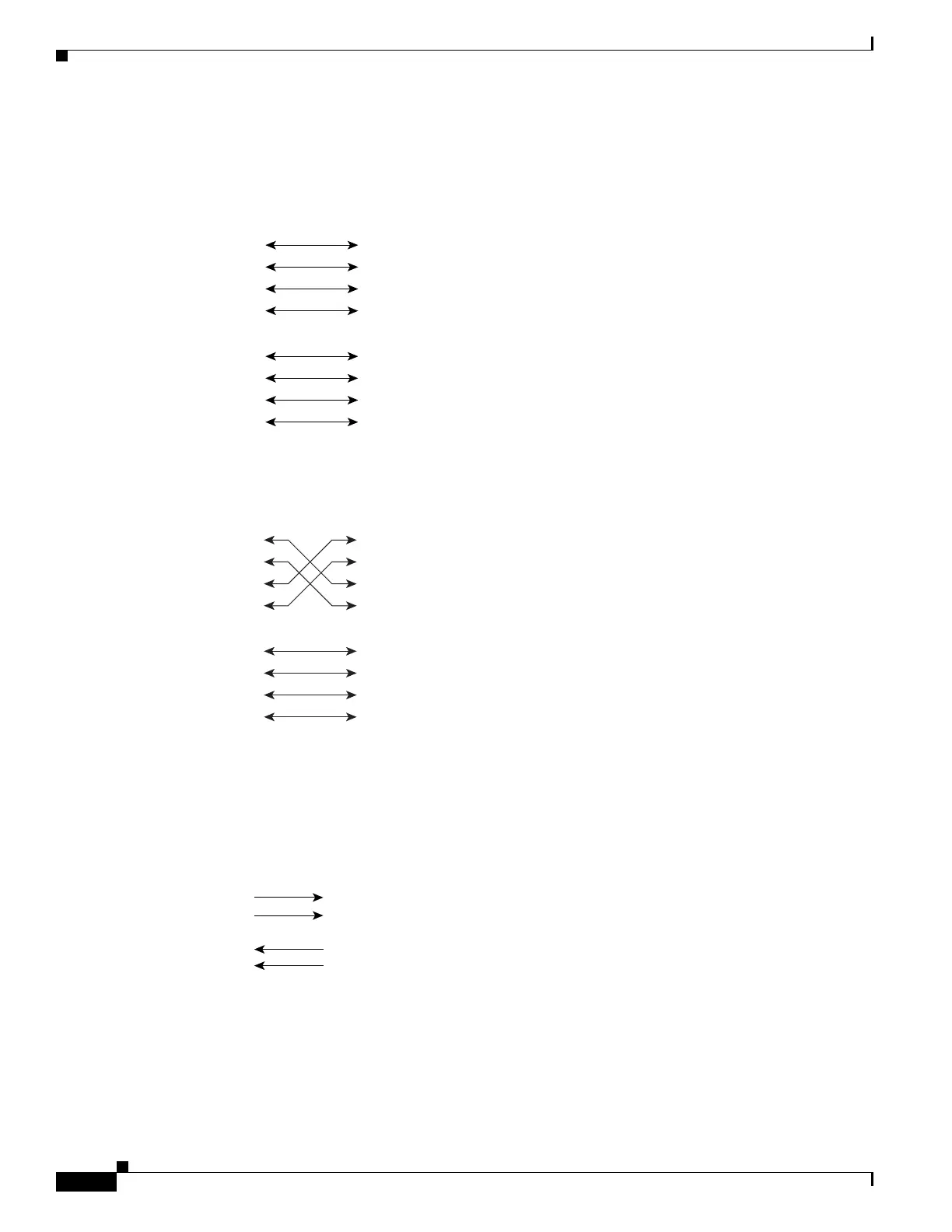

Figure B-13 Four Twisted-Pair Straight-Through Cable Schematic
Figure B-14 Four Twisted-Pair Crossover Cable Schematic
Two Twisted-Pair Cable Pinouts
Figure B-15 Two Twisted-Pair Straight-Through Cable Schematic
1 TPO+
2 TPO-
3 TP1+
6 TP1-
1 TP1+
Switch Router or PC
2 TP1-
3 TPO+
6 TPO-
4 TP2+
5 TP2-
7TP3+
8 TP3-
4TP3+
5TP3-
7 TP2+
8 TP2-
65272
1 TP0+
2 TP0-
3 TP1+
6 TP1-
1 TP0+
Switch Switch
2 TP0-
3 TP1+
6 TP1-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
65274
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or PC
3 RD+
6 RD–
1 TD+
2 TD–
H5578

Cisco Catalyst 3650 Series Specifications

General

RAM	4 GB
Flash Memory	4 GB
Ports	24 or 48 10/100/1000 Ethernet ports
Uplinks	4 x 1G SFP or 4 x 10G SFP+ (depending on model)
Stacking	Up to 9 switches with StackWise-160
Layer Support	Layer 2, Layer 3
Software	Cisco IOS Software
Power Supply	Internal power supply; optional redundant power supply available
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
