Appendix B Connector and Cable Specifications
Connector Specifications

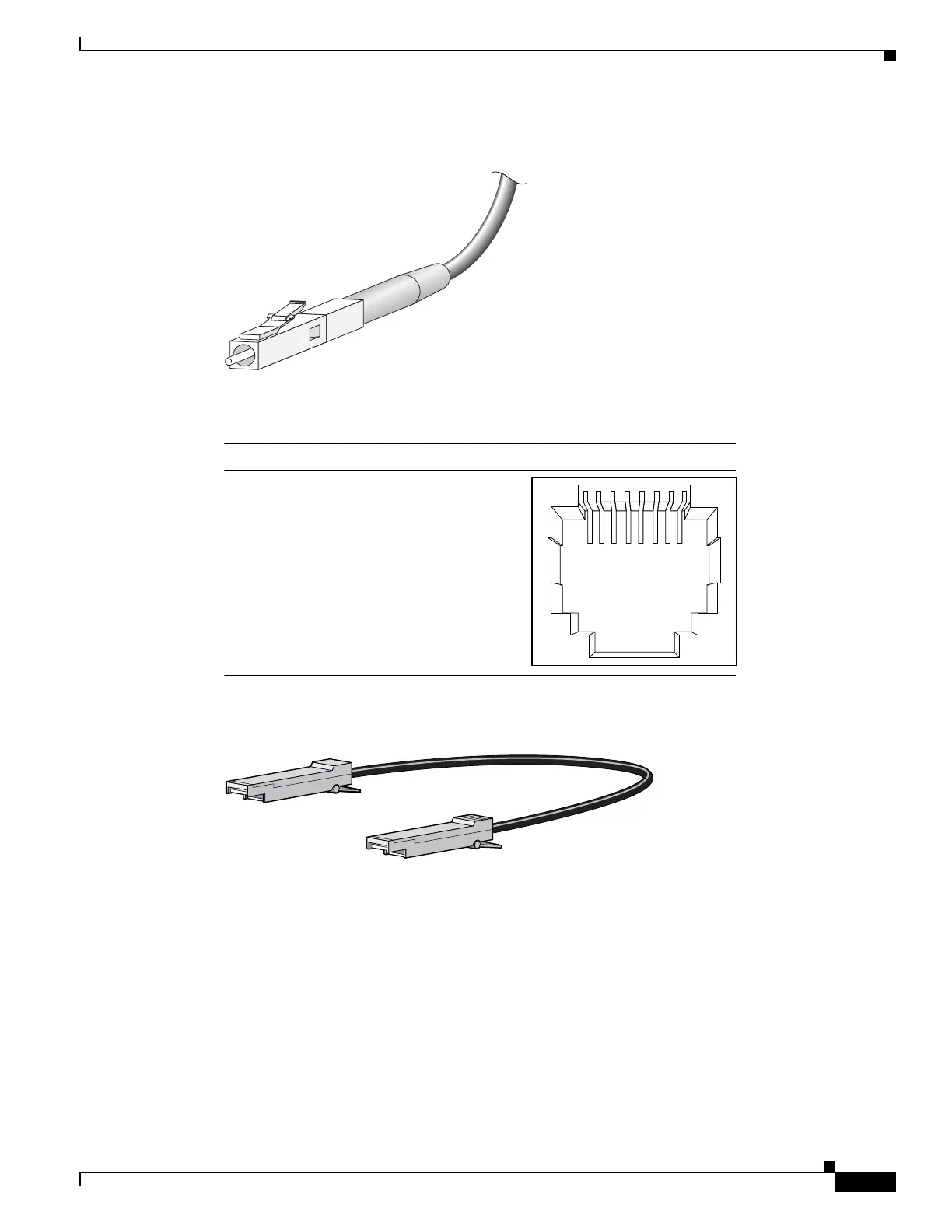

Figure B-4 Simplex LC Cable Connector
Figure B-5 Copper SFP Module RJ-45 Connector
Figure B-6 SFP Module Patch Cable
10/100/1000 Ethernet Management Port
The 10/100/1000 Ethernet management port uses RJ-45 connectors with Ethernet pinouts. Figure B-7
shows the pinouts.
57834
60915
2 3145678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
126809

Cisco Catalyst 3650 Series Specifications

General

RAM	4 GB
Flash Memory	4 GB
Ports	24 or 48 10/100/1000 Ethernet ports
Uplinks	4 x 1G SFP or 4 x 10G SFP+ (depending on model)
Stacking	Up to 9 switches with StackWise-160
Layer Support	Layer 2, Layer 3
Software	Cisco IOS Software
Power Supply	Internal power supply; optional redundant power supply available
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
