Step 2 Push up on the AP so that the spring of the DIN clip compresses against the lower section of DIN rail, and then rotate
the AP so that the top hook of the DIN clip clamps to the top section of DIN rail.

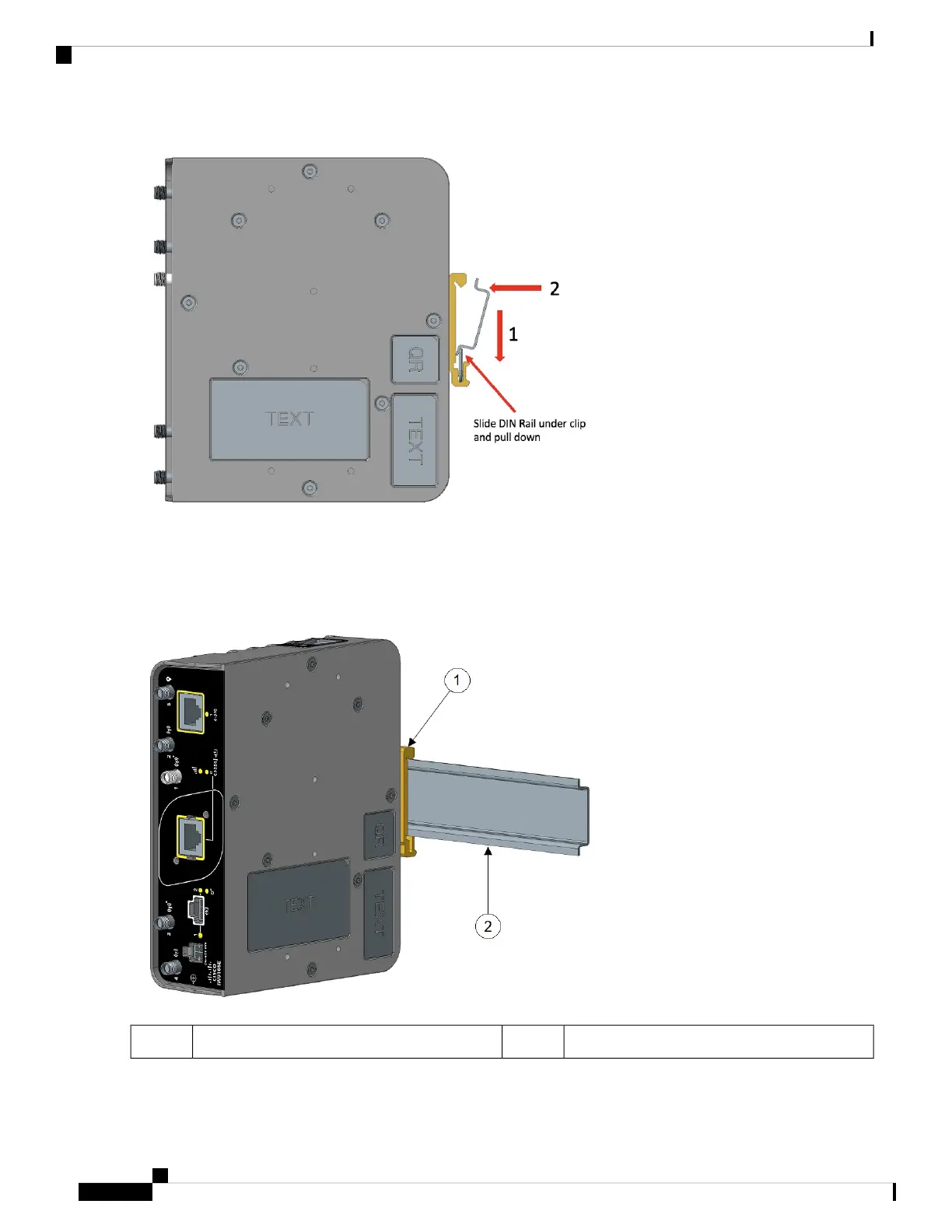

Figure 8: Bracket Attached to the DIN Rail
DIN rail2DIN rail bracket1
The procedure to attach the unit to the rail is the same with both orientations.
Note
Installation Overview
8
Installation Overview
Attaching the Bracket onto the DIN Rail
