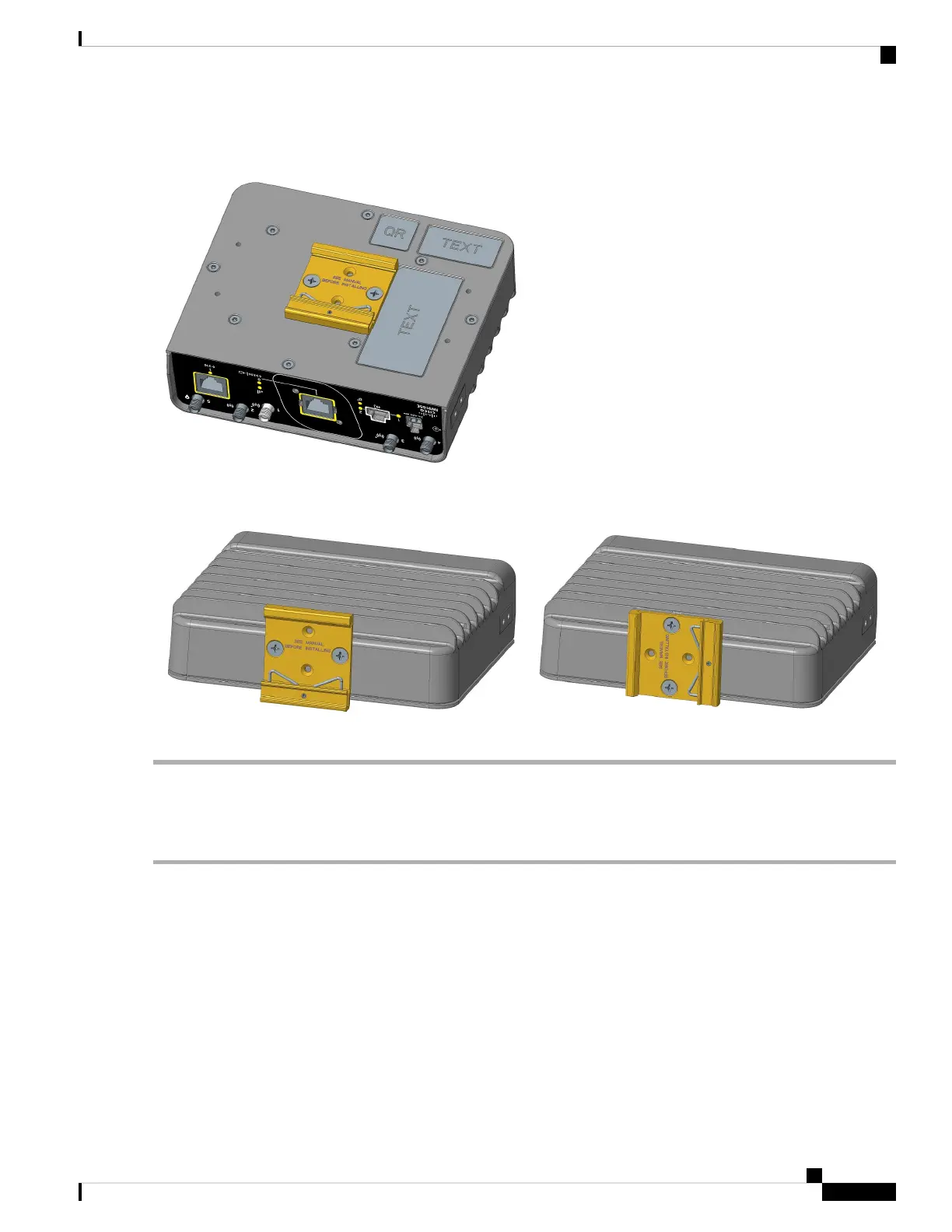

Figure 6: DIN Rail Bracket Mounted on the Bottom
Figure 7: DIN Rail Bracket Mounted on the Back
Attaching the Bracket onto the DIN Rail
To attach the IW9165E with the bracket to a DIN rail, follow these steps.
Step 1 Position the access point so that the lower edge and spring of the DIN clip, located within the bottom of the DIN rail
bracket, engages with the bottom section of the DIN rail.
Installation Overview
7
Installation Overview
Attaching the Bracket onto the DIN Rail
