2-8
Cisco Physical Security Multiservices Platform Series User Guide
OL-21838-03
Chapter 2 Setting Up and Maintaining the Multiservices Platform Series Device
Setting up a Multiservices Platform Series Device
Attaching the Outer Rails to a Rack
There are two outer rack rails. One attaches to each side of the rack and connects to the inner rack rails
to hold the Multiservices Platform Series device in place. Each outer rack rail adjusts to fit racks between
26.5 and 36.4 inches (67.31 and 92.5 cm) deep.
To attach the outer rails to a rack, see Figure 2-5 and perform the procedure that follows.

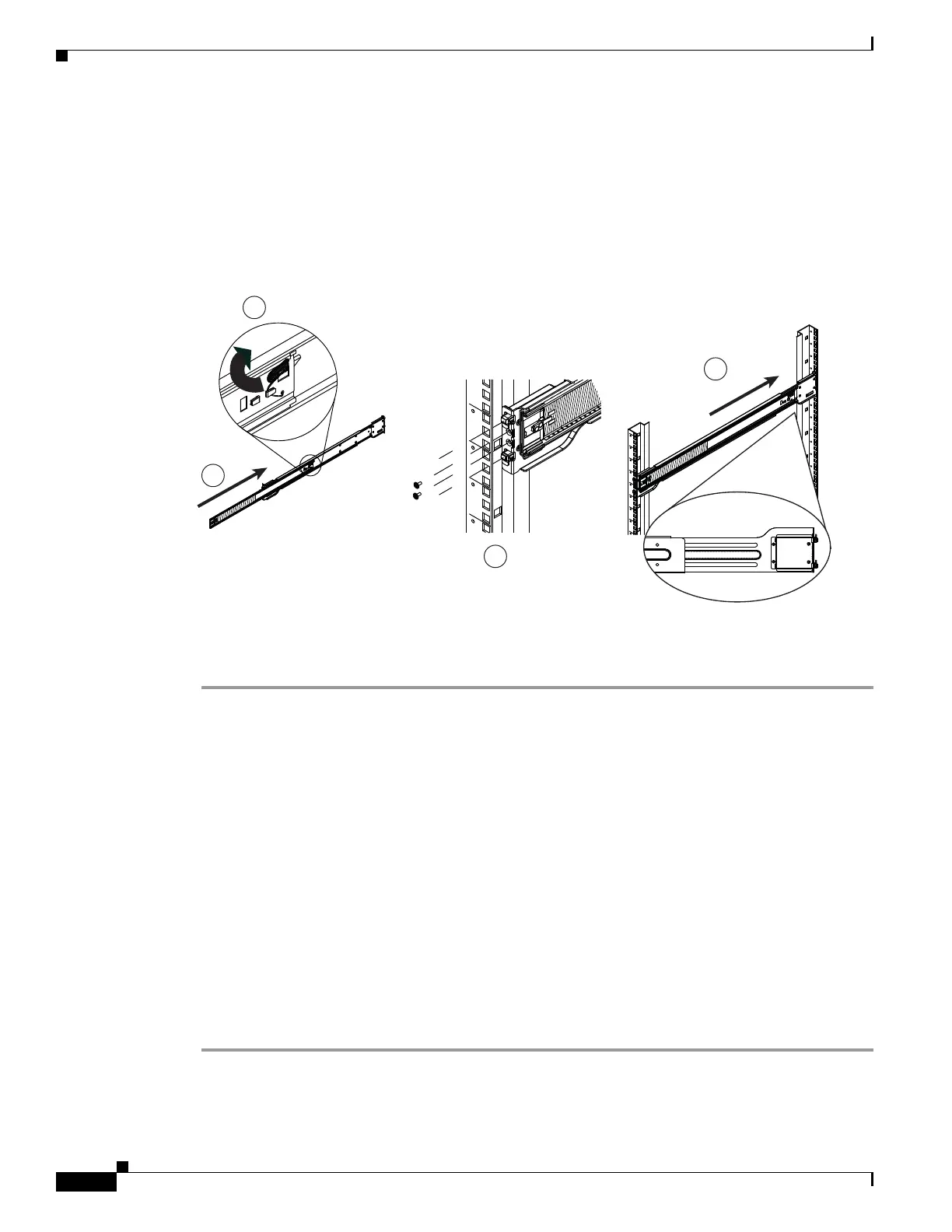

Figure 2-5 Attaching Outer Rails to a Rack (Left Outer Rail Shown)
Procedure
Step 1 Press up the locking tab at the rear of the middle rail.
Step 2 Push the middle rail into the outer rail.
Step 3 Hang the hooks on the front of the outer rail onto the slots on the front of the rack.
If you are using the square hole to round hole adapter set, hang the outer rail hooks onto the brackets
that you installed. (See the
“Installing Square Hole to Round Hole Adapters (Optional)” section on
page 2-5 for related information.)
Step 4 Secure the front of the outer rail to front of the rack by using one of the M5 x12L screws and washers,
provided.
Step 5 Pull out the rear of the outer rail until and hang the hooks on the rear of the outer rail onto the slots on
the rear of the rack.
If you are using the square hole to round hole adapter set, hang the outer rail hooks onto the brackets
that you installed.
Step 6 Secure secure the front of the outer rail to front of the rack by using one of the M5 x12L screws and
washers, provided.
Step 7 Repeat Step 1 through Step 5 for the other outer rail.
