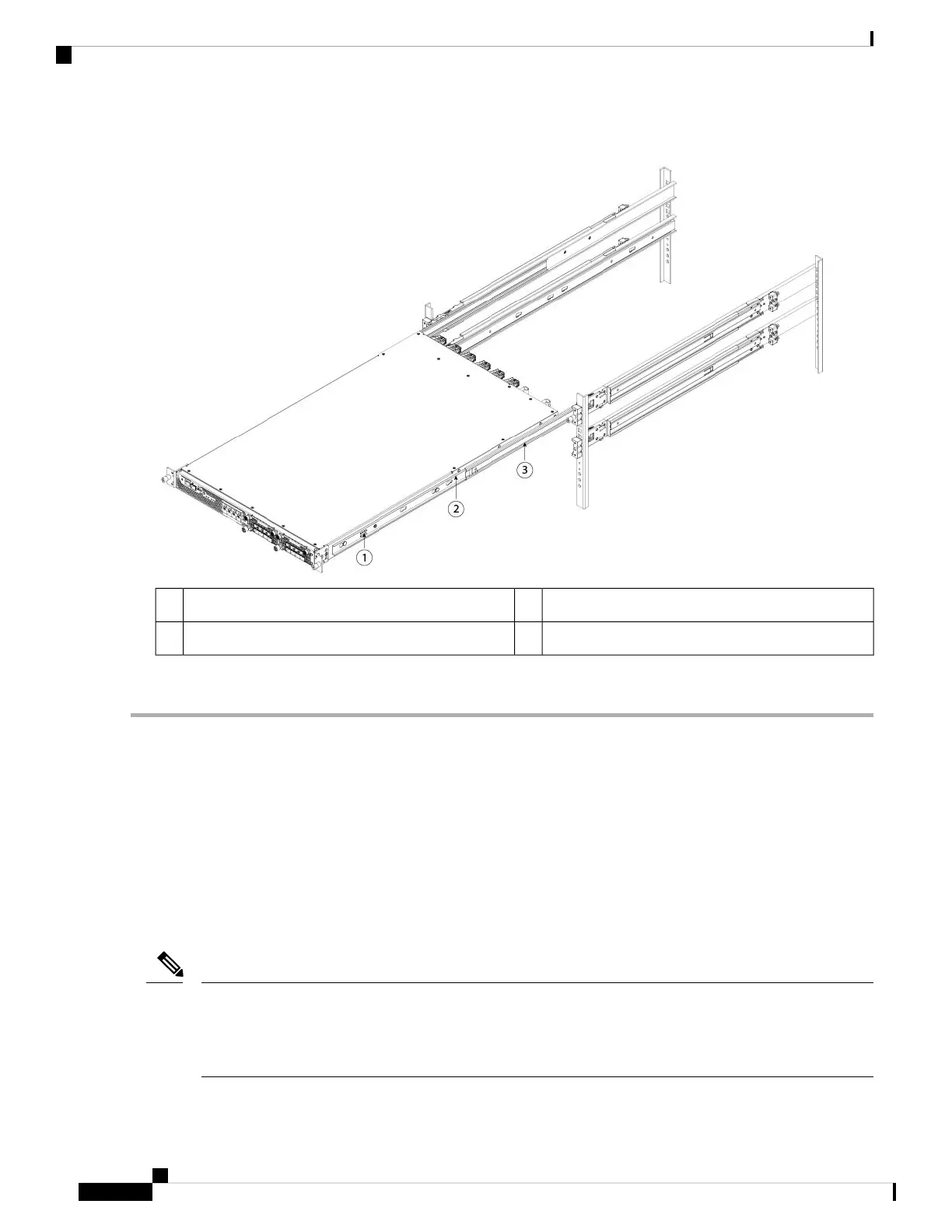

Figure 38: Inner Rail Release Clip
Inner rail attached to chassis2Inner rail release clip1
Outer rail attached to rack post3
Step 6 Use the captive screws on the front of the mounting brackets to fully secure the chassis to the rack.
What to do next
Ground the chassis. See Ground the Chassis, on page 52 for the procedure.
Install the FIPS opacity shield if necessary. See Install the FIPS Opacity Shield, on page 75 for the procedure.
Install the cables according to your software configuration as described in the Cisco Firepower 4100 Getting
Started Guide.
Ground the Chassis
Grounding the chassis is required, even if the rack is already grounded. A grounding pad with two threaded
M4 holes is provided on the chassis for attaching a grounding lug. The grounding lug must be Nationally
Recognized Testing Laboratory (NRTL)-listed. In addition, a copper conductor (wires) must be used and the
copper conductor must comply with National Electrical Code (NEC) code for ampacity.
Note
Cisco Firepower 4110, 4120, 4140, and 4150 Hardware Installation Guide
52
Rack-Mount and Ground the Chassis
Ground the Chassis

Cisco Firepower 4110 Specifications

General

Power Supply	Dual, hot-swappable
Form Factor	1RU
Firewall Throughput (Multiprotocol)	10 Gbps
Number of 10GE (SFP+) Interfaces	8
Number of 40GE (QSFP+) Interfaces	2
Redundant Power Supply	Yes
Memory	32 GB
Ports	8 x 10GE, 2 x 40GE
Concurrent Sessions	8 Million
Number of 10/100/1000 Interfaces	8
Maximum Connections	8 Million
Management Ports	1 x RJ45
Data Ports	8 x 10GE, 2 x 40GE
Processor	Intel Xeon E5-2600
