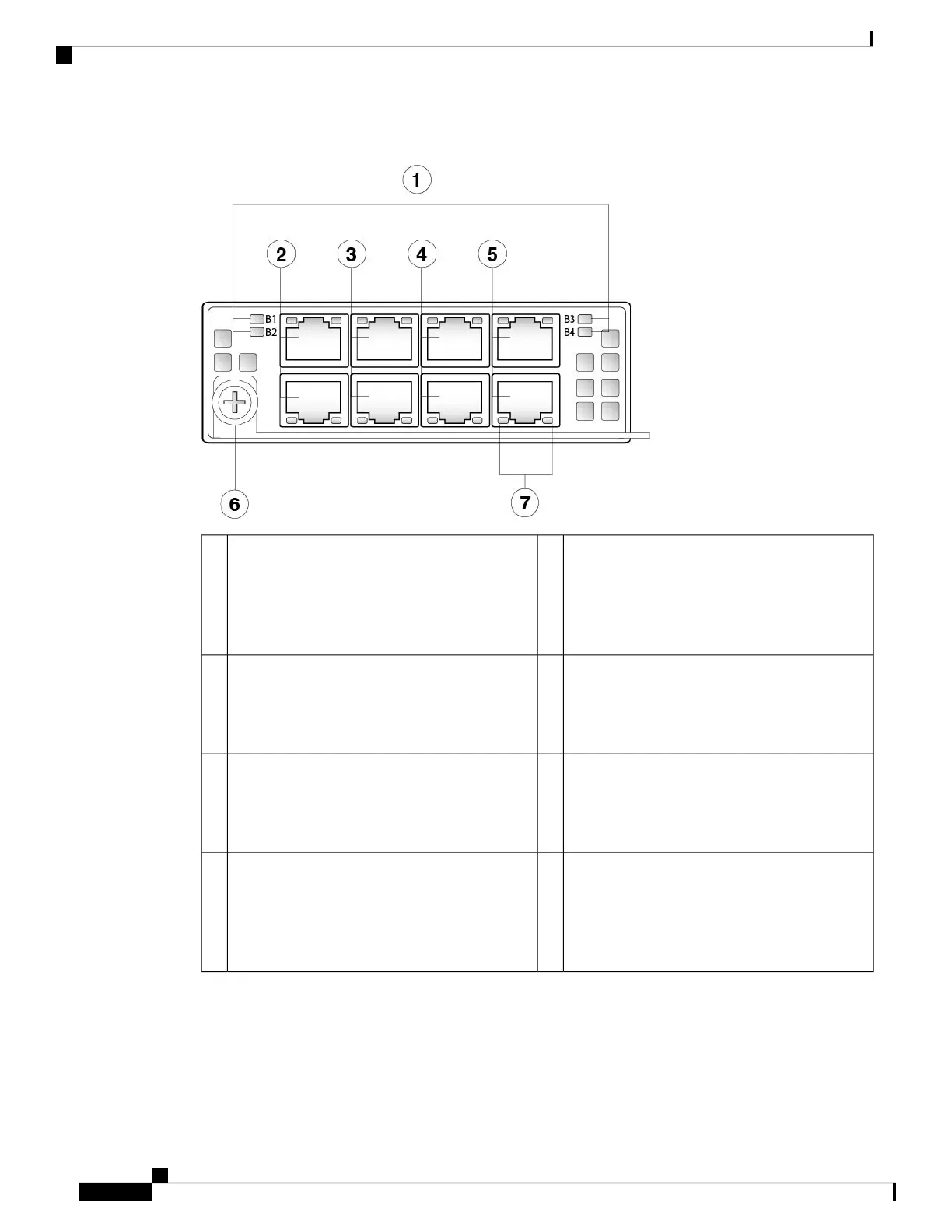

Figure 10: FPR-NM-8X1G-F
Ethernet X/1
Ports 1 and 2 are paired together to form a
hardware bypass pair. LED B1 applies to this
paired port.
2Bypass LEDs B1 through B4
• Green—In standby mode.
• Amber, flashing—Port is in hardware bypass
mode, failure event.
1
Ethernet X/2
Ports 5 and 6 are paired together to form a
hardware bypass pair. LED B3 applies to this
paired port.
4Ethernet X/2
Ports 3 and 4 are paired together to form a
hardware bypass pair. LED B2 applies to this
paired port.
3
Captive screw/handle6Ethernet X/2
Ports 7 and 8 are paired together to form a
hardware bypass pair. LED B4 applies to this
paired port.
5
—Network activity LEDs
• Left LED—Green indicates network activity
when a 10M/100M/1G connection is made.
• Right LED—Not in use at this time.
7
40-Gb Network Module with Hardware Bypass
The following figure shows the front panel of the 40-Gb hardware bypass network module
(FPR4K-NM-2X40G-F). The FPR4K-NM-2X40G-F is a single-wide module that does not support hot
swapping. The two ports are numbered left to right. Pair the two ports to create a hardware bypass paired set.
