Cisco Firepower 4110 Hardware Installation Guide

Step 3 Use the crimping tool to secure the grounding cable in the grounding lug.
Step 4 Remove the adhesive label from the grounding pad on the chassis.
Step 5 Place the grounding lug against the grounding pad so that there is solid metal-to-metal contact, and insert the two screws
with washers through the holes in the grounding lug and into the grounding pad.

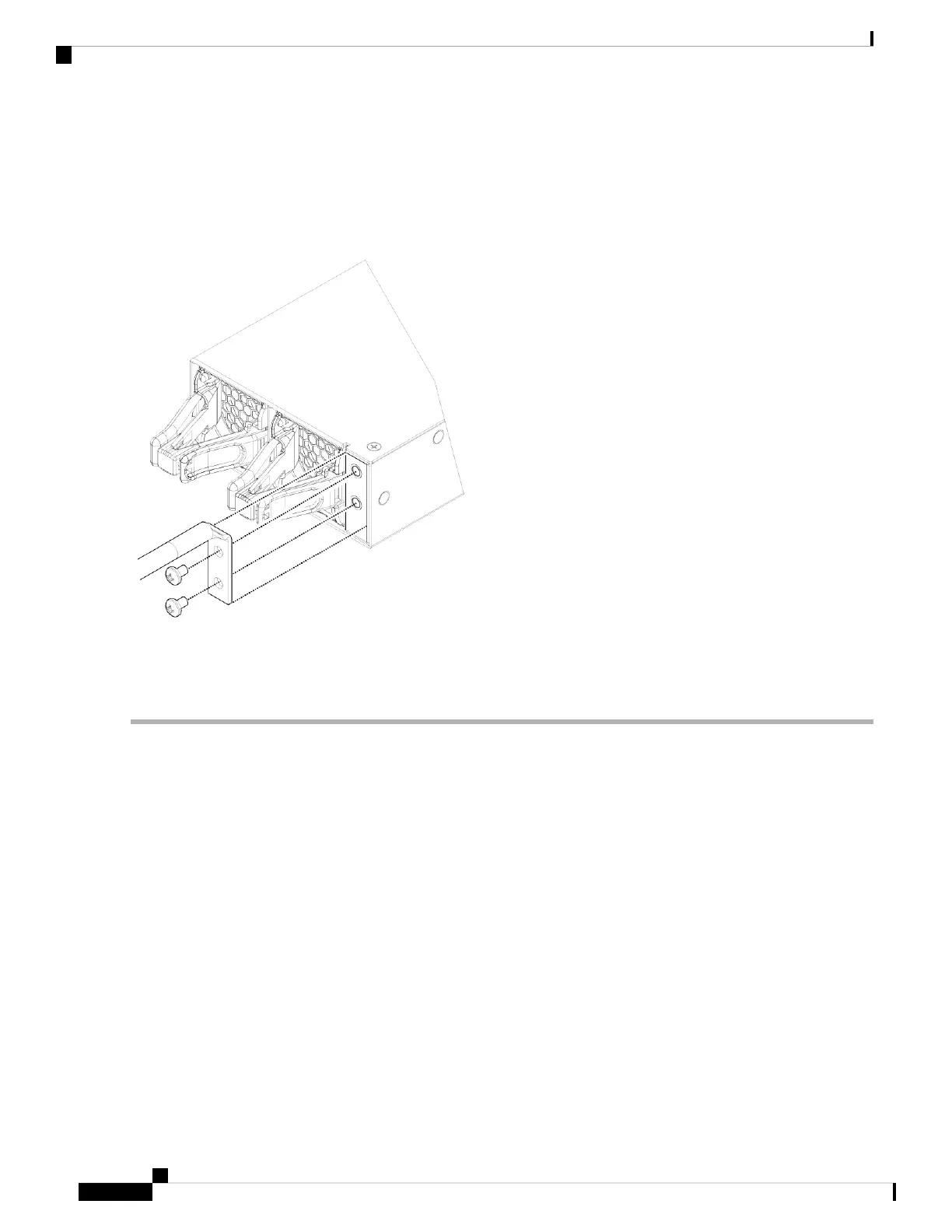

Figure 40: Attach the Grounding Lug
Step 6 Make sure that the lug and cable do not interfere with other equipment.
Step 7 Prepare the other end of the grounding cable and connect it to an appropriate grounding point in your site to ensure
adequate earth ground.
What to do next
Install the FIPS opacity shield if necessary. See Install the FIPS Opacity Shield, on page 75 for the procedure.
Install the cables according to your default software configuration as described in the Cisco Firepower 4100
Getting Started Guide.
Cisco Firepower 4110, 4120, 4140, and 4150 Hardware Installation Guide
54
Rack-Mount and Ground the Chassis
Ground the Chassis

Cisco Firepower 4110 Specifications

General

Power Supply	Dual, hot-swappable
Form Factor	1RU
Firewall Throughput (Multiprotocol)	10 Gbps
Number of 10GE (SFP+) Interfaces	8
Number of 40GE (QSFP+) Interfaces	2
Redundant Power Supply	Yes
Memory	32 GB
Ports	8 x 10GE, 2 x 40GE
Concurrent Sessions	8 Million
Number of 10/100/1000 Interfaces	8
Maximum Connections	8 Million
Management Ports	1 x RJ45
Data Ports	8 x 10GE, 2 x 40GE
Processor	Intel Xeon E5-2600
