Cisco Firepower 4110 Hardware Installation Guide

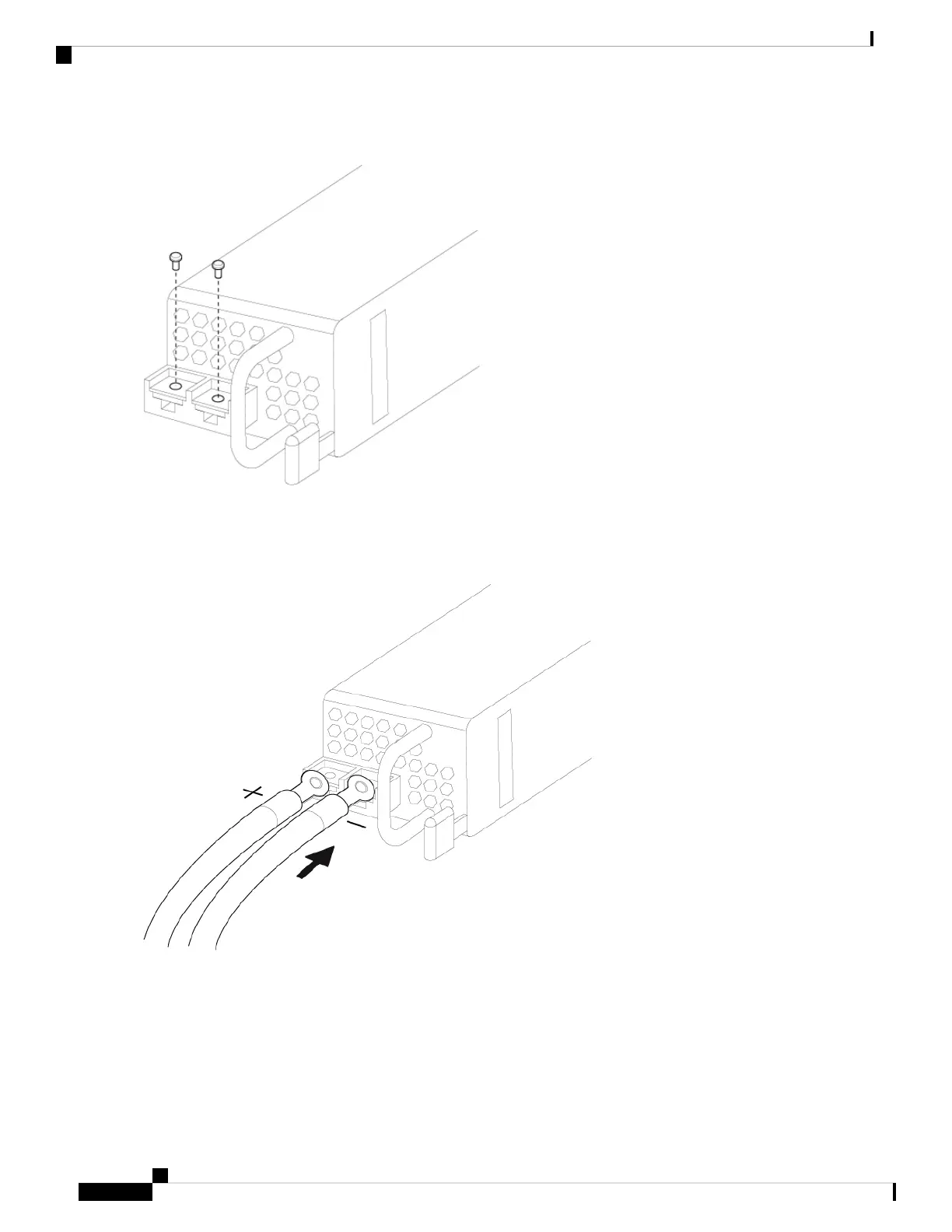

Figure 47: Remove the M5 Screws
Step 7 For easier cable management, insert the negative lead cable first. Replace the grounding lug with the cable in the
following order—wire terminal, then the screw with the captive washer.
Figure 48: Insert the Cables
Step 8 Tighten the M5 screw with the captive washer to the recommended torque of 5 in-lbs for the positive stud and wire.
Secure the wires coming in from the terminal block so that they cannot be disturbed by casual contact.
Cisco Firepower 4110, 4120, 4140, and 4150 Hardware Installation Guide
70
Installation, Maintenance, and Upgrade
Connect the DC Power Supply Module

Cisco Firepower 4110 Specifications

General

Power Supply	Dual, hot-swappable
Form Factor	1RU
Firewall Throughput (Multiprotocol)	10 Gbps
Number of 10GE (SFP+) Interfaces	8
Number of 40GE (QSFP+) Interfaces	2
Redundant Power Supply	Yes
Memory	32 GB
Ports	8 x 10GE, 2 x 40GE
Concurrent Sessions	8 Million
Number of 10/100/1000 Interfaces	8
Maximum Connections	8 Million
Management Ports	1 x RJ45
Data Ports	8 x 10GE, 2 x 40GE
Processor	Intel Xeon E5-2600
