Cisco Firepower 4110 Hardware Installation Guide

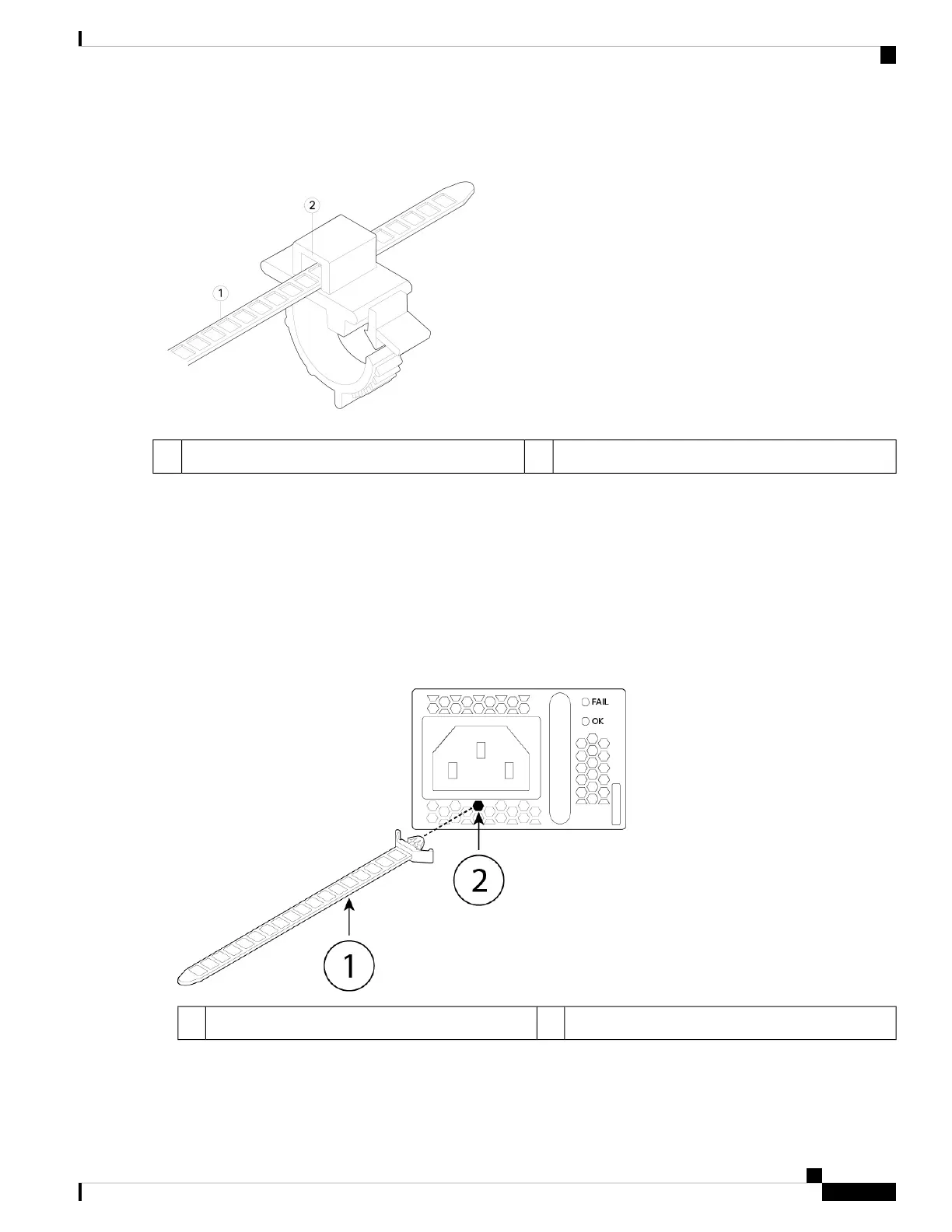

Figure 51: Tie Wrap Through the Box Channel of the Clamp
Box channel2Tie wrap1
Step 2 Attach the clamp to the power supply module:
a) Locate the hexagonal ventilation hole on the power supply module at the center of the plug just below the power
connector body (see the following figures).
b) Plug the snapping portion of the tie wrap into the hexagonal hole.
c) With the clamp side facing up, push the tie wrap in until it is fully engaged.
Make sure you have the correct location because you cannot remove the tie wrap from the power supply
module once you have installed it without damaging the tie wrap.
Caution
Figure 52: Flextronics Power Supply Module
Hexagonal hole2Flextronics tie wrap1
Cisco Firepower 4110, 4120, 4140, and 4150 Hardware Installation Guide
73
Installation, Maintenance, and Upgrade
Secure the Power Cord on the AC Power Supply Module

Cisco Firepower 4110 Specifications

General

Power Supply	Dual, hot-swappable
Form Factor	1RU
Firewall Throughput (Multiprotocol)	10 Gbps
Number of 10GE (SFP+) Interfaces	8
Number of 40GE (QSFP+) Interfaces	2
Redundant Power Supply	Yes
Memory	32 GB
Ports	8 x 10GE, 2 x 40GE
Concurrent Sessions	8 Million
Number of 10/100/1000 Interfaces	8
Maximum Connections	8 Million
Management Ports	1 x RJ45
Data Ports	8 x 10GE, 2 x 40GE
Processor	Intel Xeon E5-2600
