Product Overview
LEDs
LEDs
You can use the LEDs to monitor the switch status, activity, and performance. Figure 3 on page 6 and on page 8 show
the front panel LEDs.

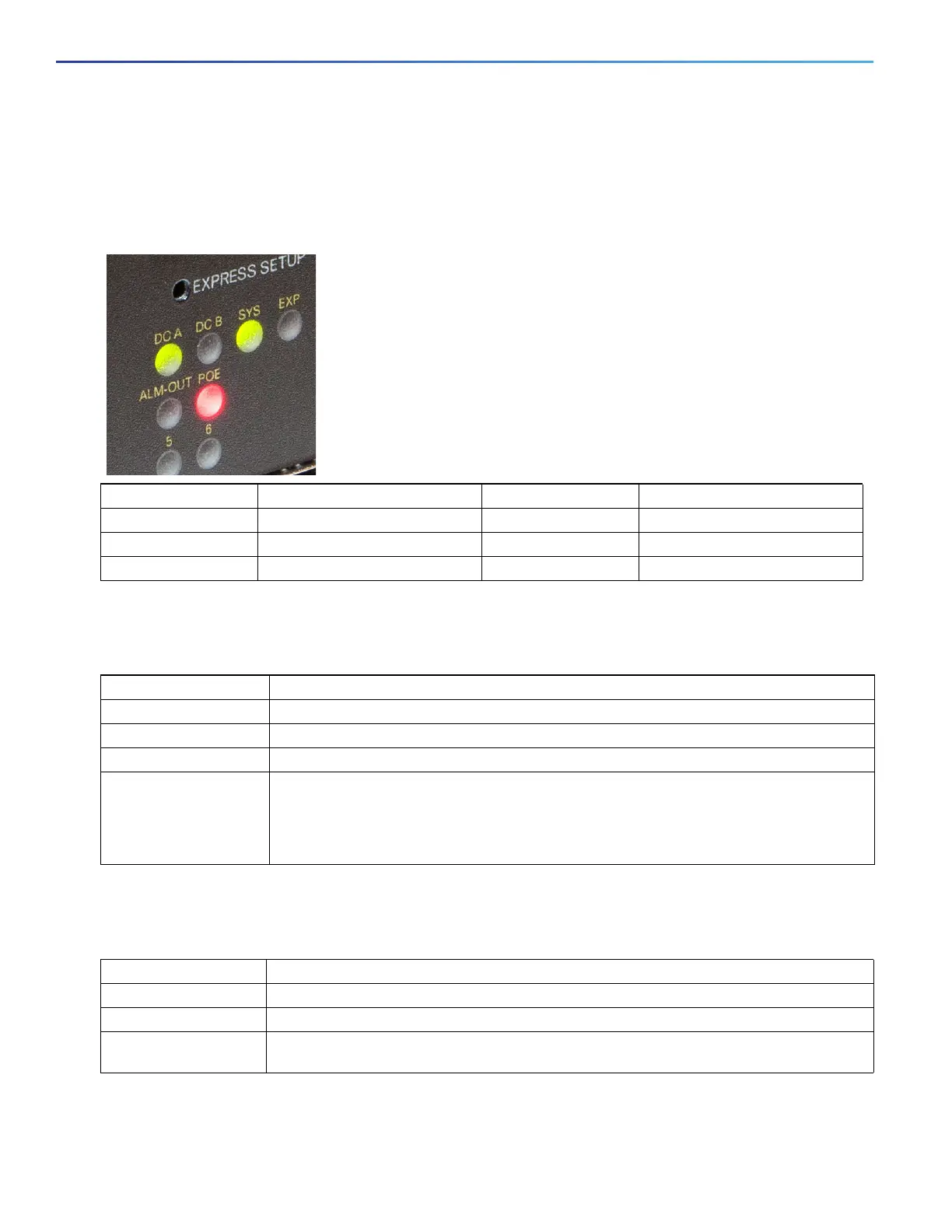

Figure 3 LEDs on the Cisco IE 1000 Switch (PoE Models Only)
Express Setup LED
The Express Setup LED displays the express setup mode for the initial configuration.
System LED
The System LED shows whether the system is receiving power and is functioning properly.
DC A Power connector DC-A LED ALM-OUT (PoE Only) Alarm Out LED
DC B (PoE Only) Power connector DC-B LED POE (PoE Only) POE port status LED
SYS System LED 5 (PoE Only) SFP module slot LED
EXP Express Setup LED 6 (PoE Only) SFP module slot LED
Color Setup Status
Off (dark) Switch is configured as a managed switch.
Solid green Switch is operating normally.
Blinking green Switch is in initial setup, in recovery, or initial setup is incomplete.
Solid red Switch failed to start initial setup or recovery because there is no available switch port to
which to connect the management station. Disconnect a device from a switch port, and then
press the Express Setup button. The EXP LED will go RED when User attempts to enter
Express Setup mode, but the switch has a startup-configuration already. Express Setup
mode only works when the switch does NOT have a startup-configuration.
Color System Status
Off System is not powered on.
Green System is operating normally.
Red The switch failed ACT 2 verification. The configuration running on the switch is not
compatible with the running software. Switch is not functioning properly.

Cisco IE 1000 Specifications

General

Category	Switch
Mounting	DIN-rail or wall mounting
Dimensions	90 x 135 x 55 mm (3.54 x 5.31 x 2.17 in)
DRAM	256 MB
Flash Memory	64 MB
Model	IE-1000
Ports	8 or 16 10/100 Mbps ports
Uplink Ports	2 Gigabit Ethernet uplink ports
Operating Temperature	-40°C to 70°C
Power Input	Dual DC power input
Management	Web-based, CLI, SNMP
Total Ports	Varies by model (5, 8, or 16 ports)
Power Supply	Internal
Weight	1.1 lb
