Cisco IW3702 User Manual

9600 baud
•
•
8 data bits
•
No parity
•
1 stop bit
•
No flow control
Step 5
When connected, press enter or type en to access the command prompt.
Entering en prompts you for a password, and then enters privileged exec mode. The default password is Cisco and is
case-sensitive.
When you finish configuring the access point:
Step 6

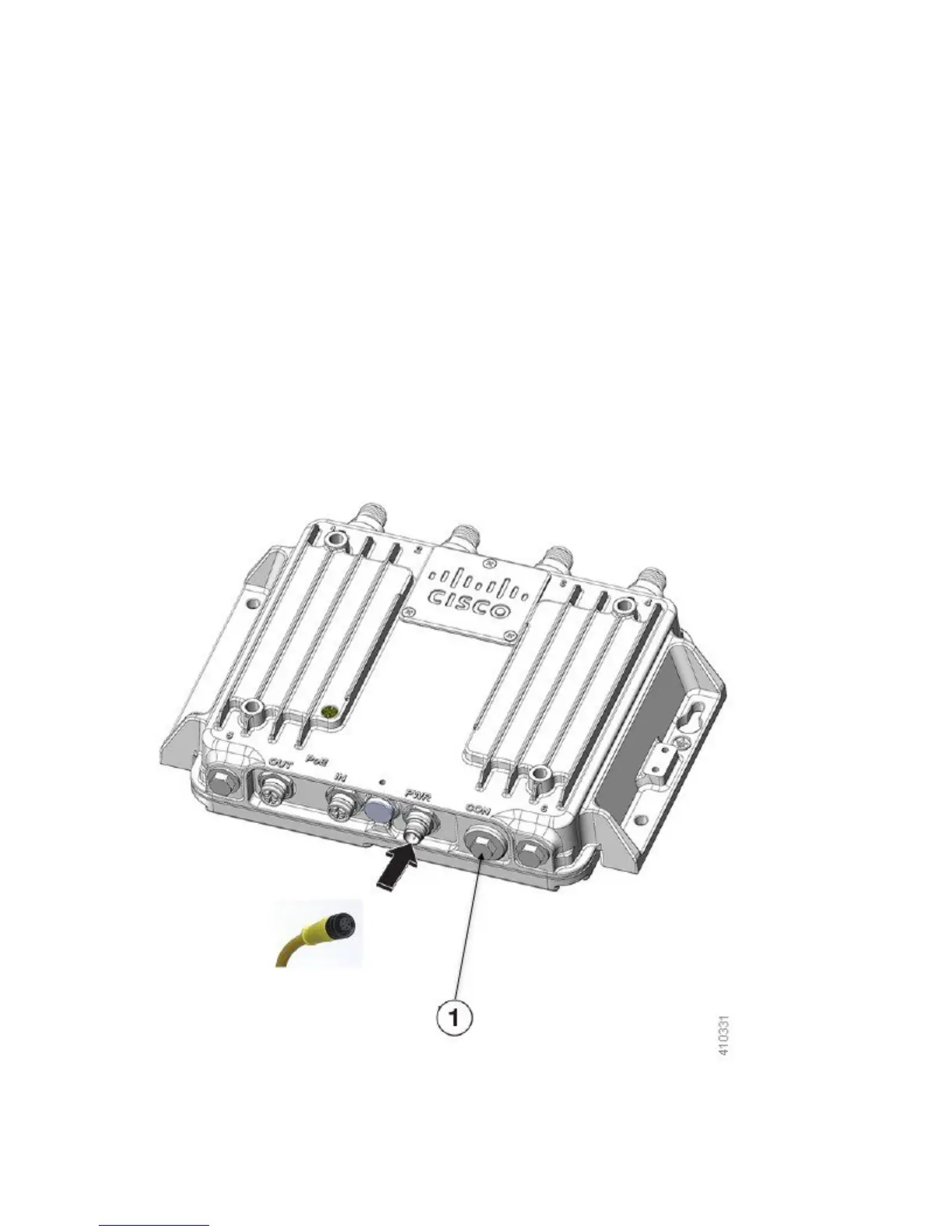

Use a small flat-blade screwdriver to depress the tab on the RJ45 connector and disconnect the cable from the CON port.
Step 7
Replace the CON port cover.
Step 8
Use a 0.5 in. (13 mm) socket wrench to torque the CON port cover to 6-7 ft-lbs (8.13-9.49 N-m).
53

Cisco IW3702 Specifications

General

Model	IW3702
Category	Wireless Access Point
Wireless Standards	802.11a/b/g/n/ac
Frequency Bands	2.4 GHz and 5 GHz
Ingress Protection	IP67
Ethernet Ports	2 x 10/100/1000BASE-T
Power Source	PoE (802.3af)
Humidity	5% to 95% (non-condensing)
Security	802.1X
Mounting	Pole, wall
