What is the LightStream 1010 ATM Switch?
What is the LightStream 1010 ATM Switch?
The LightStream 1010 uses a five-slot, modular chassis featuring the option of dual, fault-tolerant,
load-sharing power supplies (See Figure 1.) The central slot in the LightStream 1010 is dedicated to
a single, field-replaceable ATM switch processor (ASP) module that supports both the 5-Gbps
shared memory and the fully nonblocking switch fabric. The ASP also supports the feature card and
high performance reduced instruction set (RISC) processor that provides the central intelligence for
the device. The remaining slots support up to four hot-swappable Carrier Modules (CAMs). Each
CAM supports up to two hot-swappable Port Adapter Modules (PAMs) for a maximum of eight
PAMs per switch, supporting a wide variety of desktop, backbone, and wide-area interfaces.

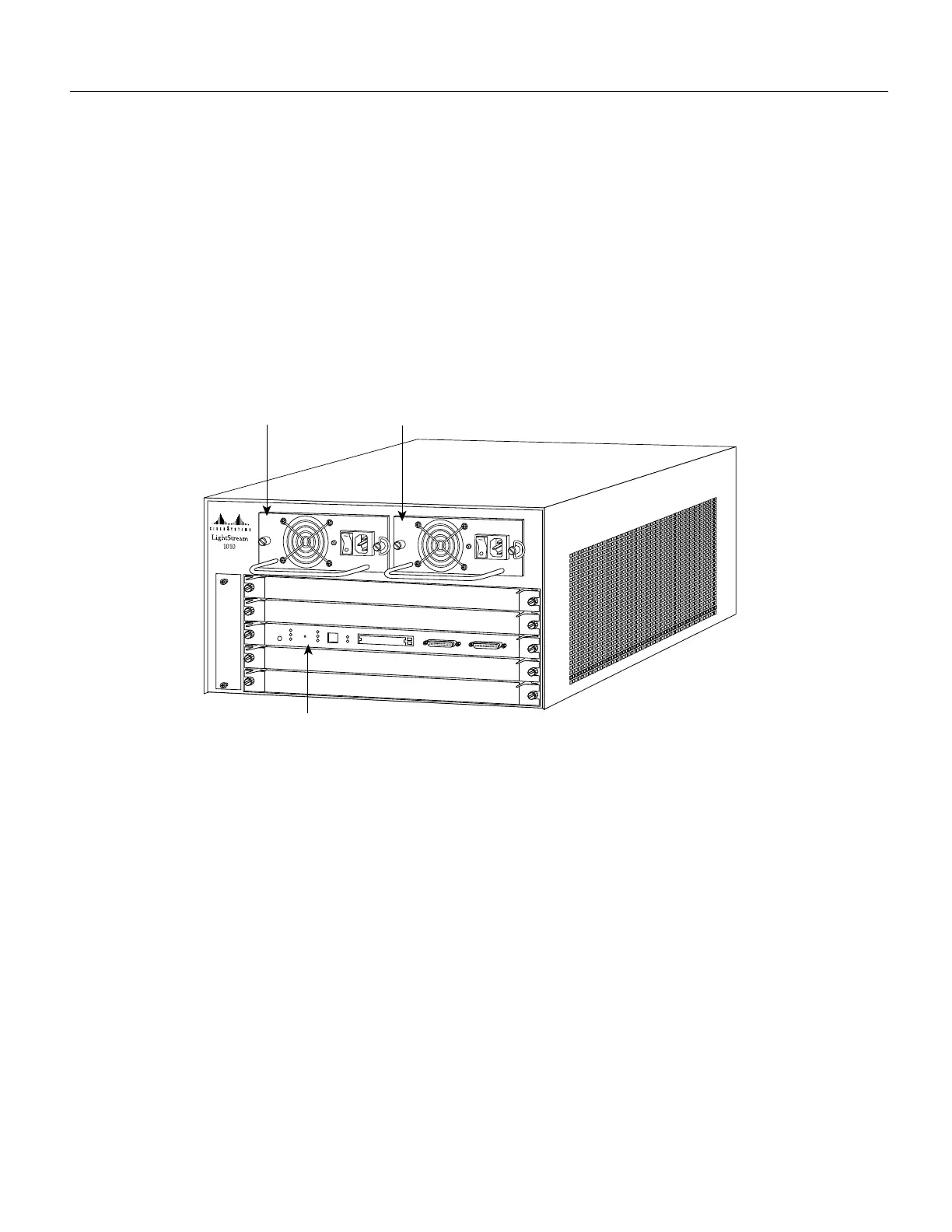

Figure 1 Front View of the LightStream 1010 ATM Switch
The LightStream 1010 ATM switch provides switched ATM connections to individual workstations,
servers, LAN segments, or other ATM switches and routers using fiber-optic, unshielded
twisted-pair (UTP), and coaxial cable.
Figure 2 shows an example of a network configuration using the LightStream 1010 ATM switch in
a high-performance workgroup.
H5596
Power supply 0
Power supply 1
ATM switch processor
PS1
PS2
FAN
LINK
SLOT 2
SLOT 1
PCMCIA
EJECT
AUX
CONSOLE
Enet
RX
TX
RESET
SWITCH/PROCESSOR
