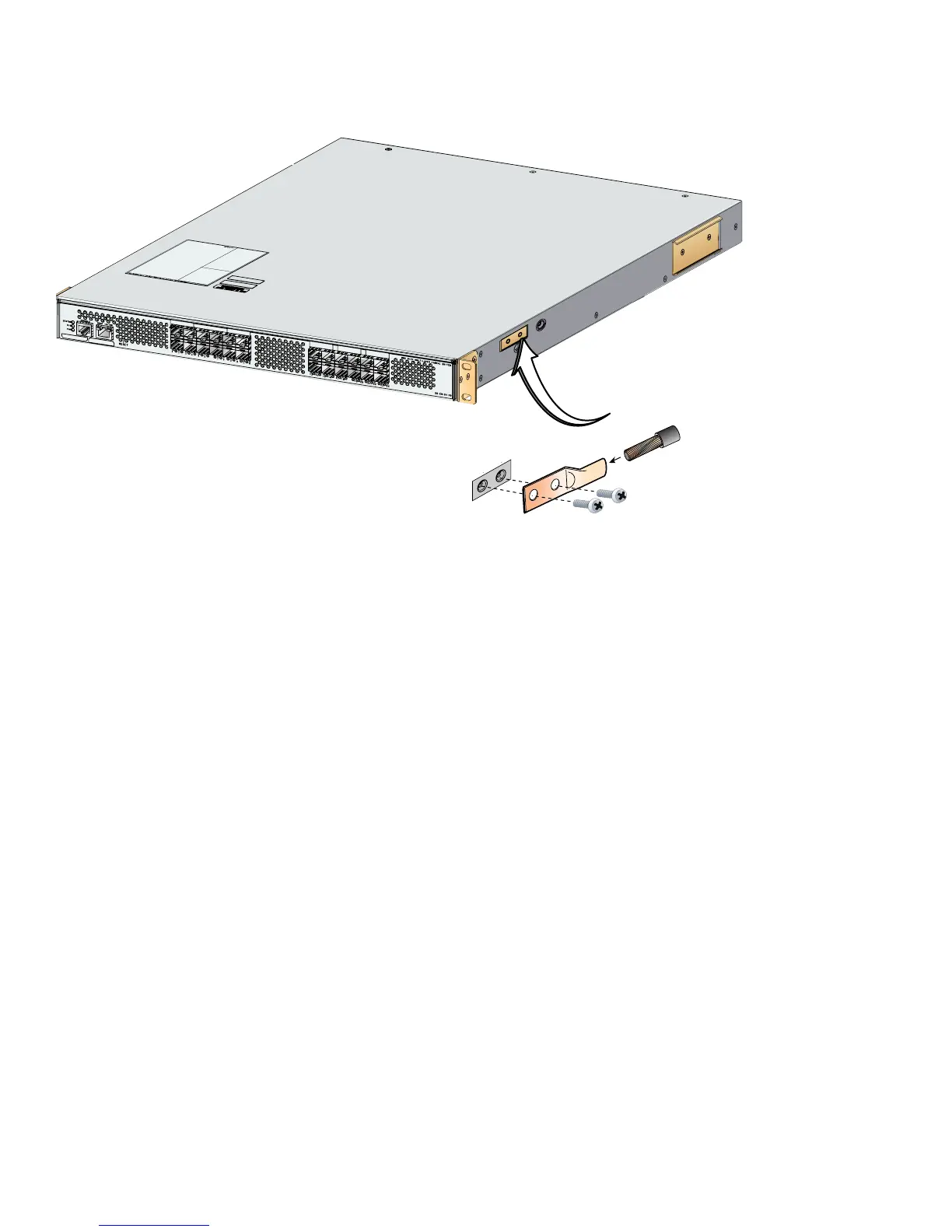

Figure 5 Switch Ground
1
81544
Grounding
lug
System grounding pad
Wire
Screws (M4)
Grounding
pad location
Step 2 Connect the power cable to the AC power receptacle, and then plug it in (see Figure 6).
The Cisco MDS 9148 Switch supports only AC power supply. The power supply status is indicated on a front panel
LED.
The Cisco MDS 9148 Switch includes a front panel reset button that resets the switch without cycling the power.
Step 3 Power up the switch (see Figure 6).

Cisco MDS 9148 Specifications

General

Form Factor	1RU
Switching Capacity	768 Gbps
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-40 to 158°F (-40 to 70°C)
Port Speed	4/8/16 Gbps
Throughput	384 Gbps
Latency	Less than 2 microseconds
Power Supply	Dual hot-swappable
Management	CLI
Fibre Channel Zoning	Hardware enforced zoning
Relative Humidity	5 to 95% non-condensing
Dimensions	1.72 x 17.3 x 19.5 inches
