6
Send documentation comments to mdsfeedback-doc@cisco.com

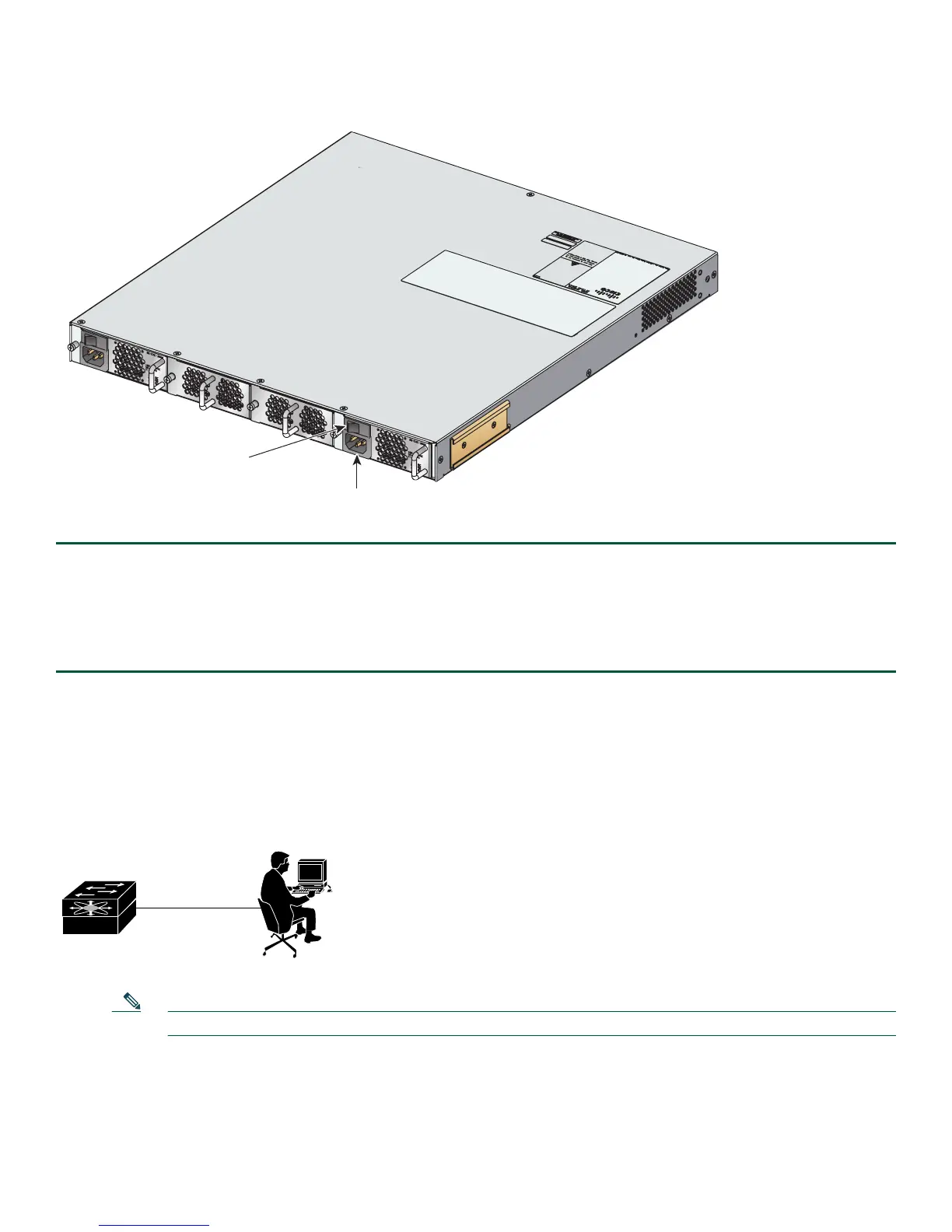

Figure 6 Power Receptacle and On/Off Switch on Cisco MDS 9148 Switch
274885
AC power
receptacle
On/Off
switch
6 Setting Up a Network
To set up a network, follow these steps:
Step 1 Ensure that the Mgmt0 port is connected to the management network.
Step 2 Ensure that the console port is connected to the PC serial port (or to a terminal server), as shown in Figure 7. For
example, on a Windows PC used as a terminal emulator, you can use HyperTerminal. The default baud rate on the
console port is 9600.
Figure 7 Connection to Terminal Emulator.
Teminal
emulator
1
81541
Console port
Note See Figure 1 for the physical location of the Mgmt 0 port and console ports.

Cisco MDS 9148 Specifications

General

Form Factor	1RU
Switching Capacity	768 Gbps
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-40 to 158°F (-40 to 70°C)
Port Speed	4/8/16 Gbps
Throughput	384 Gbps
Latency	Less than 2 microseconds
Power Supply	Dual hot-swappable
Management	CLI
Fibre Channel Zoning	Hardware enforced zoning
Relative Humidity	5 to 95% non-condensing
Dimensions	1.72 x 17.3 x 19.5 inches
