Cisco NCS 5508

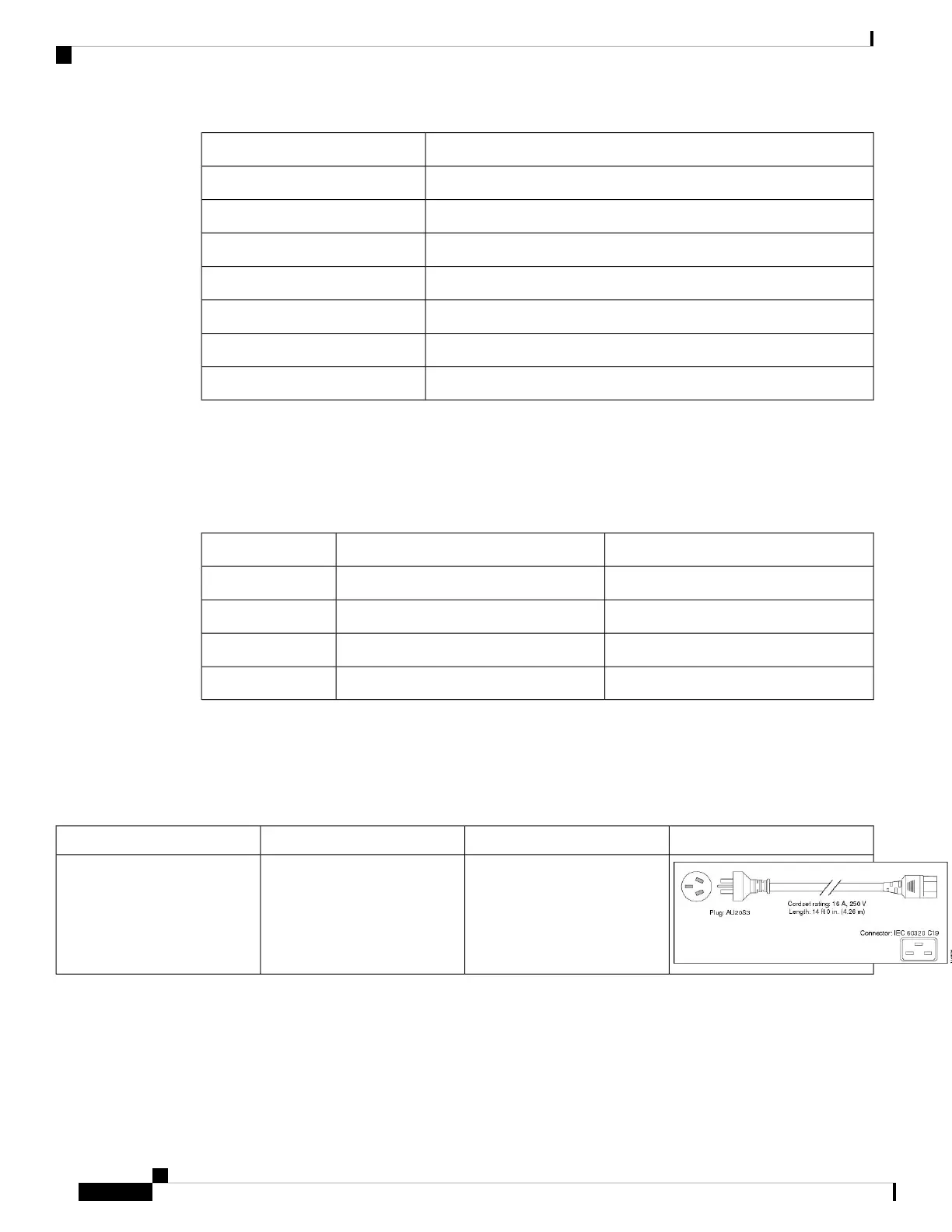

Signal NamePin
TRP0-2
TRP1+3
TRP1-4
TRP2+5
TRP2-6
TRP3+7
TRP3-8
USB Flash or MEM Port Pinouts
The table below summarizes the USB flash or MEM port pinouts.
Table 6: USB Flash or MEM Port Pinouts
DescriptionSignal NamePin
+5 VDCVccA1
Data -D-A2
Data +D+A3
GroundGndA4
Power Supply Power Cord Specifications
Standard AC Power Cords
Power Cord IllustrationCord Set RatingPart NumberLocale
16A, 250 VACCAB-AC-16A-AUSAustralia and New Zealand
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
14
NCS 5500 Series Modular Router Overview
USB Flash or MEM Port Pinouts
