Screws2Side brackets1
The side brackets are not part of the rack mount kit. If you want to adhere to NEBS compliance, you must
install the side brackets that are orderable as part of NEBS door kit.
Note

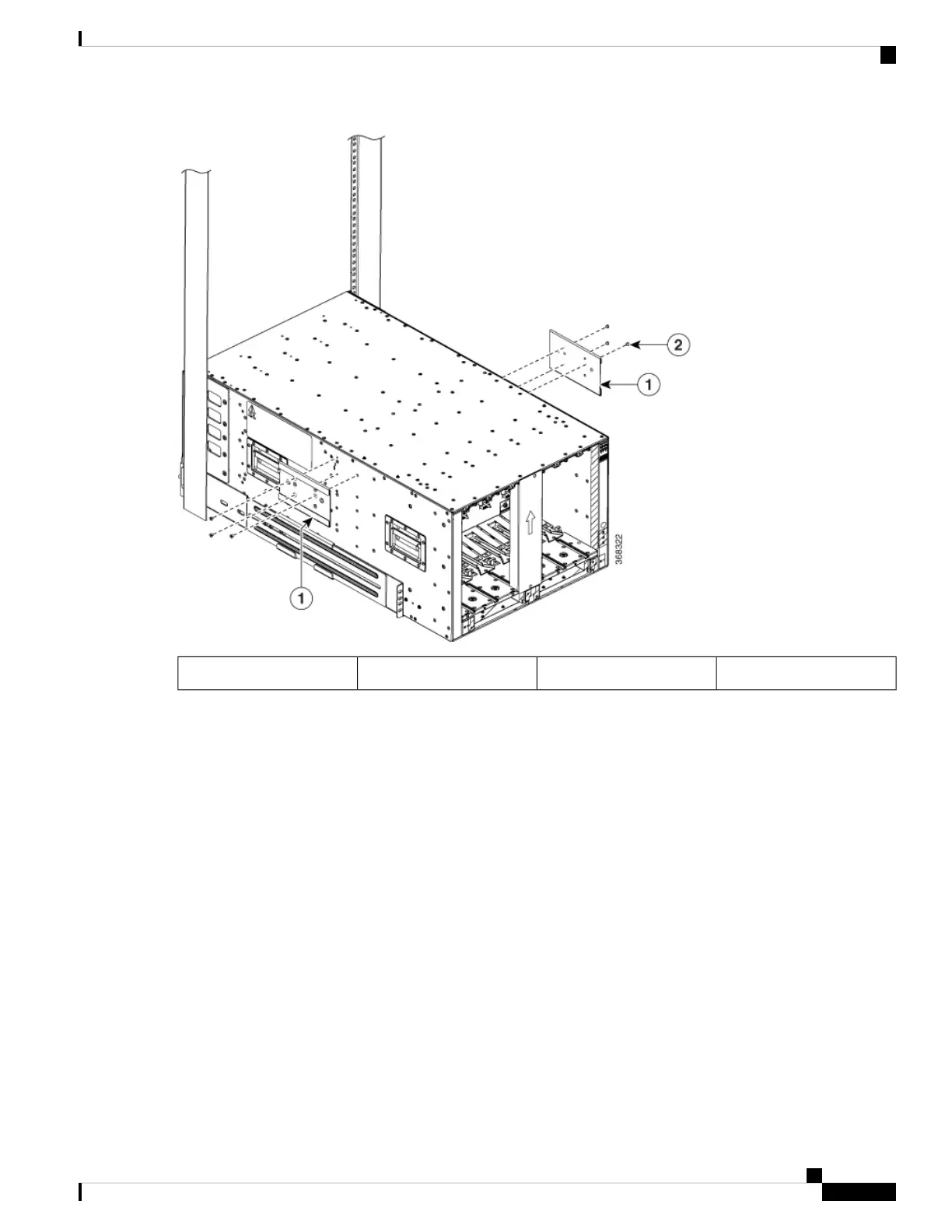

b) Use 6 M4 screws with 12 in-lbs (1.4 N-m) to attach the side bracket to the chassis.
c) Repeat a and b on the other side of the chassis.
d) Slide the rack-mount bracket through the side bracket.
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
37
Install the Chassis
(Only NCS 5504) Install the Rear Chassis Brackets
