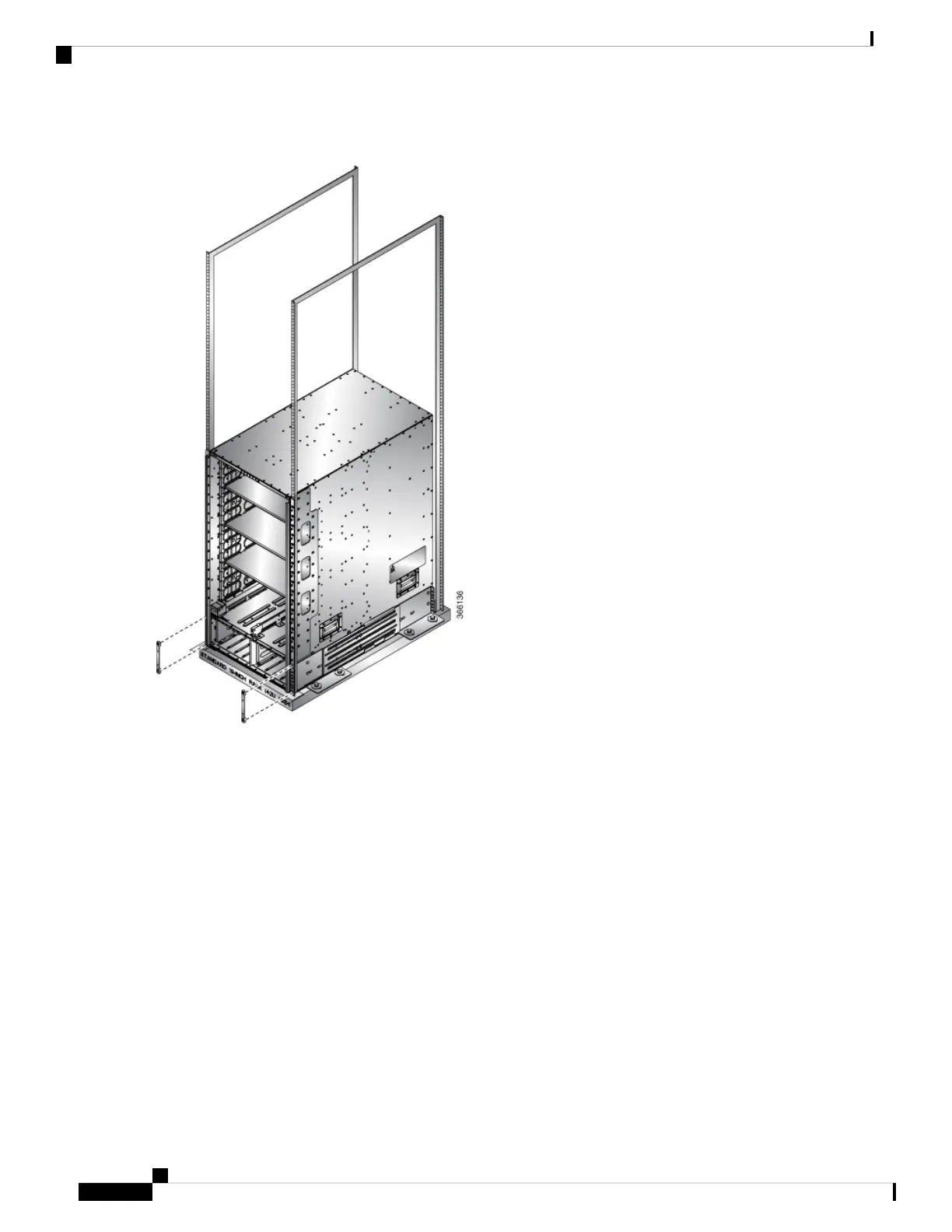

Figure 19: Attach Two Side Extension Bracket on NCS 5516 Chassis
Step 2 Attach the two side filter frame assemblies or the cable management brackets to the chassis as follows:
a) Position one of the side frame assemblies on the vertical mounting bracket attached to one side of the front of the
chassis.
For NCS 5504: Ensure that the upper most 4 screw holes in the assembly align with the screw holes in 4 visible
standoffs on the mounting bracket.
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
50
Install the Chassis
(Optional) Install Air Filter, Cable Management Bracket, or Door Kit on a Chassis
