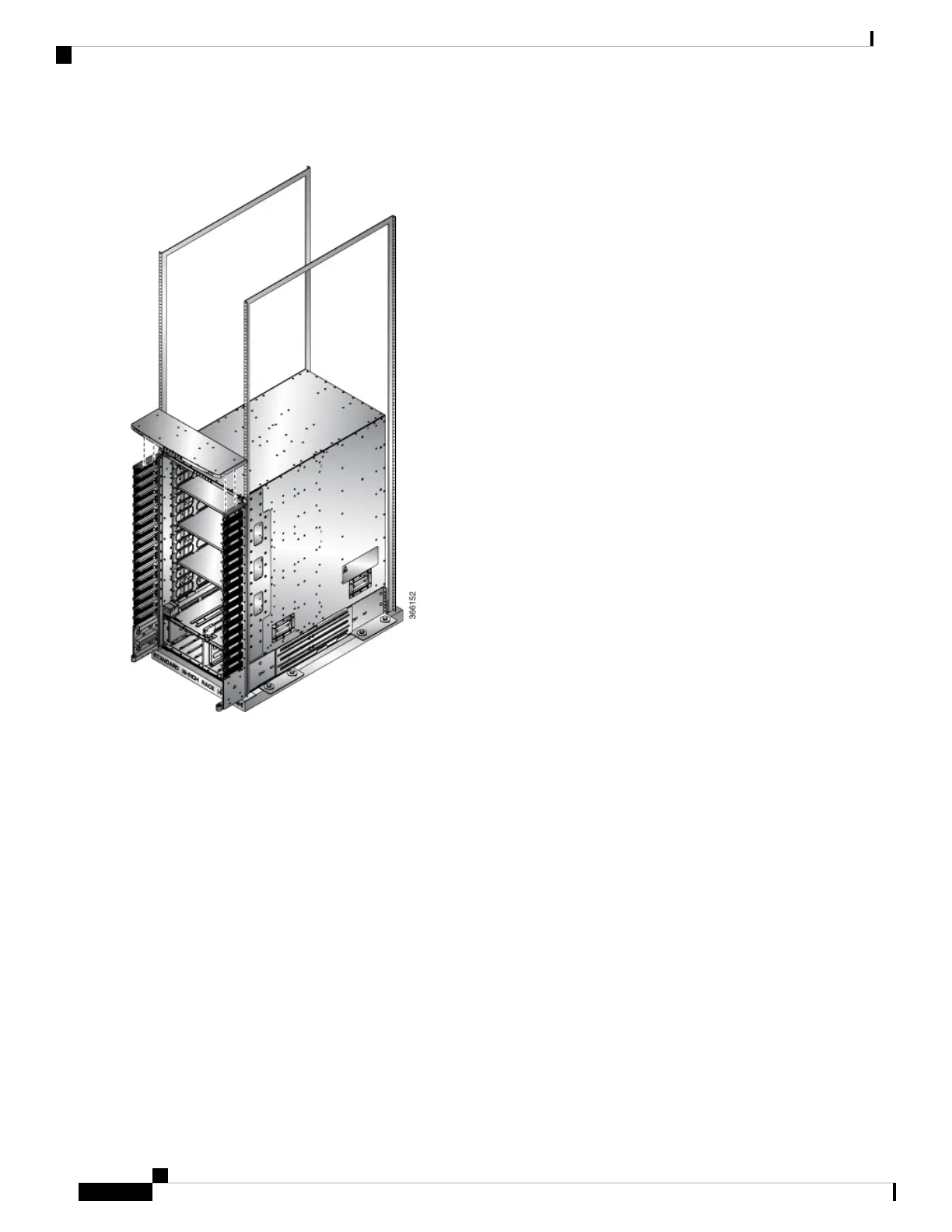

Figure 29: Attach Top Hood to NCS 5516 Chassis and Side Brush Filter Assemblies
a) Place the top hood, with its brackets pointing down, on top of the two side brush filter kit assemblies.
b) Secure the top hood to the two side assemblies by using four M4 x 12 mm flat-head Phillips screws (use two screws
for each assembly). Tighten each screw to 11.5 to 15 in-lb (1.3 to 1.7 N·m) of torque.
Step 6 Attach the divider bracket to the left and right side brush filter kit assemblies as follows:
a) Position the divider bracket between the right and left side brush filter kit assemblies near the bottom of the chassis.
b) Align the two slots on both sides of the bracket with the pins that stick out from the lower side brush filter kit frame
and lower the bracket past the pins until the bracket stops.
c) A screw hole on each side of the divider bracket aligns with a screw hole in each side brush filter kit assembly.
d) Secure the divider bracket to both side brush filter kit assemblies using two M3 x 8 mm screws (one screw for each
of two sides) and tightening the screws to 5 to 7 in-lb (0.56 to 0.79 N.m) of torque.
Step 7 (For NCS 5516 Only): Install the door-stop bracket on the top hood of the side brush filter kit frames by positioning the
door-stop bracket to the bottom divider frame so that its two screw holes align to the two screw holes in the bottom
divider. Ensure that there is a perpendicular edge facing the front. This edge stops the front doors when they are closed.
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
60
Install the Chassis
(Optional) Install Air Filter, Cable Management Bracket, or Door Kit on a Chassis
