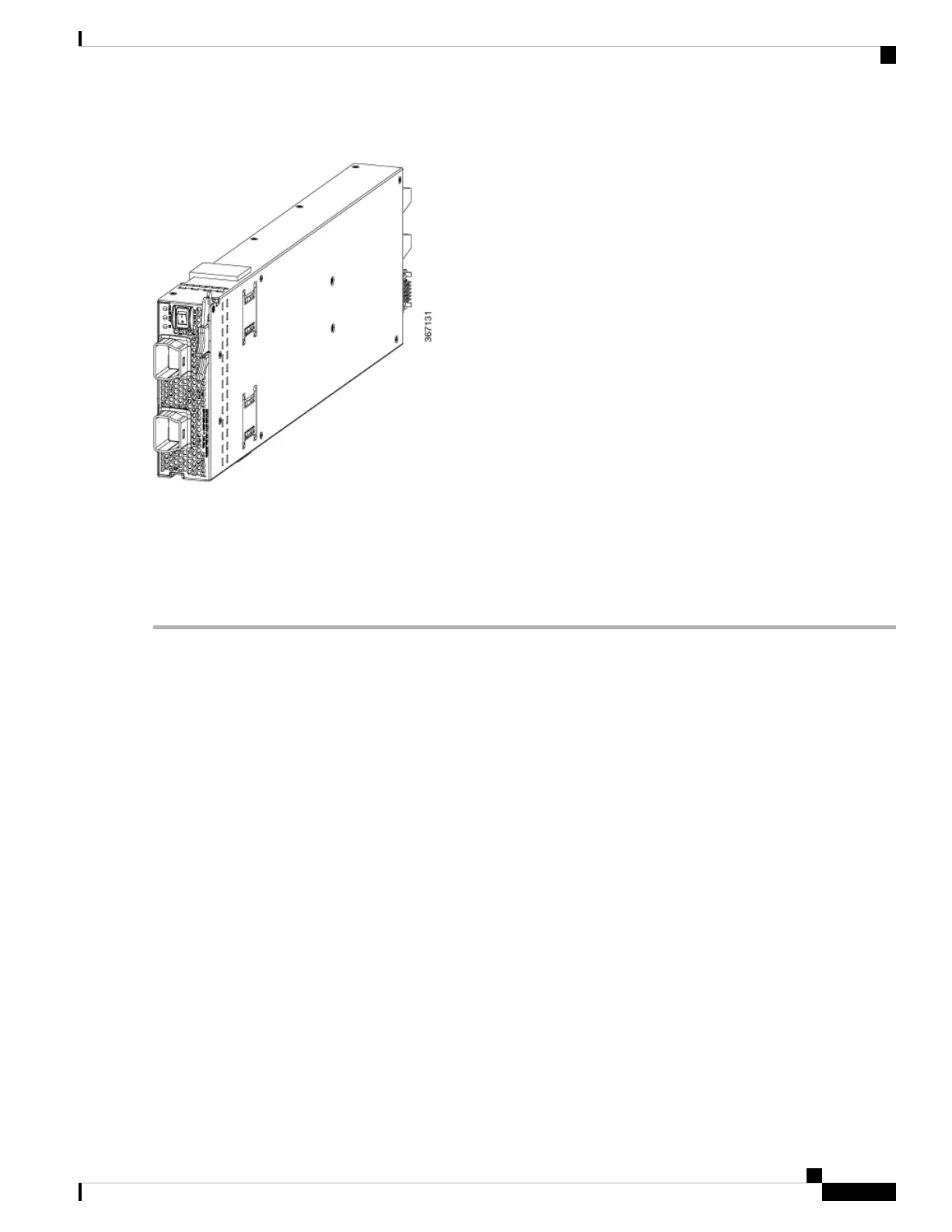

Step 3 Connect the Saf-D-Grid connector on the other end of the power cable to the Saf-D-Grid receptacle on the power supply.
Step 4 Turn on the circuit breaker for the DC power source circuit.
Step 5 Turn on the power supply by pressing its power switch to on (1).
Step 6 Verify that the OUT LED turns on and becomes green.
If you use both inputs, the IN LED is green. If you use only one input, the IN LED is blinking green.
Note
What to do next
Use the power-mgmt redundancy-num-pms number command in System Admin Config mode to convert
the power module redundancy from n+1 to n+x, specifying the number of redundant power modules that the
you want to configure. The total number of functioning power modules in the system is at least x number
more than the number of power modules needed to support the power required for all the cards in the system.
The range is from 0 to 5; 0 means no power redundancy is required.
sysadmin-vm:0_RP0# config
sysadmin-vm:0_RP0(config)# power-mgmt redundancy-num-pms 2
sysadmin-vm:0_RP0(config)# commit
Tue Sep 3 12:17:53.891 UTC
Commit complete.
Use the [no] hw-module attention-led location 0/PMnumber command in System Admin Config mode
to enable or disable the ID LED on the specified power supply.
sysadmin-vm:0_RP0# config
sysadmin-vm:0_RP0(config)# hw-module attention-led location 0/PM2
sysadmin-vm:0_RP0(config-location-0/PM2)# commit
Tue Aug 27 18:59:28.740 UTC
Commit complete.
sysadmin-vm:0_RP0(config-location-0/PM2)# end
sysadmin-vm:0_RP0# show led location 0/PM2
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
77
Install the Chassis
Connect HVAC/HVDC Power Supply to Power Source
