Installing Network Modules in Cisco 2800 Series Routers
OL-5790-01
Installing Slot Dividers in Network Module Slots

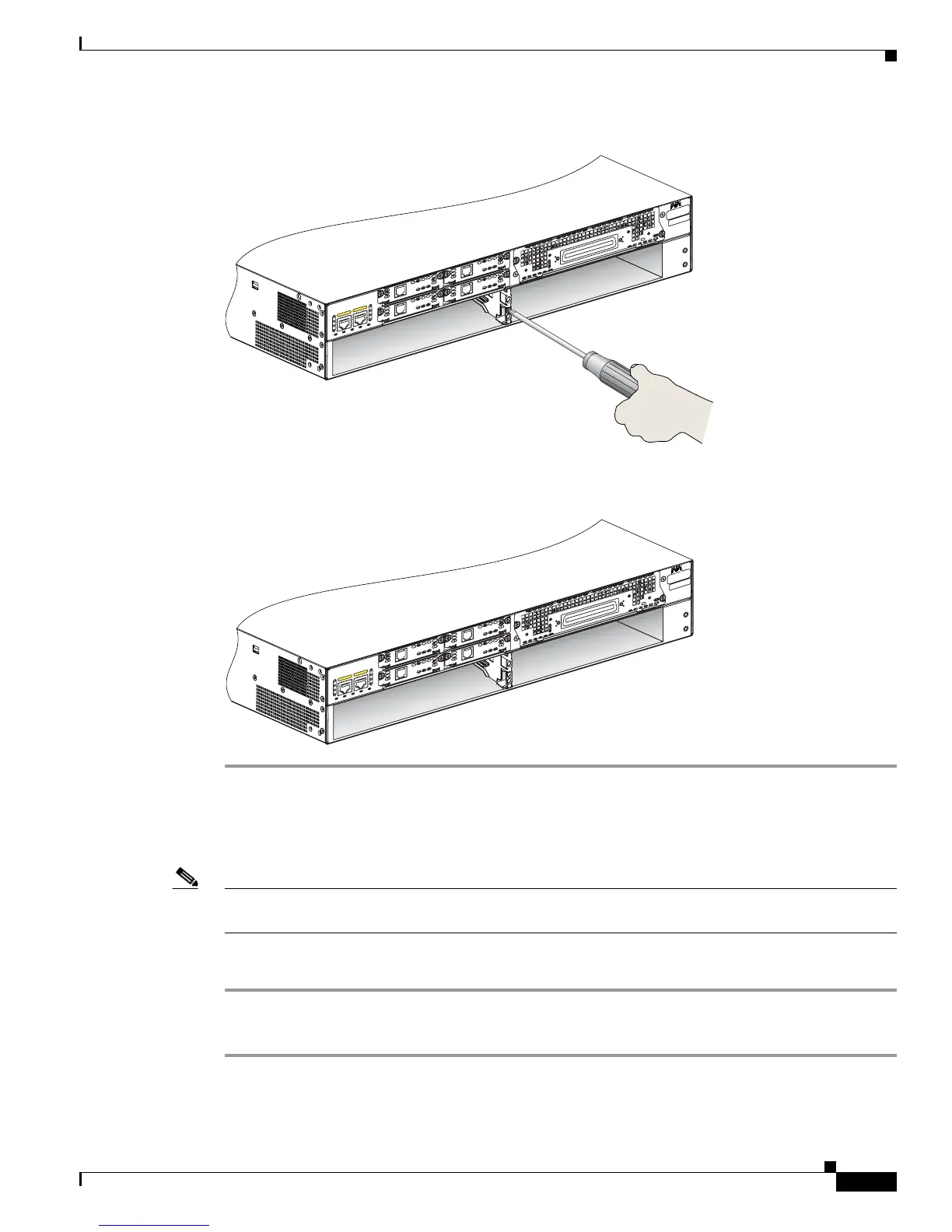

Figure 3 Tightening the Slot Divider in a Network Module Slot
Figure 4 Slot Divider Installed in a Network Module Slot
Removing Slot Dividers from Network Module Slots
Note The network module slots on both sides of a slot divider must be empty before you remove the slot
divider.
Remove slot dividers from network module slots as follows:
Step 1 Loosen the retention screw on the front of the slot divider.
Step 2 Pull the slot divider straight out of the network module slot.
121402
