Installing Interface Cards in Cisco 2800 Series Routers
OL-5791-01
Installing and Removing Slot Dividers
Installing Slot Dividers in HWIC Slots on Cisco 2801 Routers
Figure 1 shows a slot divider for HWIC slots on Cisco 2801 routers.

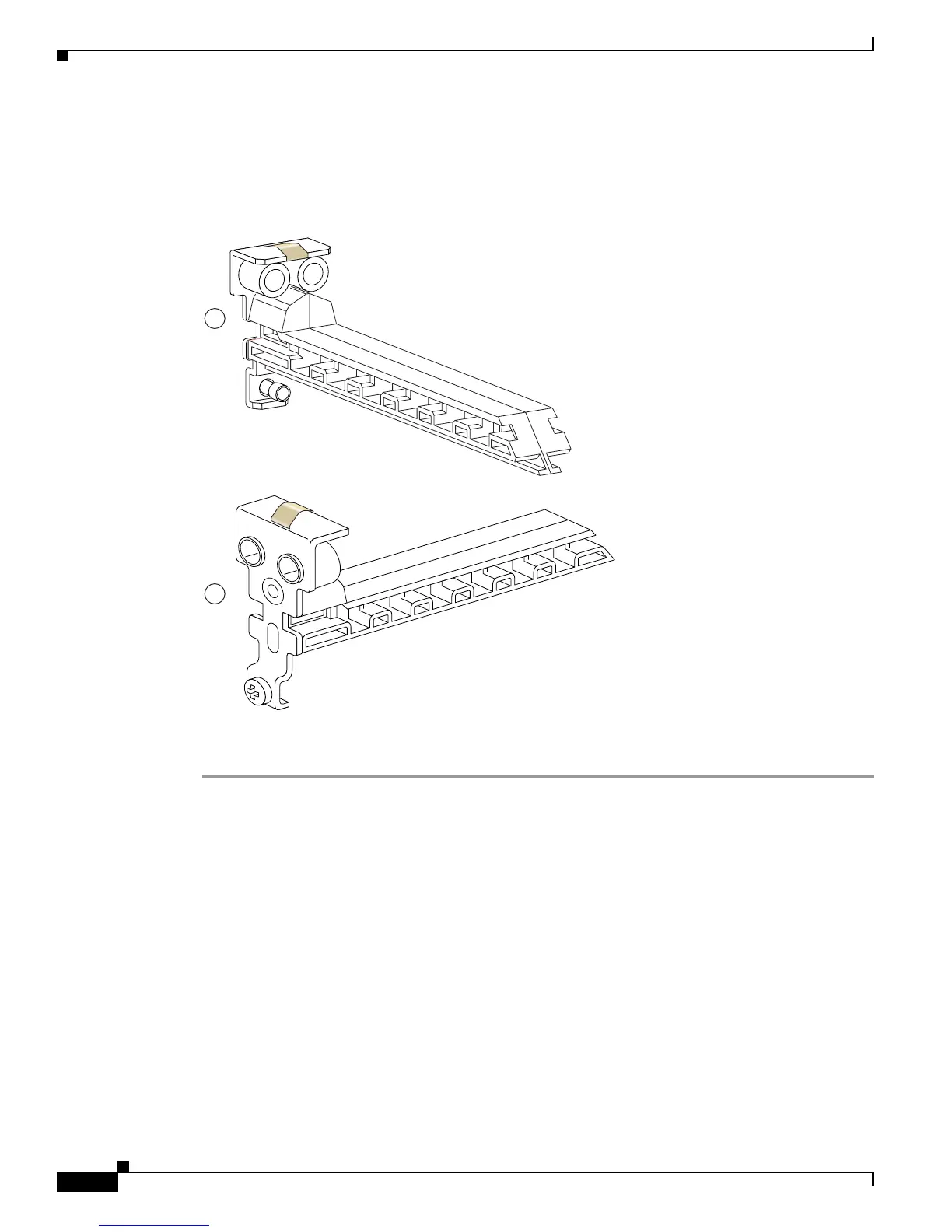

Figure 1 Slot Divider for HWIC Slots on Cisco 2801 Routers
Install slot dividers into HWIC slots on Cisco 2801 routers as follows:
Step 1 Guide the slot divider between the two rails in the bottom of the HWIC slot. Push the slot divider in until
it is fully seated. When the slot divider is fully seated, its outer end is flush with the front panel of the
router. See Figure 2.
121101
1
2
