5
Installing Interface Cards in Cisco 2800 Series Routers
OL-5791-01
Installing and Removing Slot Dividers

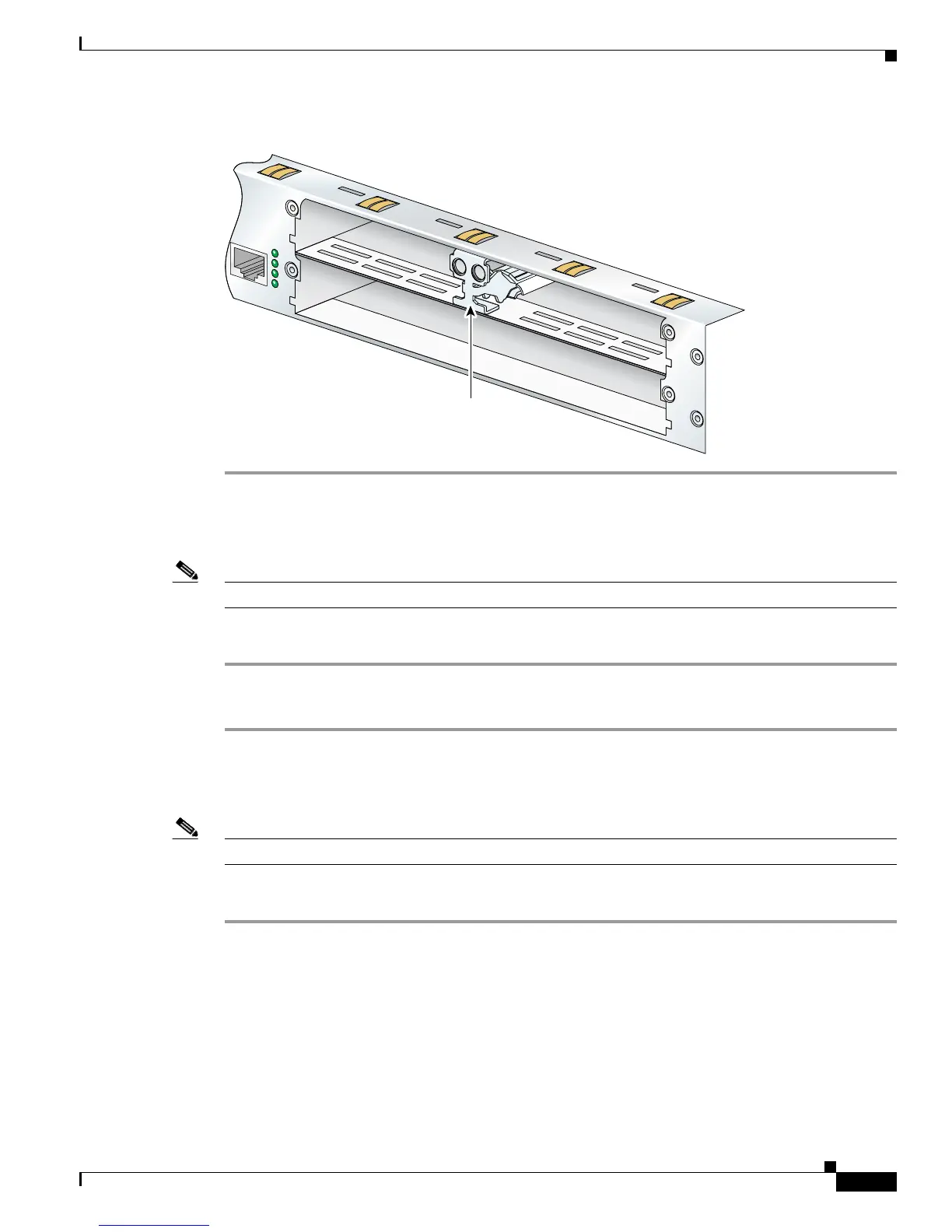

Figure 5 Slot Divider Installed in an HWIC Slot on Cisco 2811, Cisco 2821, and Cisco 2851 Routers
Removing Slot Dividers from HWIC Slots on Cisco 2801 Routers
Note The HWIC slots on both sides of a slot divider must be empty before you remove the slot divider.
Remove slot dividers from HWIC slots on Cisco 2801 routers as follows:
Step 1 Loosen the retention screw on the slot divider.
Step 2 Pull the slot divider straight out of the HWIC slot.
Removing Slot Dividers from HWIC Slots on Cisco 2811, Cisco 2821, and Cisco 2851 Routers
Note The HWIC slots on both sides of a slot divider must be empty before you remove the slot divider.
Remove slot dividers from HWIC slots on Cisco 2811, Cisco 2821, and Cisco 2851 routers as follows:
Step 1 Reach into the HWIC slots on both sides of the slot divider, and squeeze the two halves of the slot divider
together. See Figure 6.
Step 2 Pull the slot divider straight out of the HWIC slot.
117043
Slot divider flush
with external surface
of router
