Installing and Upgrading Internal Modules in Cisco 2800 Series Routers
OL-5792-04
Installing and Removing AIMs

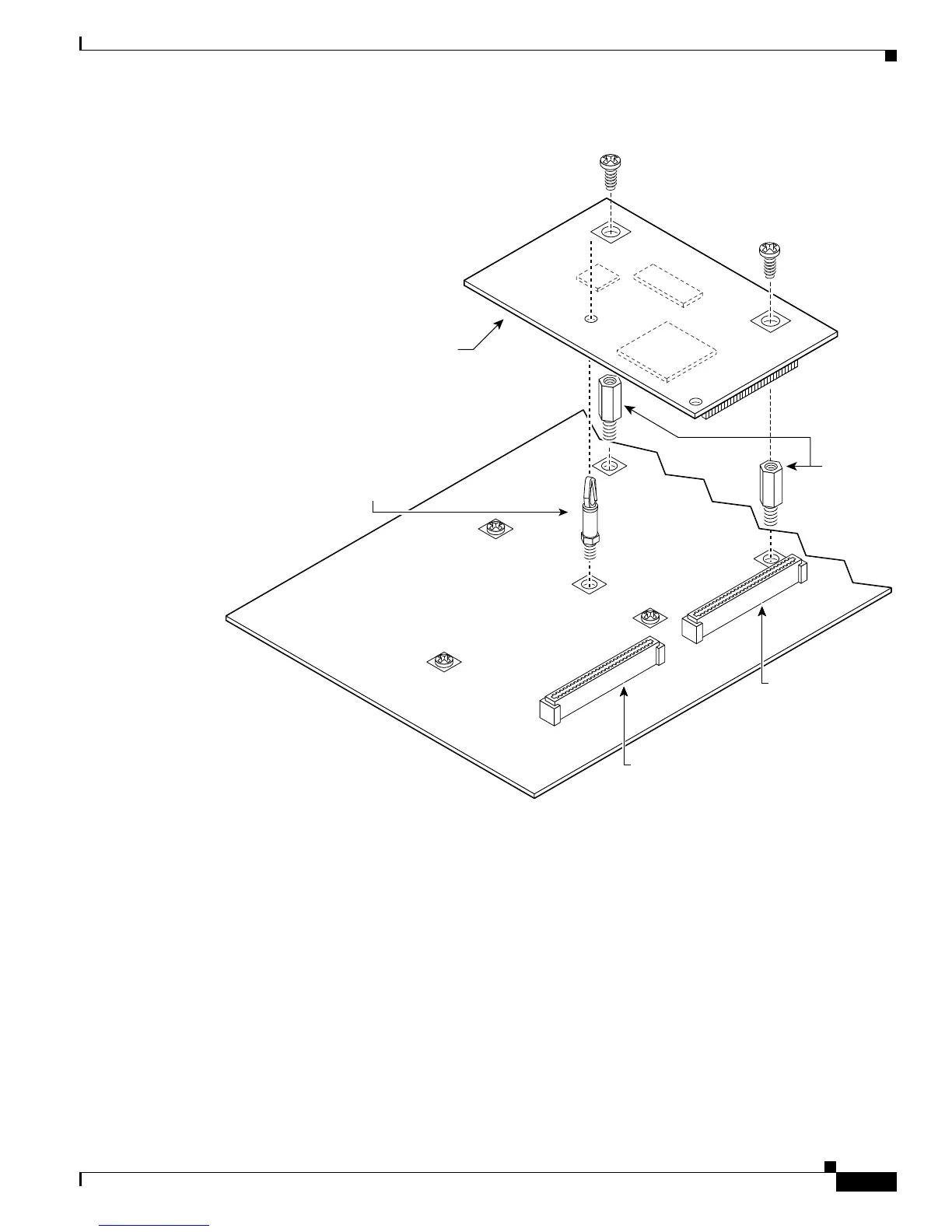

Figure 23 Connecting an AIM to the System Board—AIM Slot 1 Shown
72108
Threaded
plastic standoff
Metal
standoffs
AIM
AIM slot 1
connector
AIM slot 0
connector
