Step 7 Check that the AIM is installed correctly on the system board. (See Figure 24.)

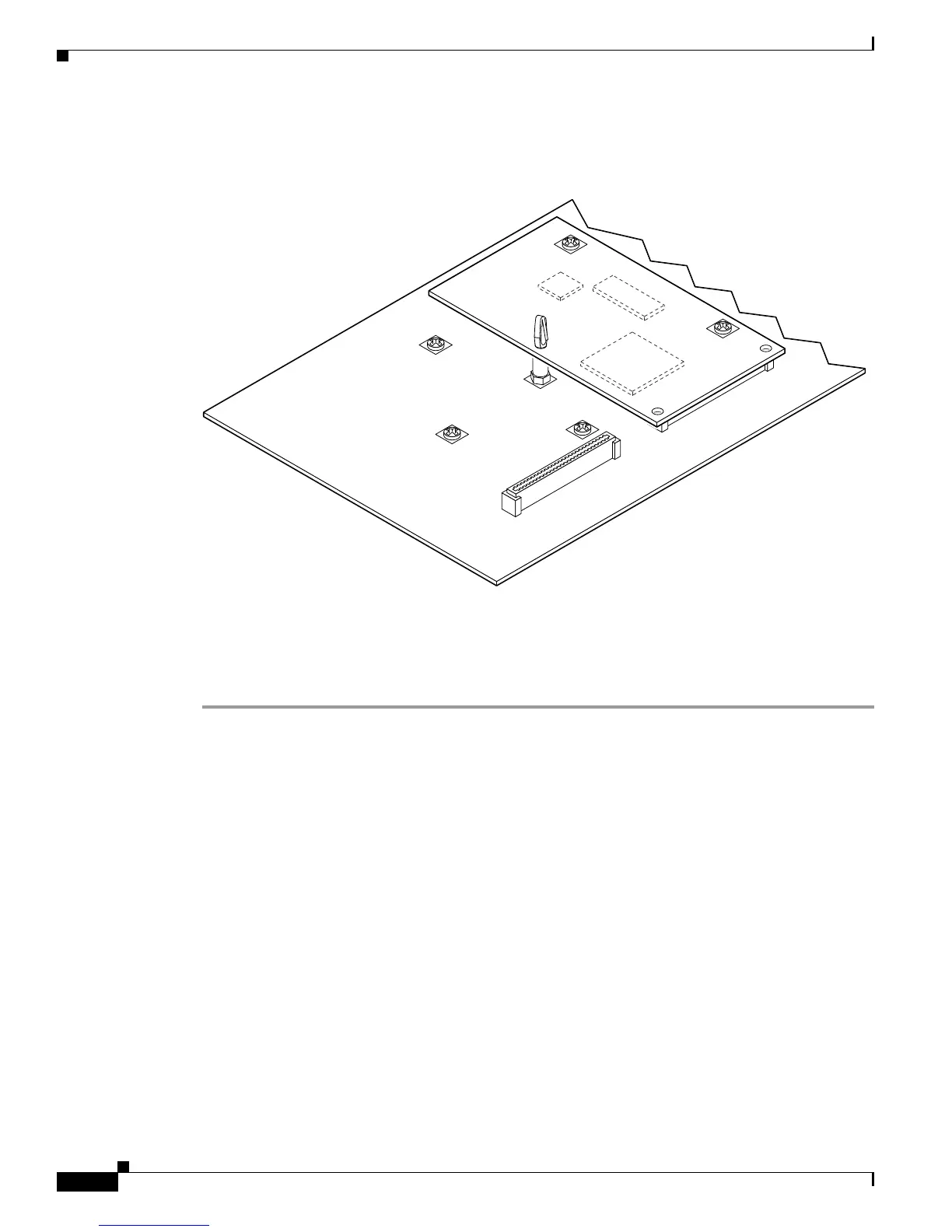

Figure 24 AIM Installed in AIM Slot 1
Step 8
If you are finished installing modules, install the cover on the router. See the “Installing the Chassis
Cover” section on page 51.
Step 9 Apply the AIM label to the outside of the chassis as described in the “Applying the AIM Label” section
on page 26.
