Installing and Upgrading Internal Modules in Cisco 2800 Series Routers
OL-5792-04
Installing and Removing AIMs
Installing a CompactFlash Memory Card on the AIM
Note Not all AIMs require installation of a CompactFlash memory card.
To install a CompactFlash memory card mounted on the AIM, follow these steps:
Step 1 Find the location of the CompactFlash memory card on the AIM. (See Figure 25.)
Step 2 Insert the connector end of the CompactFlash memory card into the connector until the card is seated in
the connector. (See Figure 25 and Figure 26.)
Step 3 Reinstall the AIM as described in “Installing and Removing AIMs” section on page 16.
Step 4 Reinstall the chassis cover as described in the “Installing the Chassis Cover” section on page 51.
Step 5 Refer to the “Verifying AIM Installation” section on page 27 for instructions on formatting the
CompactFlash memory card.

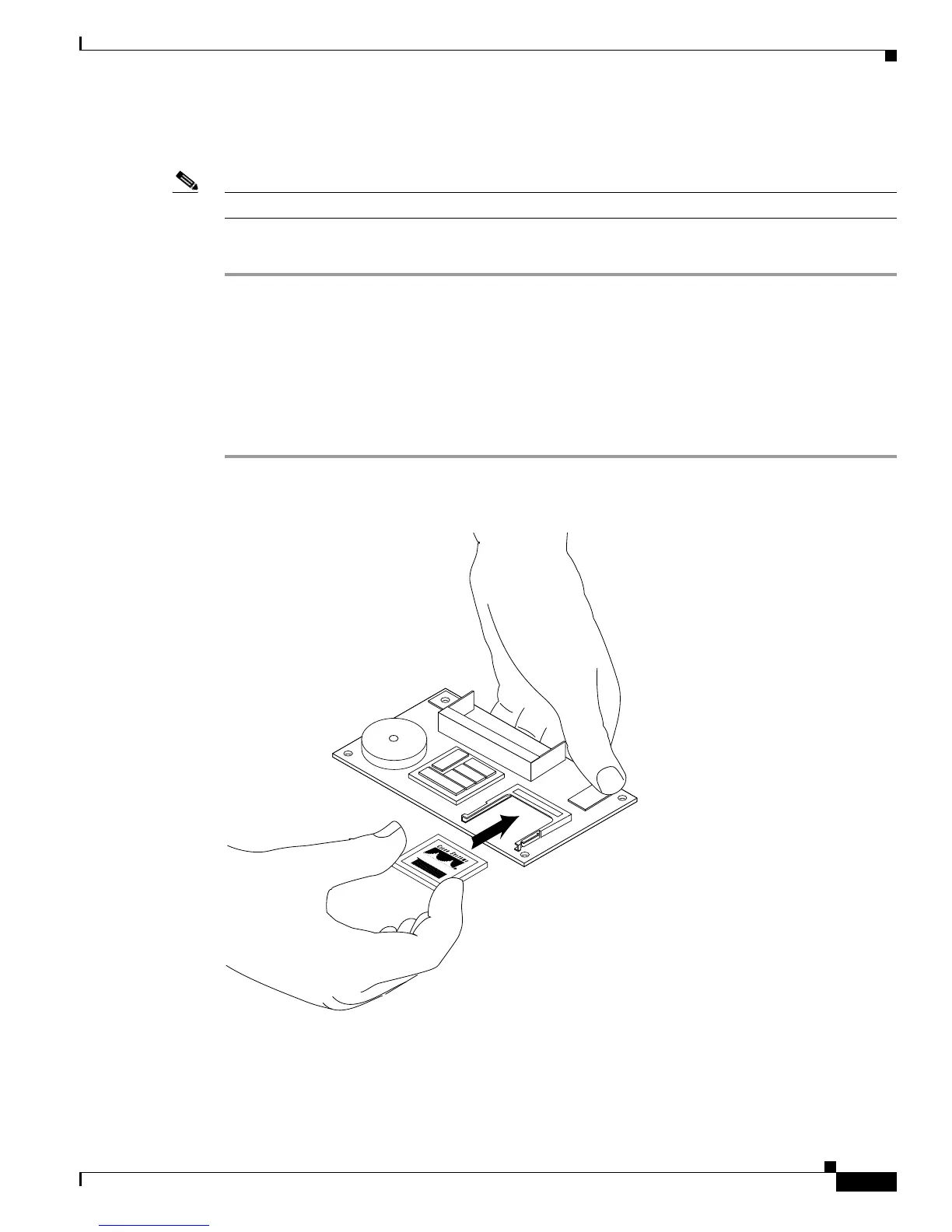

Figure 25 CompactFlash Memory Card Location on the AIM
120375
