Installing and Removing AIMs

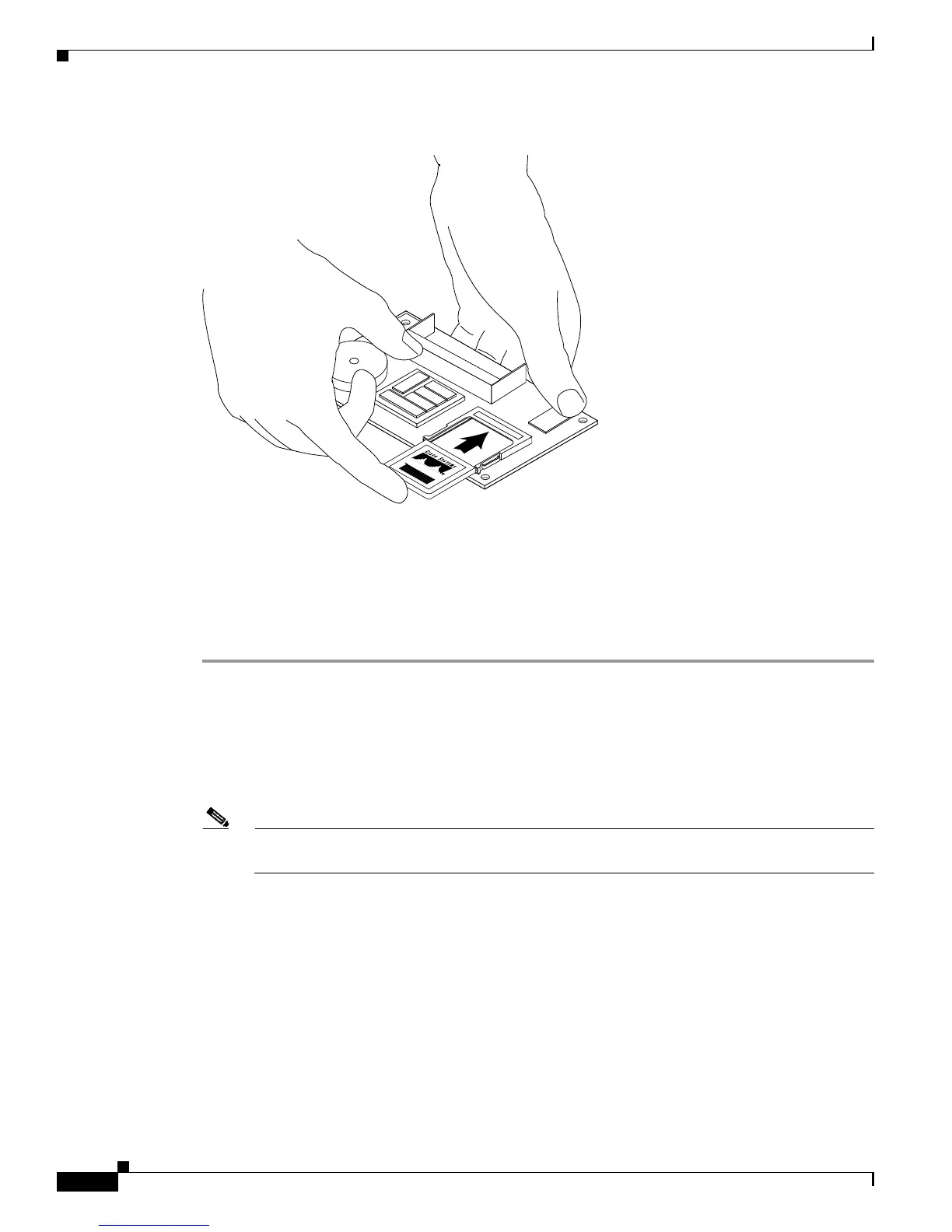

Figure 26 CompactFlash Memory Card Installation on the AIM
Applying the AIM Label
The AIM label for the chassis might be in the AIM mounting kit, or it might be attached to the label on
the AIM card. Apply the chassis label as follows:
Step 1 If the chassis label is attached to the label on the AIM card, carefully tear off the chassis label at the
perforation. If the chassis label is in the AIM mounting kit, remove the label from the kit bag.
Step 2 Peel the chassis label from its backing.
Step 3 If there is a suitable space, apply the chassis label to the back of the chassis. If no suitable space is
available on the back of the chassis, apply the label to the top cover at the back edge. The label must be
visible with the chassis installed. See Figure 27 for a typical label location on the back of a chassis.
Note Do not apply the AIM label to a blank cover plate; to any removable network module or interface
card; or over any holes, screws, or existing labels.
