Installing and Upgrading Internal Modules in Cisco 2800 Series Routers
OL-5792-04
Installing and Removing AIMs

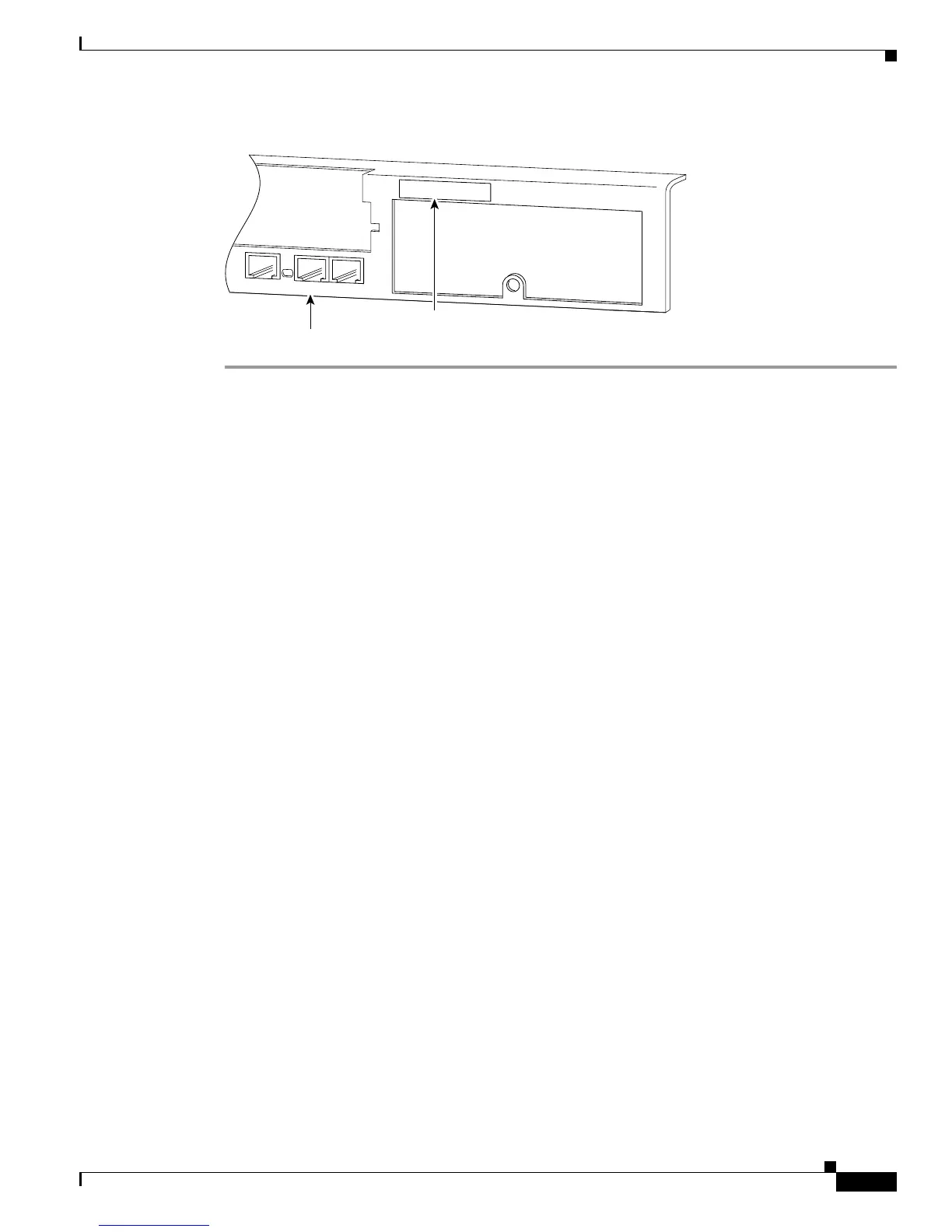

Figure 27 Example of an AIM Label Location on a Chassis
Verifying AIM Installation
Use the show version command to verify that the AIM has been installed correctly. In the following
example, one VPN AIM is recognized by the system. (See the bold entry toward the bottom of the
example. Note that you will see additional output not shown in this example.)
Router# show version
Cisco IOS Software, 2800 Software (C2800-ADVENTERPRISEK9-M), Experimental Versio
n 12.3(20040521:041814) [pgynther-v123_8_t_throttle 107]
Copyright (c) 1986-2004 by Cisco Systems, Inc.
Compiled Fri 21-May-04 00:35 by pgynther
ROM: System Bootstrap, Version 12.3(8r)T1, RELEASE SOFTWARE (fc1)
sjc22-00a-fs-gw2 uptime is 2 days, 16 hours, 17 minutes
System returned to ROM by reload at 17:57:37 PDT Sat Jun 26 2004
System restarted at 17:58:51 PDT Sat Jun 26 2004
System image file is "flash:c2800-adventerprisek9-mz.123-8T-2"
.
.
.
Cisco 2851 (revision 53.51) with 196608K/65536K bytes of memory.
Processor board ID FHK0817F02Q
45 FastEthernet interfaces
5 Gigabit Ethernet interfaces
1 Virtual Private Network (VPN) Module
12 Voice FXS interfaces
DRAM configuration is 64 bits wide with parity disabled.
239K bytes of non-volatile configuration memory.
62720K bytes of ATA CompactFlash (Read/Write)
Configuration register is 0x2102
Use the show diag 0 command to obtain hardware information about an installed AIM. You will see
additional output that is not shown in these examples.
35622
AIM-VPN/EP II
AIM label
Rear of chassis
