Figure 7: Attaching the Top Hood to the Chassis and Cable Management Assemblies

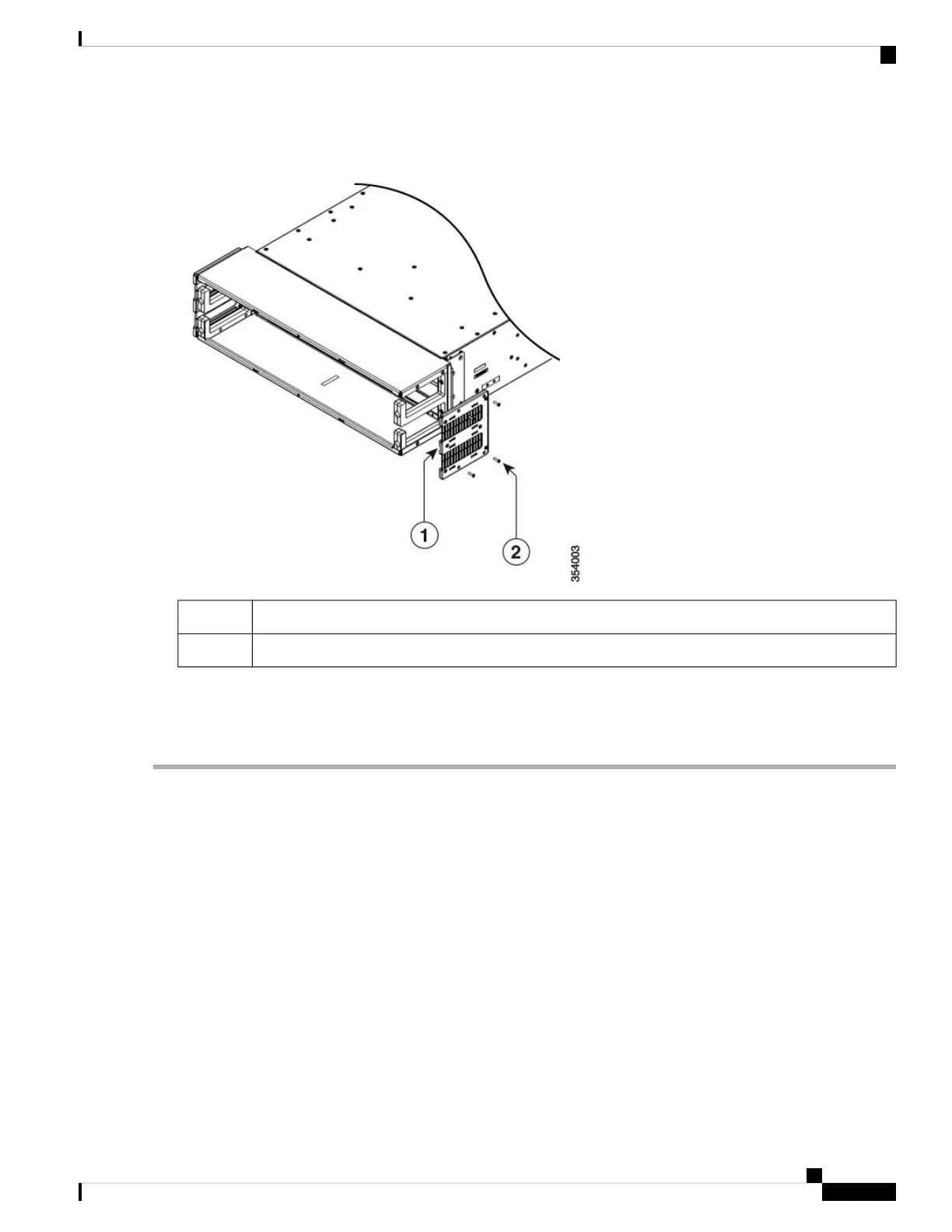

Side filter assembly1
Four M3 screws to secure the side filter to the cable management assembly.2
b) Attach the side filter assembly to the cable management assembly.
c) Use the 4 M3 screws to secure the side filter to the cable management assembly.
d) Repeat Steps 2a through 2c to attach the side filter assembly on the other side of the cable management assembly.
What to do next
You are ready to attach the optional door to the cable management frames.
Attaching the Front Door to the Chassis
Before installing the front door to the chassis, you must install an air filter to the front door.
Before you begin
• Verify that the cable management frames are attached to the chassis.
• Verify that you have the following tools and equipment:
• Optional front door kit
Installing the Switch Chassis
13
Installing the Switch Chassis
Attaching the Front Door to the Chassis
