Clearance Requirements
You must provide the chassis with adequate clearance between the chassis and any other rack, device, or
structure so that you can properly install the chassis, route cables, provide airflow, and maintain the switch.
For the clearances required for an installation of this chassis in a four-post rack, see the following figure.

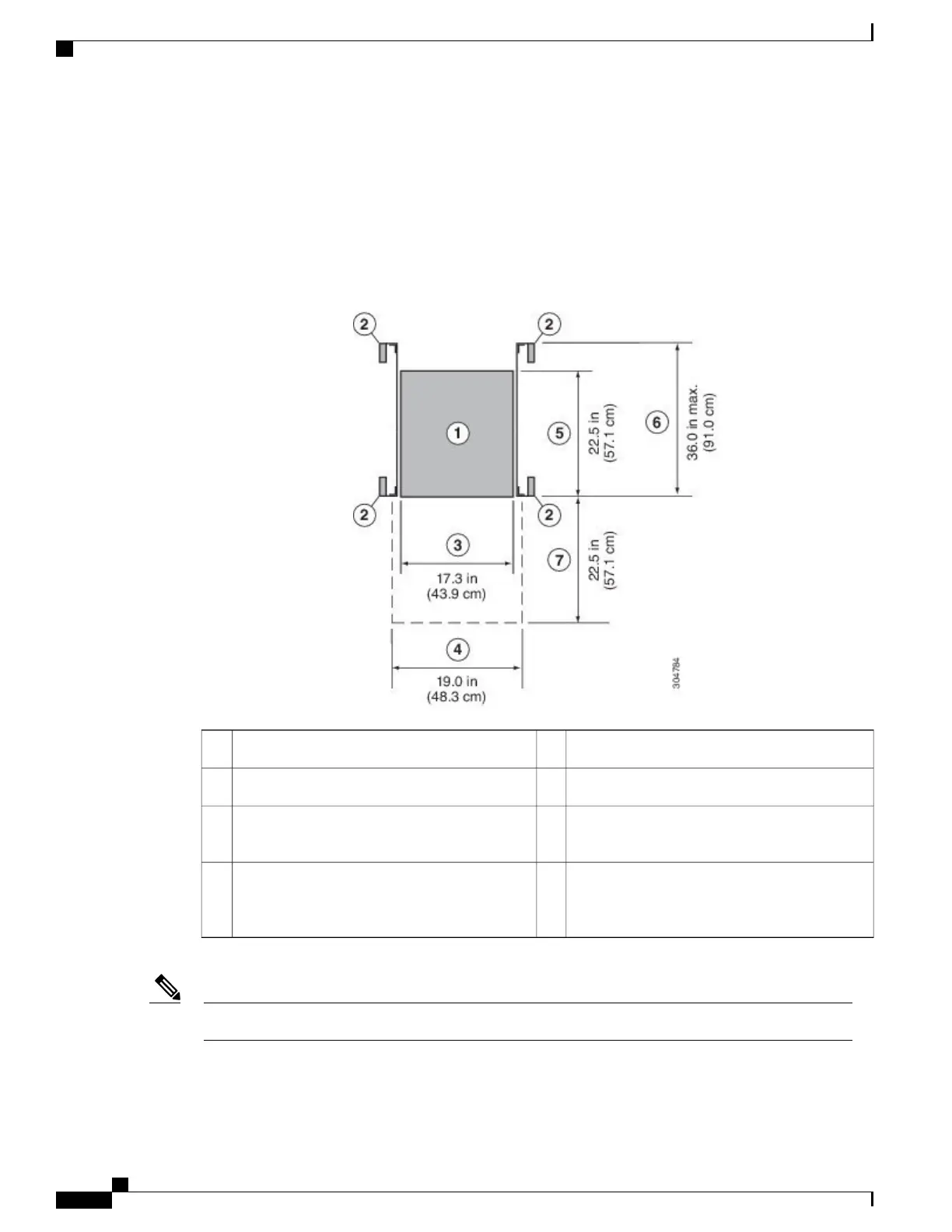

Figure 3: Clearances Required for a Four-Post Rack Installation
Depth of the chassis5Chassis1
Maximum extension of the bottom-support rails6Vertical rack-mount posts and rails2
Depth of the front clearance area (this equals the
depth of the chassis)
7Chassis width3
Width of the front clearance area (this equals
the width of the chassis with two rack-mount
brackets attached to it)
4
Both the front and rear of the chassis must be open to both aisles for airflow.Note
