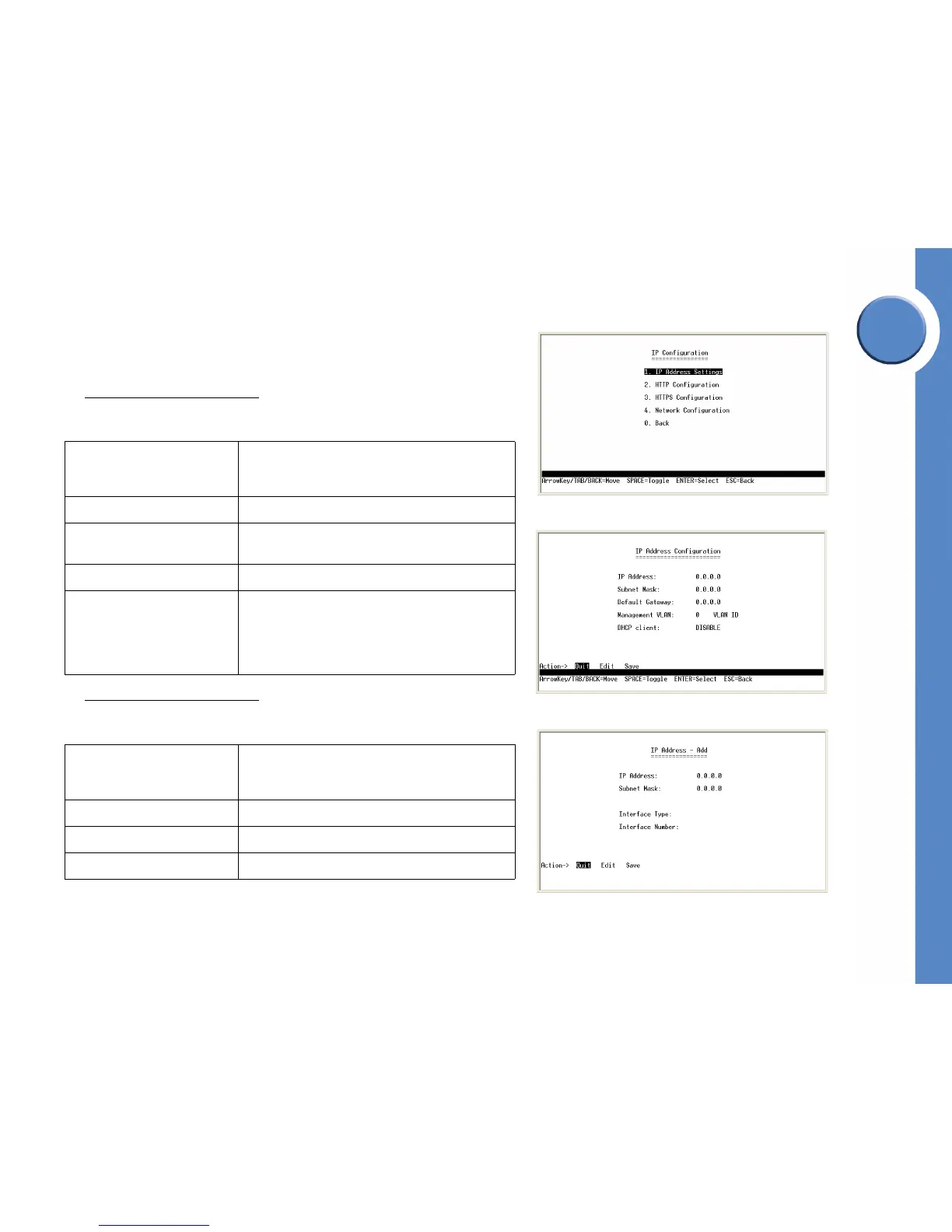

Chapter 4: Console Configuration
Configuring the Switch through the Console or Telnet Interface
Linksys One Ready Communications Solution
IP Configuration
The IP Configuration screen displays these choices: the IP Address Settings, HTTP, HTTPS
Configuration, and Network Configuration of the Ethernet switch.
IP Address Configuration (Layer 2)
The IP information of the Ethernet switch is displayed here.
IP Address Configuration (Layer 3)
The IP information of the Ethernet switch is displayed here.
IP Address The IP Address of the Ethernet switch is displayed.
Verify that the address you enter is correct and does
not conflict with another device on the network.
Subnet Mask The subnet mask of the Ethernet switch is displayed.
Default Gateway The IP address of your network’s default gateway is
displayed.
Management VLAN The VLAN ID number is displayed.
DHCP client The status of the DHCP client is displayed. If you
want the Ethernet switch to be a DHCP client, then
select ENABLE. If you want to assign an static IP
address to the Ethernet switch, then enter the IP
settings and select DISABLE.
IP Address The IP Address of the Ethernet switch is displayed.
Verify that the address you enter is correct and does
not conflict with another device on the network.
Subnet Mask The subnet mask of the Ethernet switch is displayed.
Interface Type The type of interface.
Interface Number The number of the interface.

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
