Cisco SPA 504G Setup And User Guide

________________________________________________________________
Copyright © 2005-2012
5/14
Diag
No

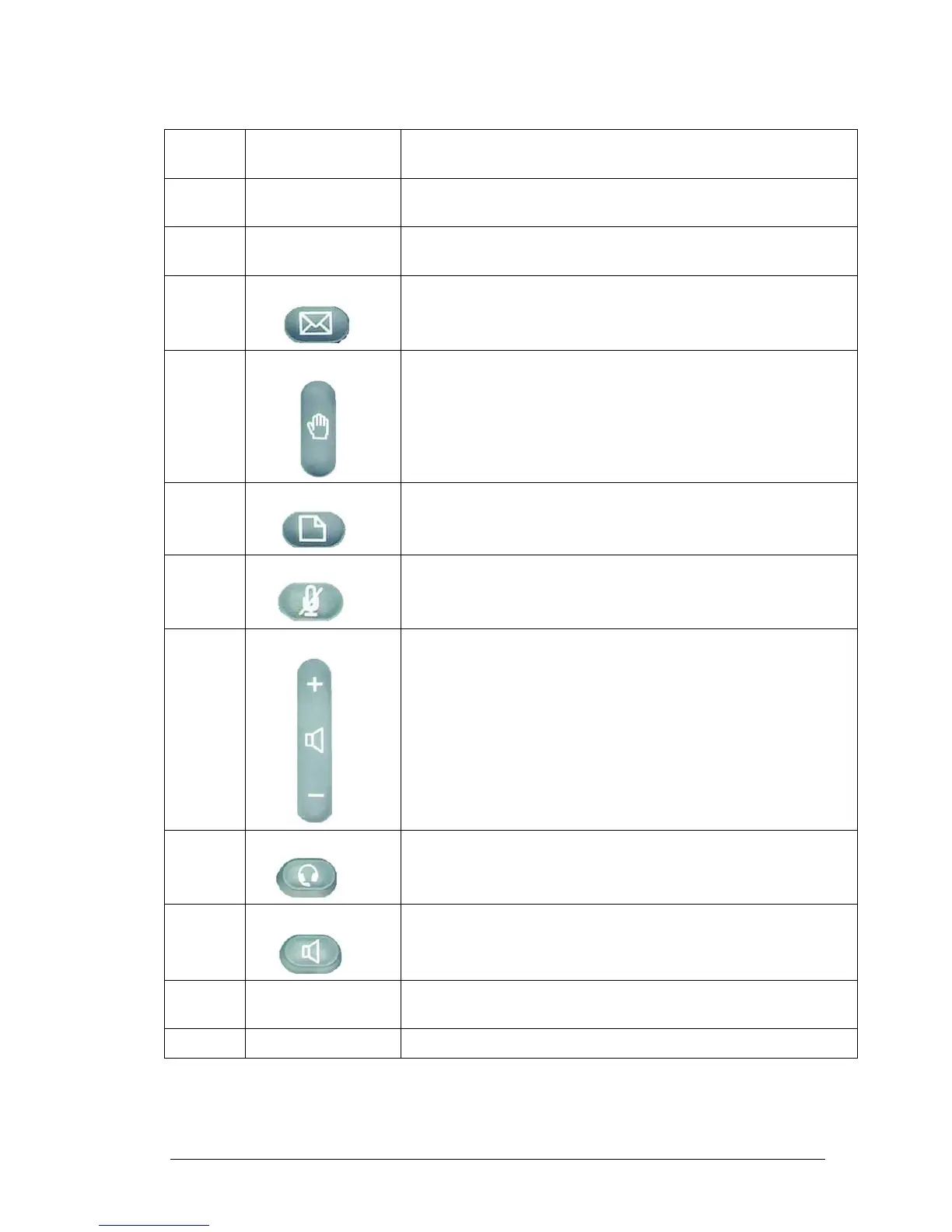

Phone Feature
Description
5
Soft Keys
Press a soft key to perform the action shown on the
lable on the LCD Screen above
6
Navigation Pad
Press an arrow key to scroll left, right, up or down
through items shown on the LCD screen
7
Messages Button
Press to access Voice mail
8
Hold Button
Press to place a call on hold
9
Setup Button
Press to access a menu to configure phone feature
and preferences
10
Mute Button
Press to mute or unmute the phone. When the phone
is muted, the button glows red.
11
Volume Button
Press + to increase the volume and – to lower the
volume of the
Handset
Headset
Speaker (when the handset is off the phone)
Ringer volume (when the handset is on the phone)
12
Headset Button
Press to turn the headset on or off. When the headset
is on the button glows green
13
Speaker Button
Press to turn the speaker on or off. When the speaker
is on the button glows green
14
Keypad
Use to dial phone numbers, enter letters and choose
menu items
15
Headset Port
2.5mm Jack plug for headset (in side of phone)

Cisco SPA 504G Specifications

General

Lines	4
Protocols	SIP, SPCP
Speakerphone	Yes
Ethernet Ports	2 (10/100 Mbps)
Power over Ethernet (PoE)	Yes
Voice Codecs	G.711, G.726, G.729
Headset Port	Yes (2.5mm)
Display	Monochrome LCD
