D15119.02 MX700 and MX800 Administrator Guide TC7.2, AUGUST 2014. www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
126
Cisco TelePresence MX700 and MX800 Administrator Guide
Connecting the Touch 10 user interface
Connecting Touch 10 to the video system via
the network (LAN)

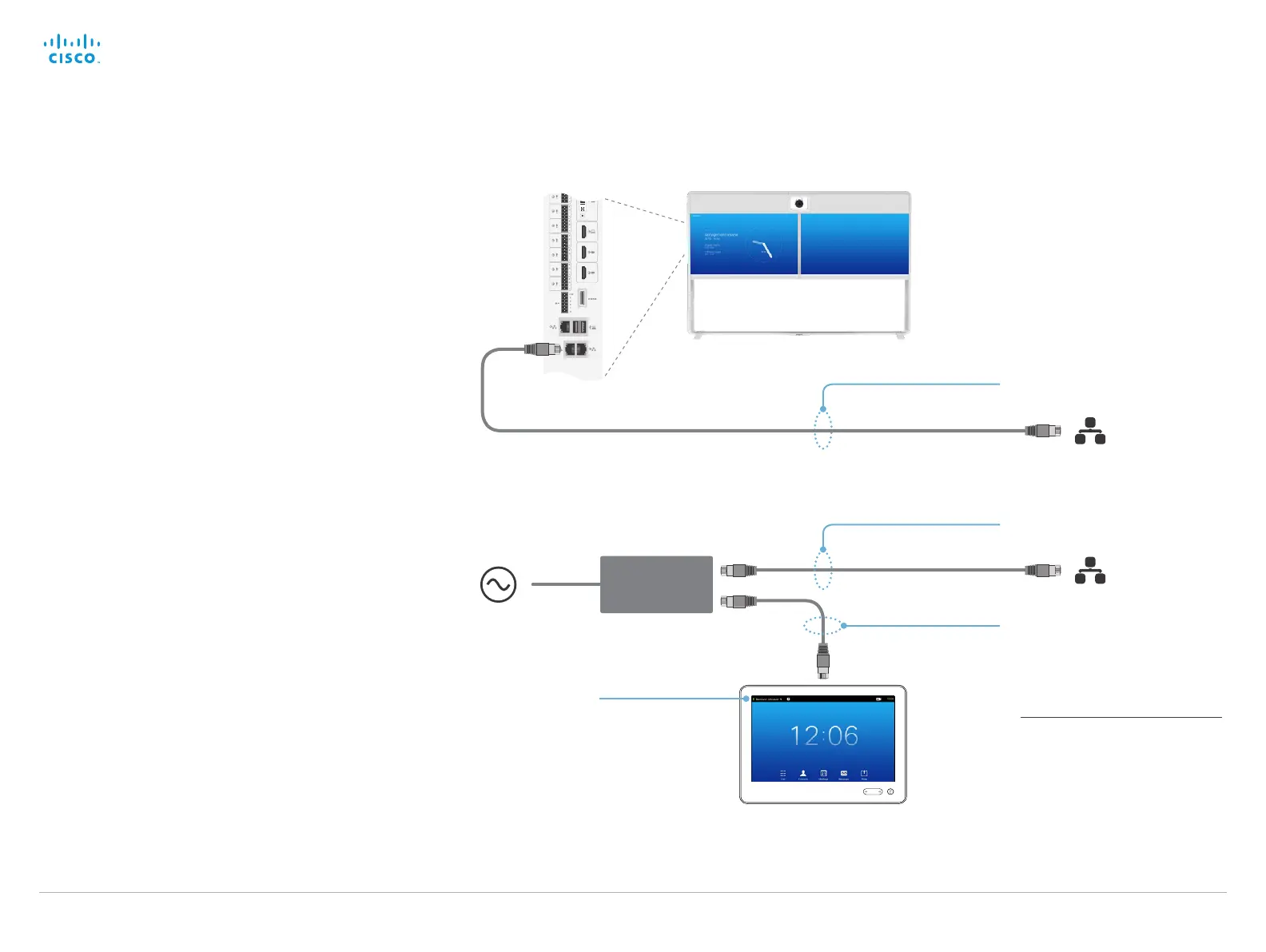

Connect Touch 10 and the video system to the network wall
socket or network switch as illustrated.
Touch 10 set-up
Once Touch 10 is connected to power, the set-up procedure
begins. Follow the instructions on screen.
When the Select codec to pair with dialog appears, note the
following:
• A list of video systems signalling that they are available
for paring will show up in the dialog. Tap the name of the
system you want to pair to followed by Start Pairing.
Note that the following must be fulfilled for a video system
to show up in the list:
• The video system and Touch 10 must be on the same
subnet.
• The video system must have been restarted within
the last 10 minutes. If your system does not appear in
the list, try restarting it.
• If your video system does not appear in the list of
available codecs, you can pair the devices manually. Click
Select codec manually..., enter the IP address or host
name of the video system, and tap Start Pairing.
• You have to enter the video system’s administrator
username and password for the paring to commence.
If Touch 10 needs software upgrade, new software will be
downloaded from the video system and installed on the unit
automatically as part of the set-up procedure. Touch 10
restarts after the upgrade.
You can verify that Touch 10 is successfully connected to the
video system by checking that the video system's address is
displayed in the top banner.
(page 2 of 2)
Video system address
PoE
injector
AP
SWITCH
The Ethernet connector
is behind the lid at the
rear of Touch 10.
PoE rated Ethernet cable
Power
• 100-240 VAC
• 50/60 Hz
Network (LAN)
1
1
If the network infrastructure provides
Power over Ethernet (PoE), you do
not need a PoE injector; Touch 10
should be connected directly to the
wall socket (Ethernet switch) with a
PoE rated Ethernet cable.
For safety, the PoE source must be
in the same building as Touch 10.
The PoE rated Ethernet cable can be
up to 100 m (330 ft).
Standard Ethernet cable
Network (LAN)
Standard Ethernet cable
To Next Page
