Cisco TelePresence MX700 and MX800 Administrator Guide
Local layout control

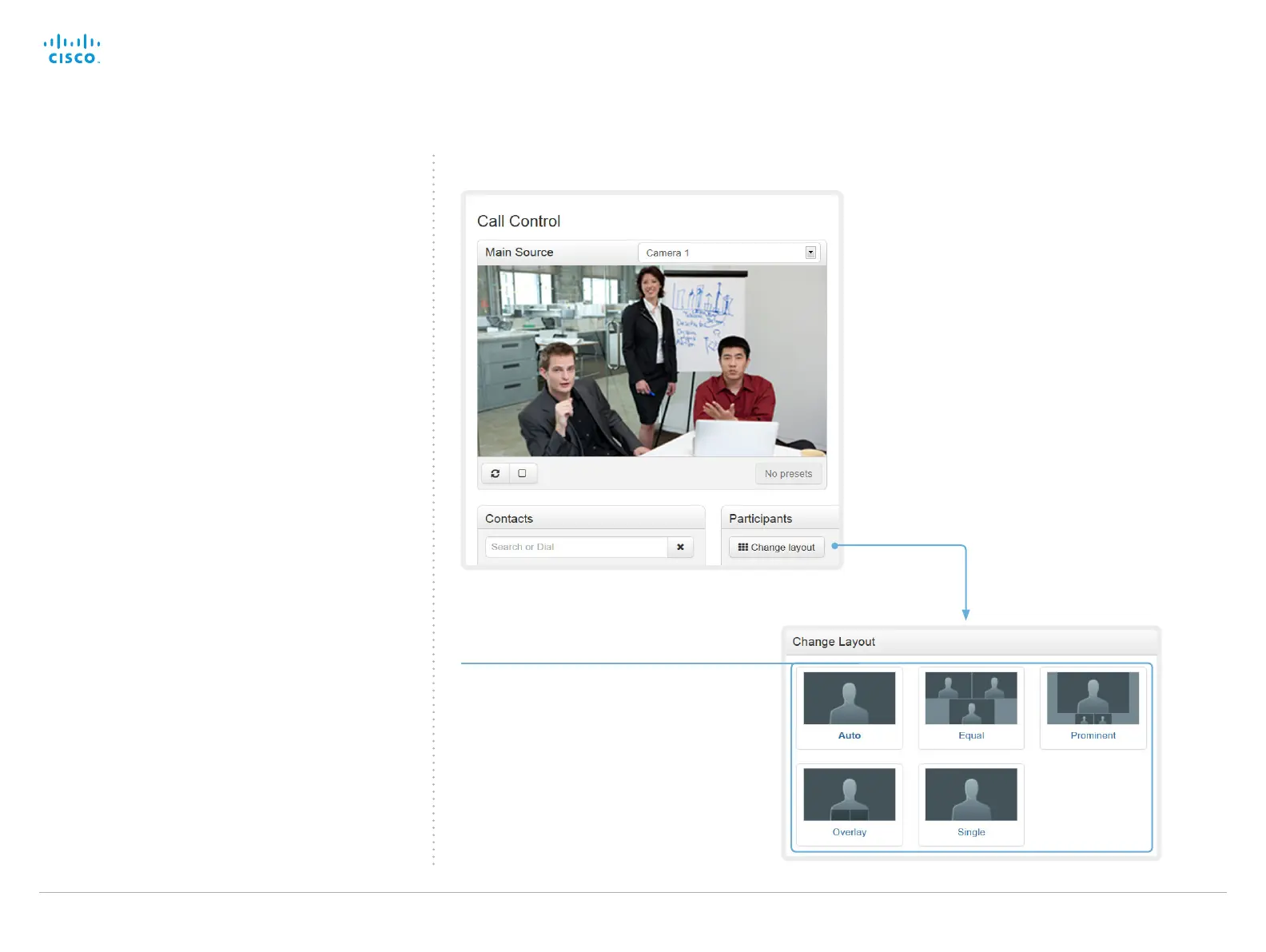

You can choose a local layout using the Call Control page.
The term layout is used to describe the various ways the
videos from the conference participants and a presentation
can appear on the screen. Different types of meetings may
require different layouts.
Change the layout
Click Change layout, and choose
your preferred layout in the window
that opens.
The set of layouts to choose
from depends on the system
configurations.
You may change the layout while
in a call.
Navigate to: Call Control
