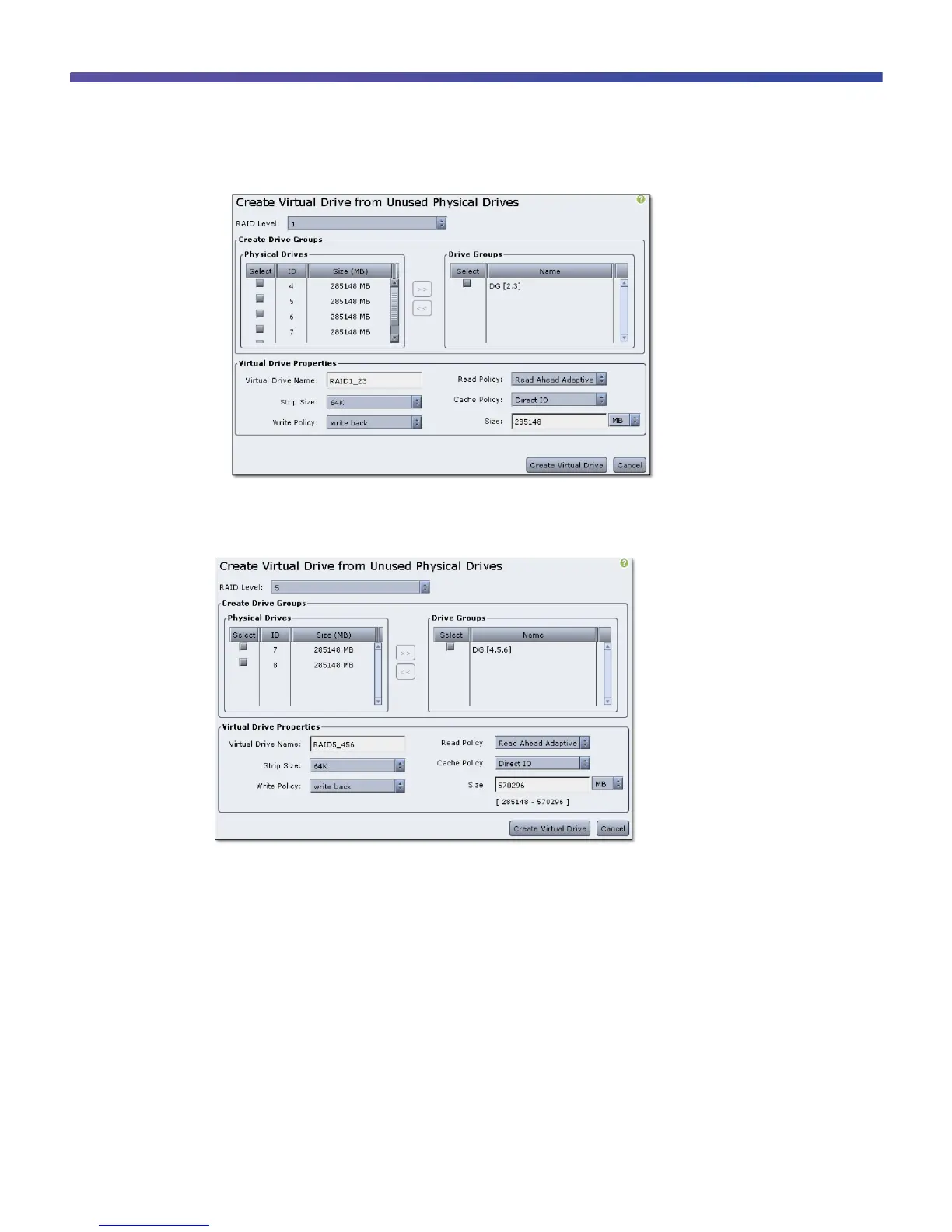

◦ When at least two physical drives are selected, the Create Virtual Drive button is active.
●
RAID 5 and 6 require a minimum of three physical drives to create a RAID volume. Select the drives and
click the >> button to create the drive group. Then click the Create Virtual Drive button at the bottom to
create a virtual drive.
