Cisco UCS C220 M3 Configuration Guide

© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public. Page 19 of 33

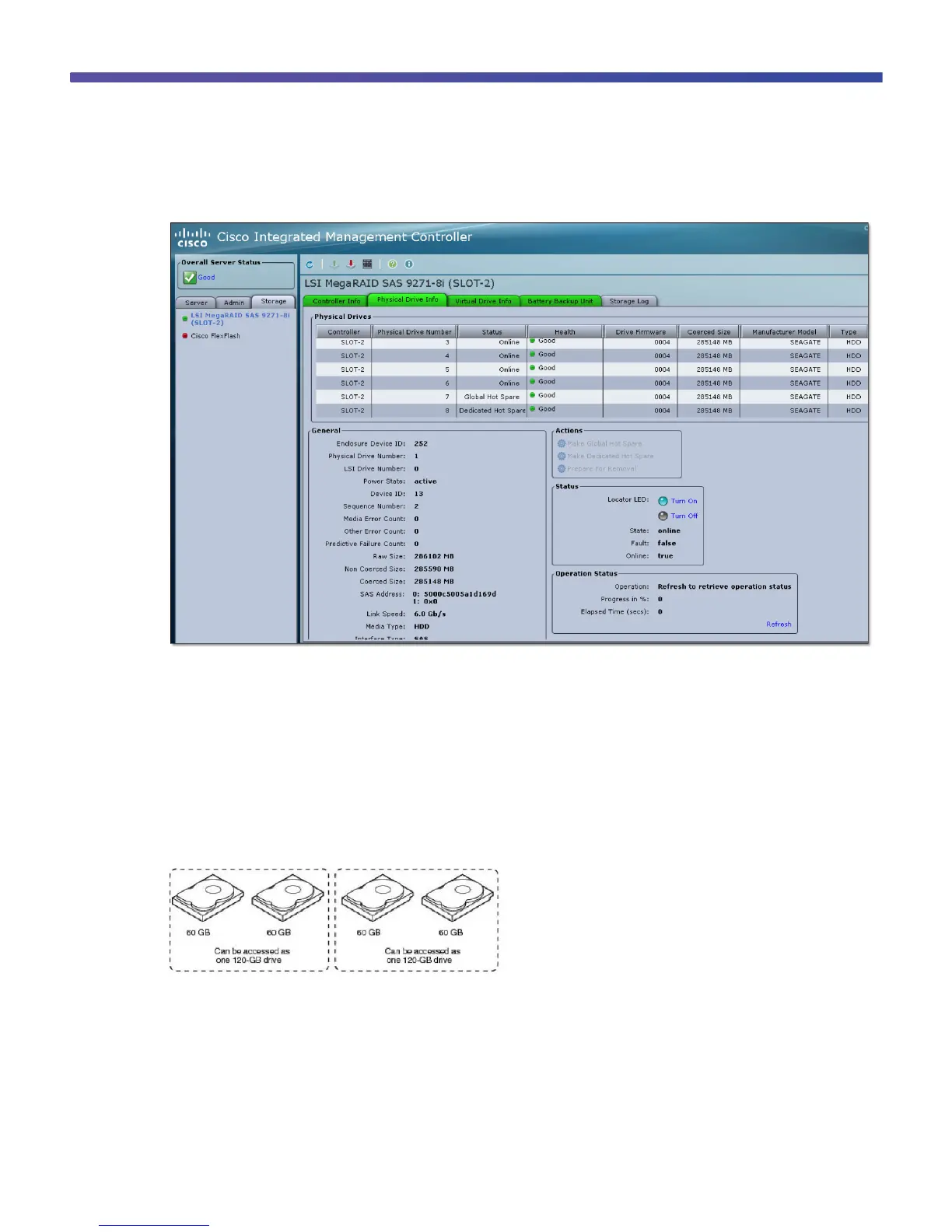

Step 4: Click the Make Dedicated Hot Spare button. After you click the button, the drive status will be changed to
Dedicated Hot Spare.
Creating a RAID Volume Based on Multiple Drive Groups: RAID 00, 10, 50, and 60
Disk spanning allows multiple drive groups to function like one big drive. Spanning overcomes a lack of disk space
and simplifies storage management by combining existing resources or adding relatively inexpensive resources.
Spanning alone does not provide reliability or performance enhancements. Spanned virtual drives must have the
same stripe size and must be contiguous. With spanning, a RAID 1 drive group is turned into a RAID 10 drive
group (Figure 10).
Figure 10. RAID 10
Spanning two contiguous RAID 0 virtual drives does not produce a new RAID level or add fault tolerance. It does
increase the capacity of the virtual drive and improves performance by doubling the number of physical disks.
Table 9 describes how to configure RAID 00, 10, 50, and 60. The virtual drives must have the same stripe size,
and the maximum number of spans is eight. The full drive capacity is used when you span virtual drives.

Cisco UCS C220 M3 Specifications

General

Tcase	70 °C
Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor cache	10 MB
Processor cores	4
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor codename	Sandy Bridge EP
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor manufacturer	Intel
Processor package size	52.5 x 45.0 mm
Processor front side bus	- MHz
Processor boost frequency	2.50 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Graphics & IMC lithography	32 nm
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	2
CPU multiplier (bus/core ratio)	24
Physical Address Extension (PAE)	46 bit
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	750 GB
HDD size	2.5 \
HDD interface	-
Total storage capacity	500 GB
Compatible memory cards	SD
Maximum storage capacity	- TB
Memory slots	16
Internal memory	32 GB
Memory clock speed	1866 MHz
Maximum internal memory	- GB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
Chassis type	Rack (1U)
Power supply	450 W
Safety	UL 60950-1 No. 21CFR1040, CAN/CSA-C22.2 No. 60950-1, IEC 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 2001
Certification	47CFR Part 15 (CFR 47), AS/NZS CISPR22, CISPR2 2, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, CNS13438, EN55024, CISPR24, EN300386, KN24
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 90 %
PCI Express slots version	3.0
Processor ARK ID	64588
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	724 mm
Width	430 mm
Height	43.2 mm
