DescriptionFeature
The supercap power module (SCPM) mounts to the
RAID controller card.
RAID Backup
The optional I/O expander provides two 8x Gen 3
PCIe expansion slots.
PCIe I/O
The system can have one or two system I/O controllers
(SIOCs). These provide rear-panel management and
data connectivity.
• Two SFP+ 40 Gb ports each SIOC.
• One 10/100/1000 Ethernet dedicated
management port on each SIOC.
The server nodes each have one rear-panel KVM
connector that can be used with a KVM cable, which
provides two USB, one VGA DB-15, and one serial
DB-9 connector.
Network and Management I/O
Two or four power supplies, 1050 W each
(hot-swappable and redundant as 2+2).
Power
Four internal fan modules that pull front-to-rear
cooling, hot-swappable. Each fan module contains
two fans.
In addition, there is one fan in each power supply.
Cooling
Front Panel Features

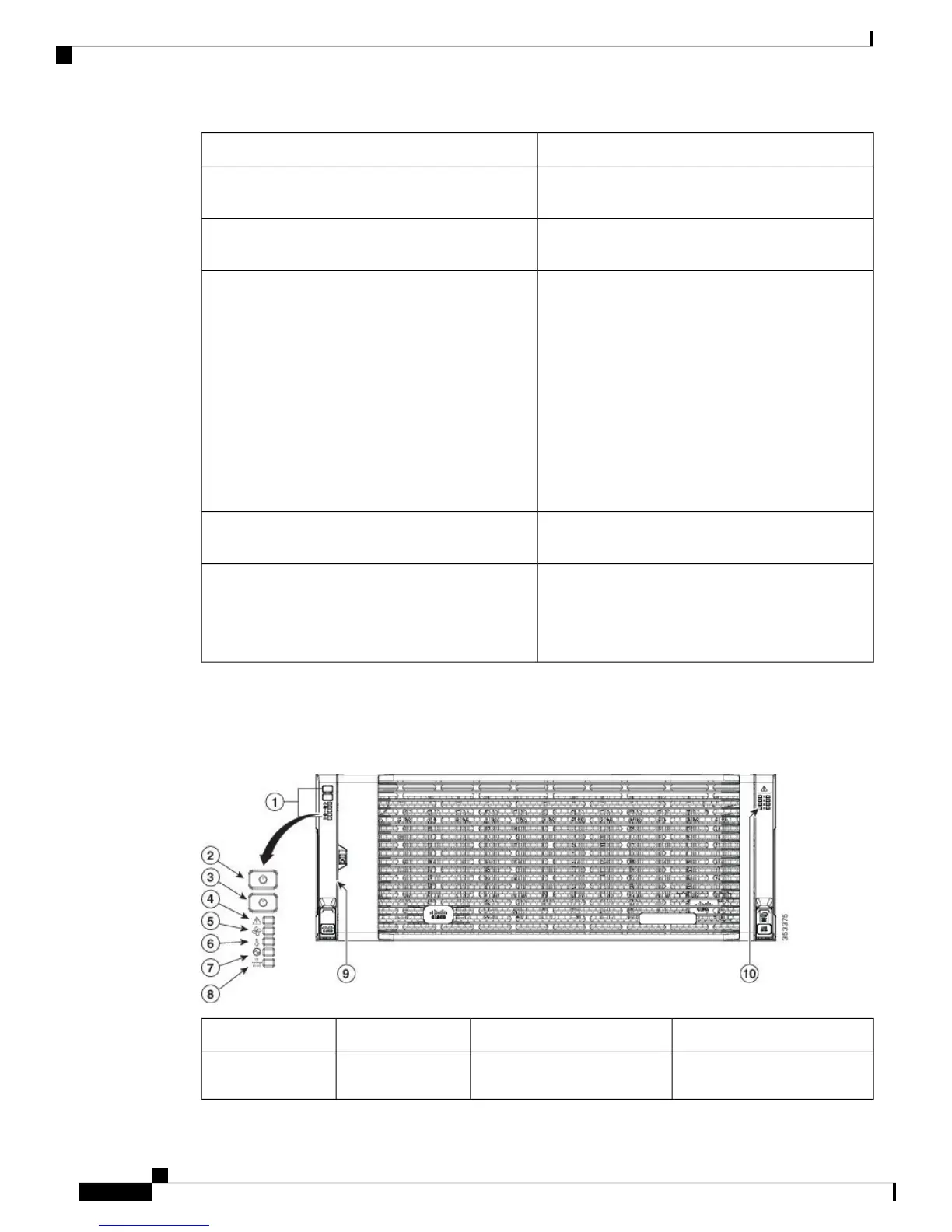

The following image shows the front panel features for the Cisco UCS S3260 system:
Figure 1: Front Panel Features
Temperature status LED6Operations panel1
Power supply status LED7System Power
button/LED
2
Cisco UCS S3260 System Storage Management
2
Cisco UCS S3260 System Storage Management
Storage Server Features and Components Overview
