Cisco UCS S3260 Manual

Network link activity LED8System unit
identification
button/LED
3
Pull-out asset tag (not visible
under front bezel)
9System status LED4
Internal-drive status LEDs10Fan status LED5
Rear Panel Features

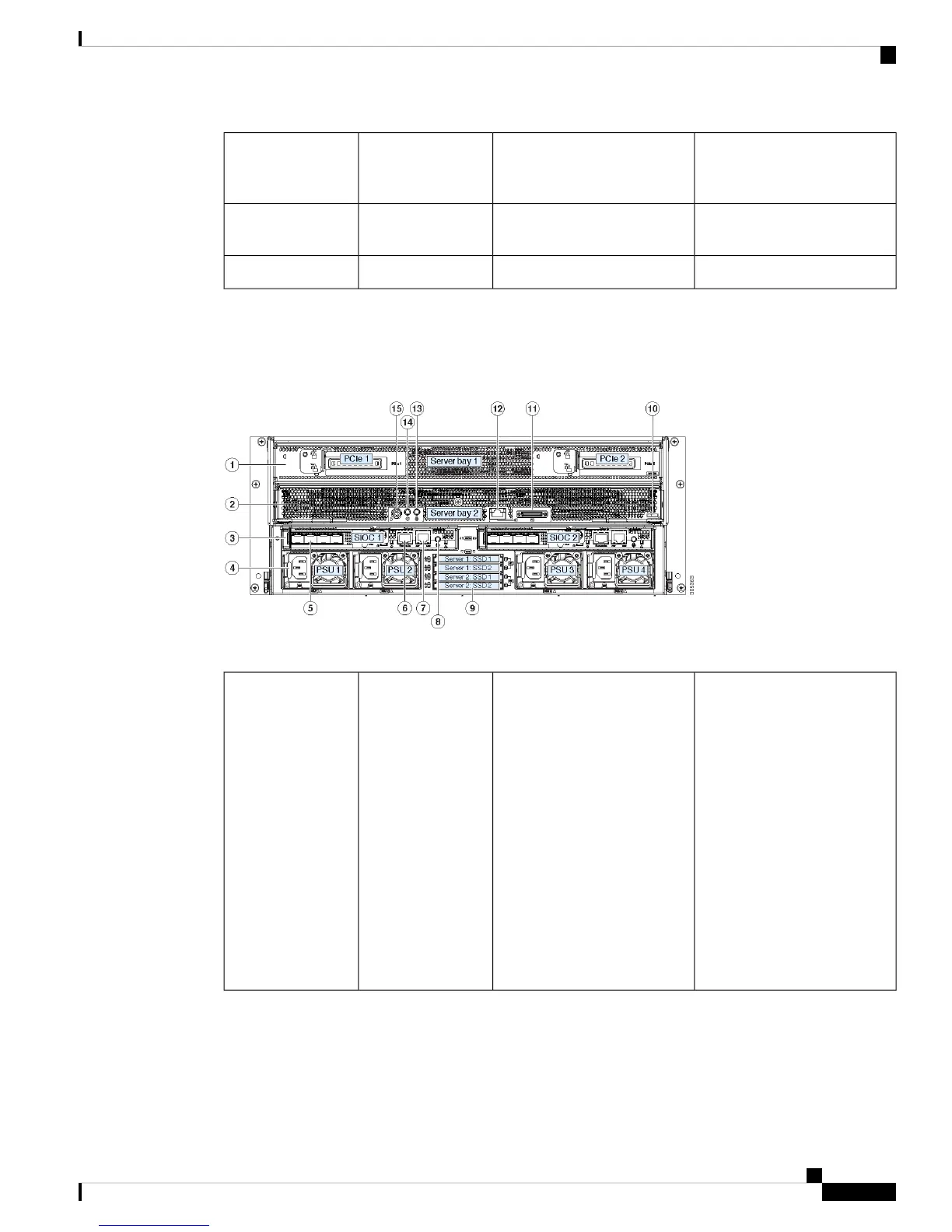

The following image shows the rear panel features for the Cisco UCS S3260 system:
Figure 2: Front Panel Features
Disk Slots
Not used at this time8Server bay 1
• (Optional) I/O
expander, as
shown (with
Cisco UCS
S3260 M4
server node
only)
• (Optional)
server node
• (Optional)
drive
expansion
module
1
Cisco UCS S3260 System Storage Management
3
Cisco UCS S3260 System Storage Management
Storage Server Features and Components Overview

Cisco UCS S3260 Specifications

General

Drive Bays	Up to 56
Maximum Storage Capacity	Up to 600 TB
Power Supply	Up to 4 hot-plug power supplies
Product Type	Storage Server Chassis
Supported Drives	SAS, SATA
Processors	Up to two Intel Xeon Scalable processors
Memory	Up to 1.5 TB DDR4 RAM
Power Supplies	Redundant 80+ Platinum power supplies
Total Drive Bays	56
Management	Cisco UCS Manager
Compatibility	Cisco UCS system
Form Factor	4U rack
