Storage Server Components
Server Nodes
The Cisco UCS S3260 system consists of one or two server nodes, each with two CPUs, DIMM memory of
128, 256, or 512 GB, and a RAID card up to 4 GB cache or a pass-through controller. The server nodes can
be one of the following:
• Cisco UCS S3260 M3 Server Node
• Cisco UCS S3260 M4 Server Node—This node might include an optional I/O expander module that
attaches to the top of the server node.
Disk Slots
The Cisco UCS S3260 chassis has 4 rows of 14 disk slots on the HDD motherboard and 4 additional disk
slots on the HDD expansion tray. The following image shows the disk arrangement for the 56 top-accessible,
hot swappable 3.5-inch 6 TB or 4 TB 7200 rpm NL-SAS HDD drives. A disk slot has two SAS ports and
each is connected a SAS expander in the chassis.

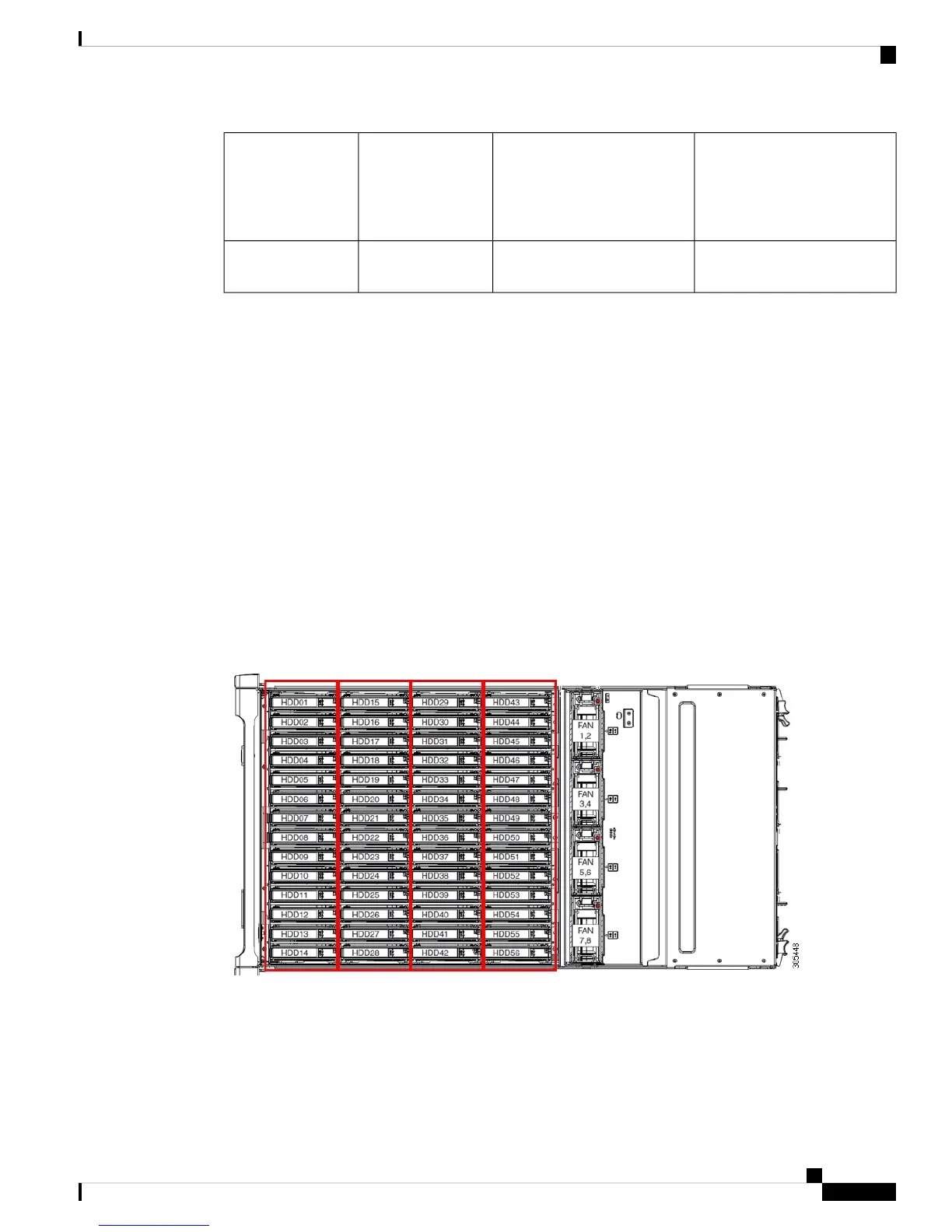

Figure 3: Cisco UCS S3260 Top View
The following image shows the Cisco UCS S3260 chassis with the 4 additional disk slots on the HDD expansion
tray.
Cisco UCS S3260 System Storage Management
5
Cisco UCS S3260 System Storage Management
Storage Server Features and Components Overview

Cisco UCS S3260 Specifications

General

Drive Bays	Up to 56
Maximum Storage Capacity	Up to 600 TB
Power Supply	Up to 4 hot-plug power supplies
Product Type	Storage Server Chassis
Supported Drives	SAS, SATA
Processors	Up to two Intel Xeon Scalable processors
Memory	Up to 1.5 TB DDR4 RAM
Power Supplies	Redundant 80+ Platinum power supplies
Total Drive Bays	56
Management	Cisco UCS Manager
Compatibility	Cisco UCS system
Form Factor	4U rack
