Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM Voice Gateways Hardware Installation Guide

OL-15959-01

Chapter 1 Overview of the Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM Voice Gateways

Physical Description

Note The Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM voice gateways are

fixed-configuration voice gateways and do not support interface cards.

Physical Description

• Front Panel Description, page 1-2

• Back Panel Description, page 1-3

• LEDs, page 1-4

• Product Serial Number Location, page 1-5

Front Panel Description

Figure 1-1 shows the chassis of the Cisco VG202 voice gateway as seen from the front panel.

Note The Cisco VG202 and the Cisco VG202XM chassis are identical. The only difference is the model

number on the front right. On the Cisco VG202 chassis, the faceplate label says VG202. On the

Cisco VG202XM chassis, the faceplate label says VG202XM.

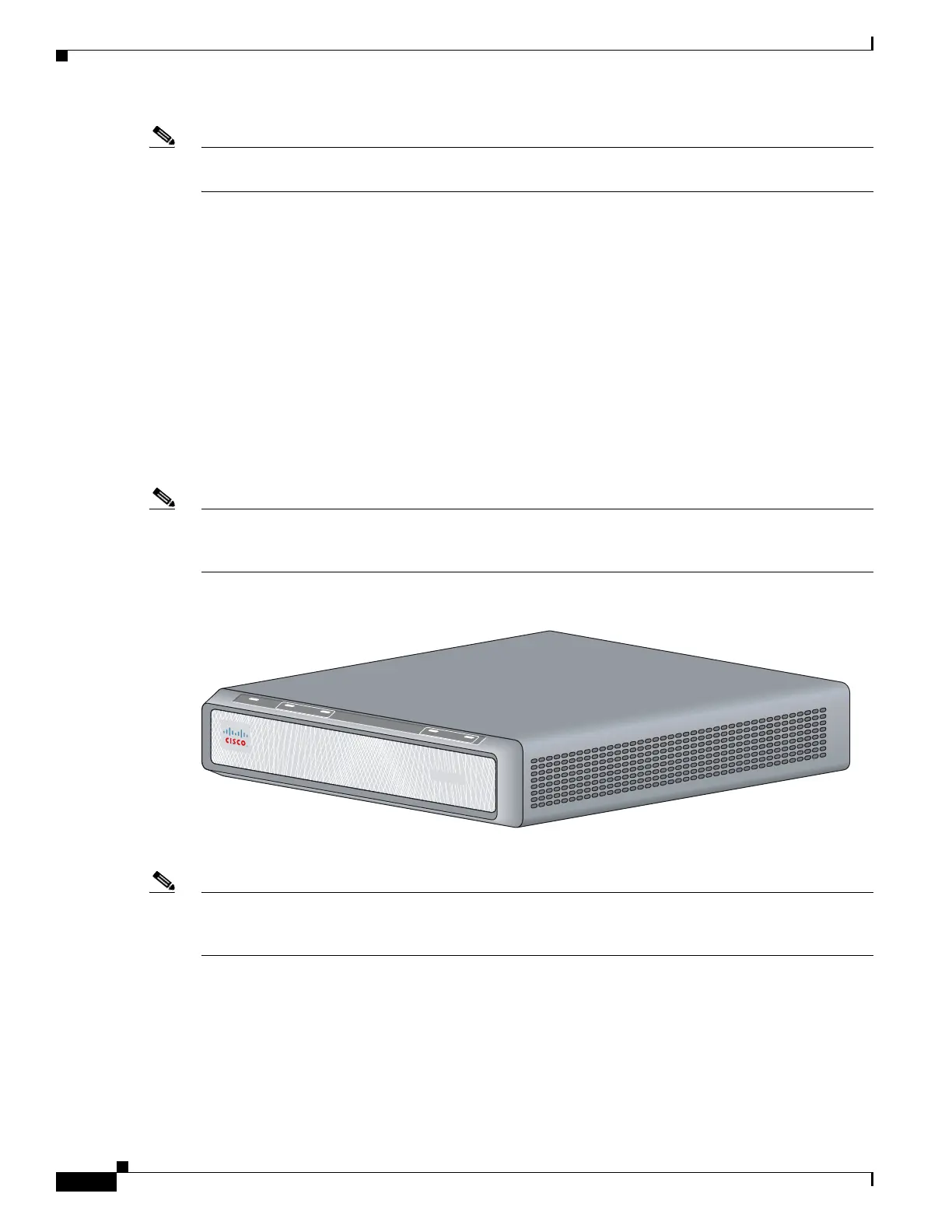

Figure 1-1 Cisco VG202 Chassis Front Panel

Figure 1-2 shows the chassis of the Cisco VG204 voice gateway as seen from the front panel.

Note The Cisco VG204 and the Cisco VG204XM chassis are identical. The only difference is the model

number on the front right. On the Cisco VG204 chassis, the faceplate label says VG204. On the

Cisco VG204XM chassis, the faceplate label says VG204XM.

231877
